Remove/Install Tail Lamp Unit On Trunk Lid - AR82.10-P-4927FR
Model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||

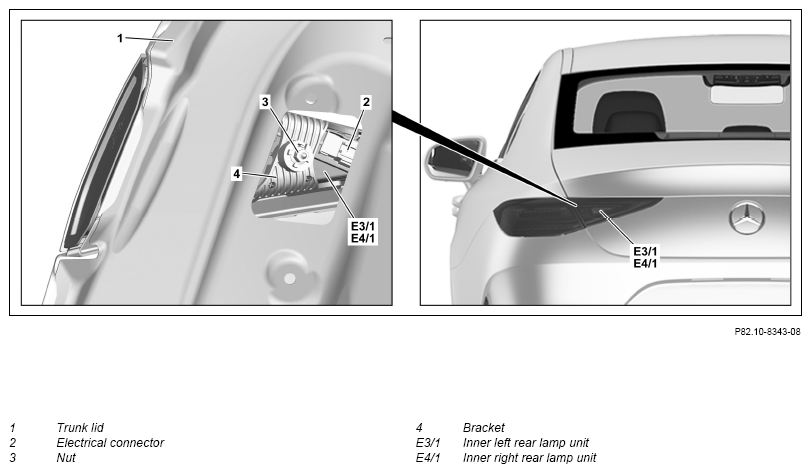

| 1 | Remove panel at trunk lid (1) | AR68.30-P-8151FR | |
| 2 | Unscrew nut (3) | ||
| 3 | Remove rear inner lamp unit (E3/1, E4/1) far enough to gain access to the electrical connector (2) | ||
| 4 | Disconnect electrical connection (2) | ||
| 5 | Remove rear inner lamp unit (E3/1, E4/1) | ||
| 6 | Remove bracket (4) outwards from the trunk lid (1) | ||
| Install | |||
| 7 | Place holder (4) onto rear inner lamp unit (E3/1, E4/1) | ||
| 8 | Screw on nut (3) approx. 4 turns | ||
| 9 | Position rear inner lamp unit (E3/1, E4/1) into installation position and connect electrical connector (2) | ||
| 10 | Insert rear inner lamp unit (E3/1, E4/1) into trunk lid (1) | Do not apply any pressure to the diffuser lens of the rear inner lamp unit (E3/1, E4/1). Otherwise damage may occur. |
|
| 11 | Tighten nut (3) | ||
| 12 | Install panel at trunk lid (1) | AR68.30-P-8151FR |
