Remove/Install TV Antenna Amplifier 3 - AR82.62-P-8314FR

Model 257, 290

with code 865 (digital TV)

Shown on model 257

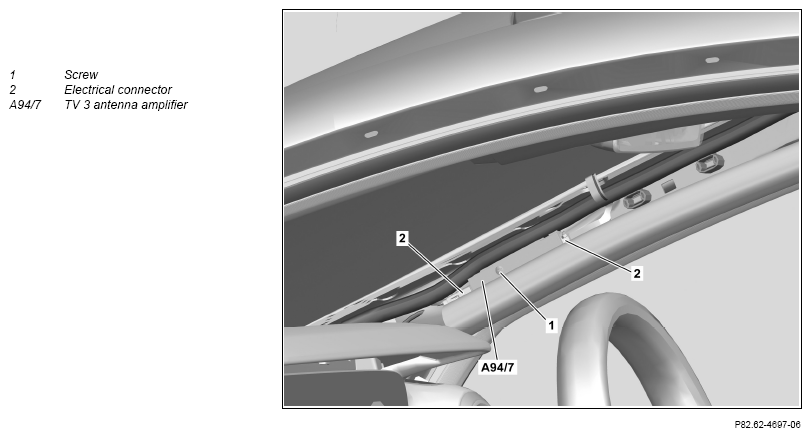

Fig 1: TV Antenna Amplifier 3 Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right A-pillar trim.		AR68.30-P-4050FR
2	Unscrew bolt (1).	The screw/bolt (1) remains on the TV 3 antenna amplifier (A94/7).
3	Unclip TV 3 antenna amplifier (A94/7) on A-pillar and remove far enough to gain access to the electrical connectors (2).
4	Disconnect electrical connectors (2) and remove TV 3 antenna amplifier (A94/7).
5	Install in the reverse order.
