Remove/Install TV Antenna Amplifier 1 - AR82.62-P-8313FR
Model 257
with code 865 (digital TV)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

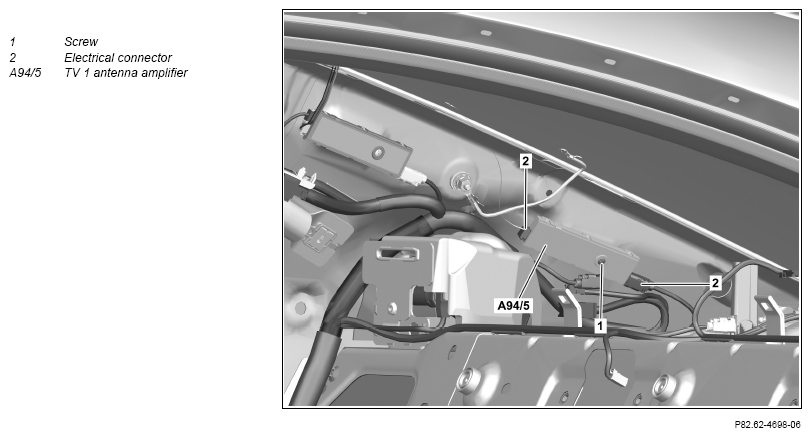

| 1 | Remove paneling on right C-pillar | AR68.30-P-4490FR | |
| 2 | Separate electrical connectors (2) | ||
| 3 | Remove bolt (1) | ||
| 4 | Unclip and remove TV 1 antenna amplifier (A94/5) from C-pillar | ||
| 5 | Install in the reverse order |
