Remove/Install Hose For Windshield Washer System For Windshield - AR82.35-P-6981FR
Model 257, 290
Shown on model 257 with CODE 875 (Heated windshield washer system)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove washer fluid reservoir of windshield washer system. | Model 257, 290 with code 875 (Heated windscreen washer system) |
AR82.35-P-6000FR |

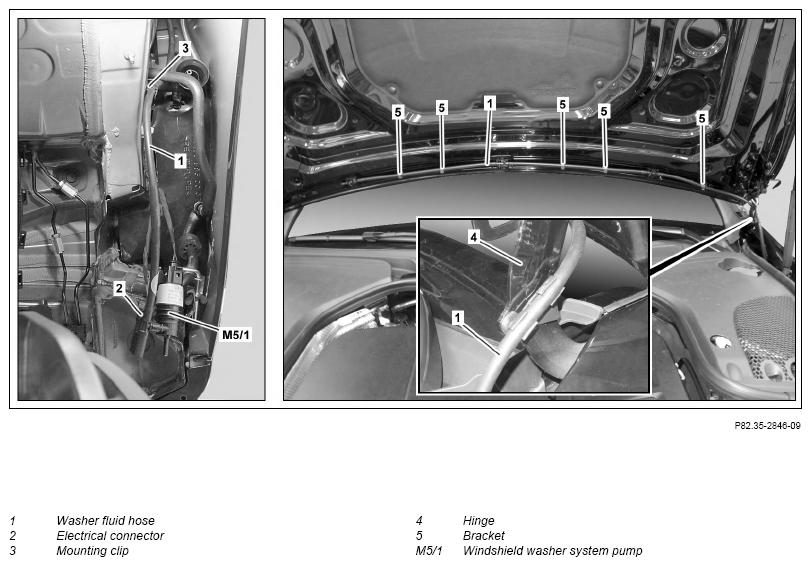

| 2 | Detach washer fluid hose (1) at windshield washer system pump (M5/1). | except code 875 (Heated windscreen washer system) Collect escaping coolant in a suitable vessel. |
|
| 3 | Disconnect electrical connection (2). | Model 257, 290 with code 875 (Heated windscreen washer system) |
|
| 4 | Unclip washer fluid hose (1) from retaining clip (3). | ||
| 5 | Unclip washer fluid hose (1) at hinge (4). | ||
| 6 | Open holders (5). | ||
| 7 | Detach washer fluid hose (1) with spray nozzles from hood. | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check and correct setting of spray nozzles. | ||
| AP82.35-P-8252D |
