Remove/Install Display Cluster Ambient Lighting - AR82.20-P-5583LWE
Model 213, 238, 257
with code 464 (Full display digital instrument cluster)
with code 891 (Premium ambiance illumination)
Model 213, 238
with code 464 (Full display digital instrument cluster)
with code 877 (Ambient lighting)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

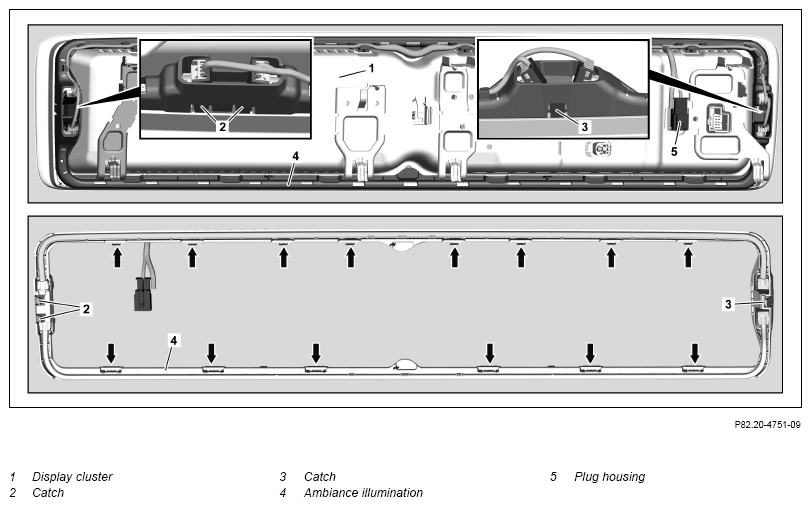

| 1 | Remove display cluster (1) | Model 257 with code 464 (Full display digital instrument cluster) with code 891 (Premium ambiance illumination) |
AR54.30-P-6023FR |
| Model 213, 238 with code 464 (Full display digital instrument cluster) with code 877 (Ambient lighting) Model 213, 238 with code 464 (Full display digital instrument cluster) with code 891 (Premium ambiance illumination) |
AR54.30-P-6023LWE | ||
| 2 | Release connector housing (5) and remove | ||
| 3 | Release ambiance illumination (4) at catches (2) | ||
| 4 | Unclip ambiance illumination (4) from retaining tabs (arrows) | Release ambiance illumination (4), starting at the side of the catches (2) up to the catch (3). Otherwise, the ambiance illumination (4) may be irreparably damaged. |
|
| 5 | Release ambiance illumination (4) at catch (3) and remove | ||
| 6 | Install in the reverse order |
