Remove/Install Antenna Amplifier/Compensator For Telephone - AR82.62-P-0005FR
Model 257, 290
with code 899 (Multifunction telephony)

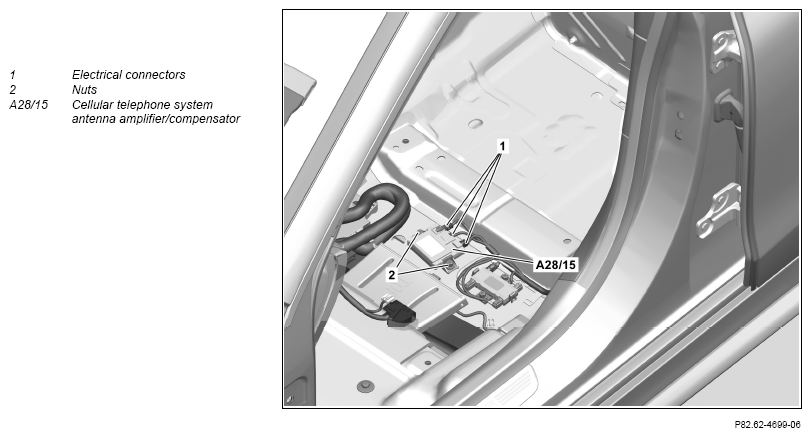

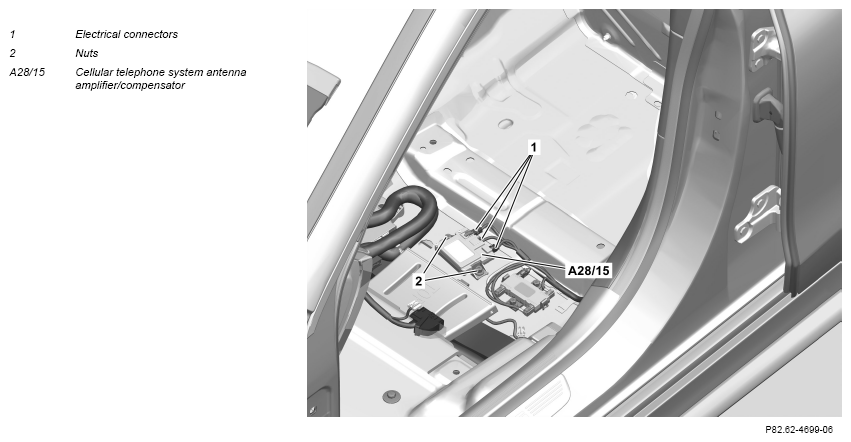

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door sill at front left and rear left. | ||
| 2 | Remove left front seat. | AR91.10-P-1000FR | |
| 3 | Release B-pillar trim at bottom left. | AR68.30-P-4700FR | |
| 4 | Release floor covering at rear left and fold to one side. | ||
| 5 | Unscrew nuts (2). | ||
| 6 | Disconnect electrical connectors (1) and remove cellular telephone system antenna amplifier/compensator (A28/15). | ||
| 7 | Install in the reverse order. |
