Remove/Install Rear Center Section Cover - AR68.30-P-4786FR
Model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid | ||

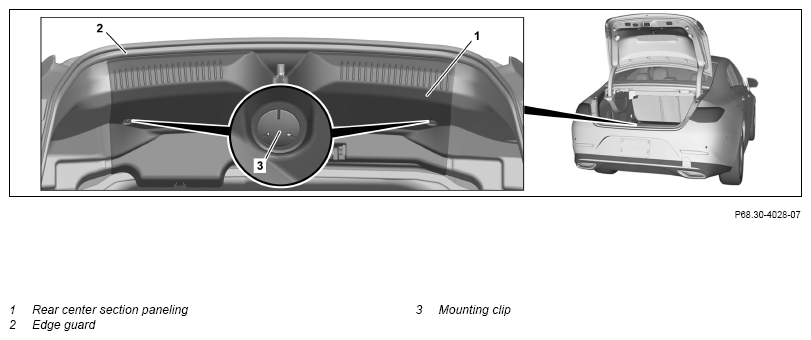

| 2 | Detach edge guard (2) in area of rear-end center-section trim (1) | ||
| 3 | Remove mounting clips (3) | Fig 1 | |
| 4 | Lift trunk floor | ||

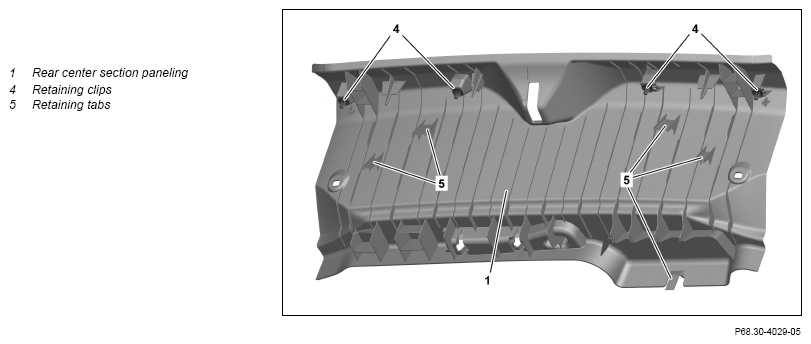

| 5 | Unclip rear center section paneling (1) from mounting clips (4) | ||
| 6 | Remove rear center section (1) upward | ||
| 7 | Install in the reverse order |
