Remove/Install Outside Mirror Trim - AR88.70-P-9040FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

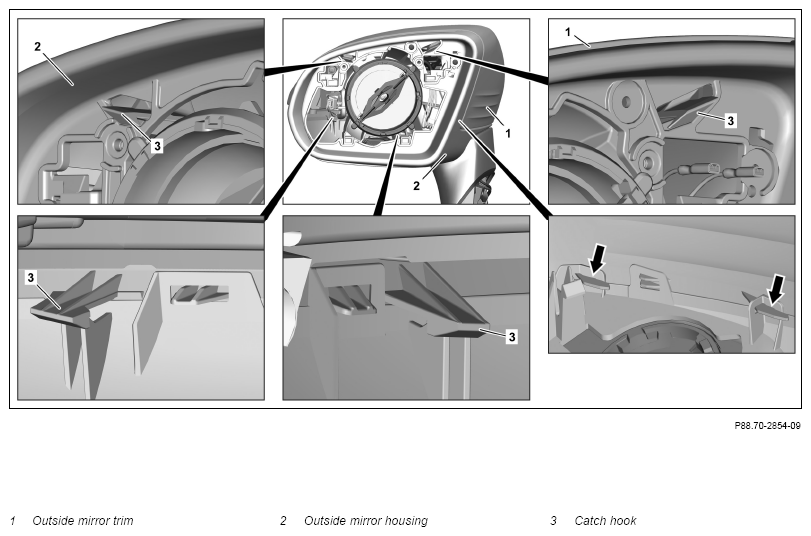

Shown on removed left outside mirror

	Remove/install
1	Remove mirror lens.		AR88.70-P-9020FR
2	Release catch hooks (3) and remove outside mirror trim (1) toward the front from the outside mirror housing (2).	Move guides (arrows) on outside mirror paneling (1) at inside into outside mirror housing (2).
3	Install in the reverse order.
