Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01A
Model 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 240, 242, 245, 246, 247, 251, 253, 254, 257, 290, 292, 295, 297
Model 167
except code M036 (Maybach version)
Model 167
with code M036 (Maybach version)
Running boards not installed
Model 223
except code Z07 (B7 armoring on special protection version)
Model 450, 451, 452, 453, 454
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | |
| 000 588 00 80 00 Vehicle lift | WS00.00-P-0040B |
Shown on model 213
- Model 117, 118, 156, 164, 166, 171, 172, 176, 177, 203, 204, 205, 206, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 231, 238, 242, 246, 247, 251, 253, 254, 257, 290, 292, 295, 297; model 167 except code M036 (Maybach version); model 167 with code M036 (Maybach version) running boards not installed; model 223 except code Z07 (B7 armoring in special protection version) Attach
adapters (1).
Only if the longitudinal member panel is removed.

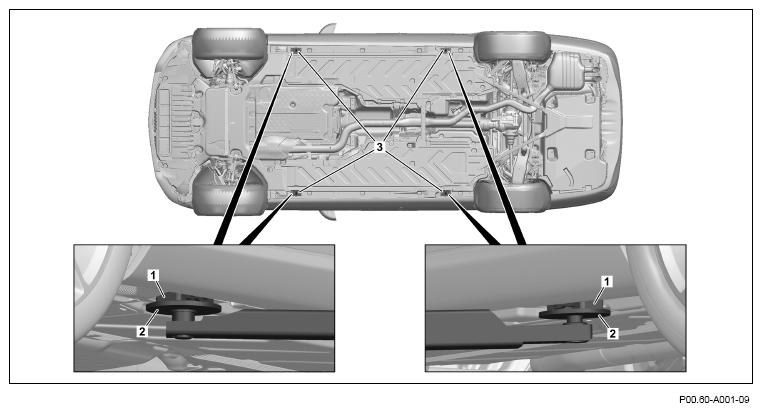

- Turn support plate (2) of support arms of vehicle lift until these make contact with adapters (1) or vehicle lift support points (3).
- Lift vehicle with lifting platform.
