Bring Up Workshop Level On Instrument Cluster - AP00.20-P-0046B

Model 167, 253.99, 257, 290, 293

Model 205

as of model year 2019

Model 213, 238

with code 800 (Model year 2020)

Model 213, 238

with code 807 (Model year 2017)

Model 213, 238

with code 808 (Model year 2018)

Model 213, 238

with code 809 (Model year 2019)

Model 213

with code 806 (Model year 2016)

Model 222

as of model year 2018

Shown on model 213.0

Courtesy of MERCEDES-BENZ USA

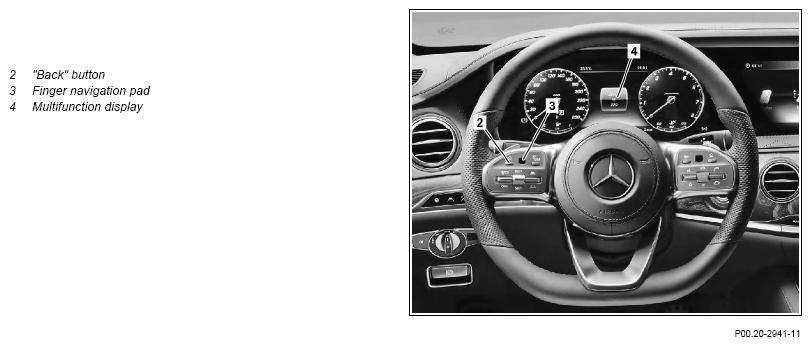

Shown on model 222.0 as of model year 2018

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Switch electronic ignition lock control unit to position "1" (circuit 15R).	There must be no fault messages shown on the multifunction display (4).
	Open workshop level
2	Use swipe movements on the finger navigation pad (3) to select the "Trip" menu item in the multifunction display (4).
3	Use swipe movements on the finger navigation pad (3) in the "Trip" menu to select the standard "Total distance" display in the multifunction display (4).
4	Press and hold "Back" (2) button for 1.5 s and press on finger navigation pad (3).	The multifunction display (4) shows the Workshop menu with the tabs: "Vehicle data", "Dynamometer test", "Brakepad change mode" or "Brakepad change", "ASSYST PLUS", "Head-up-display" (depending on equipment installed).
	Close workshop level
5	Press Back" button (2) again until the workshop entry menu is shown on the multifunction display (4).
6	Use swipe movements on the finger navigation pad (3) to select and confirm the "Trip" menu item.
	Finishing activity
7	Switch electronic ignition lock control unit to position "0".
