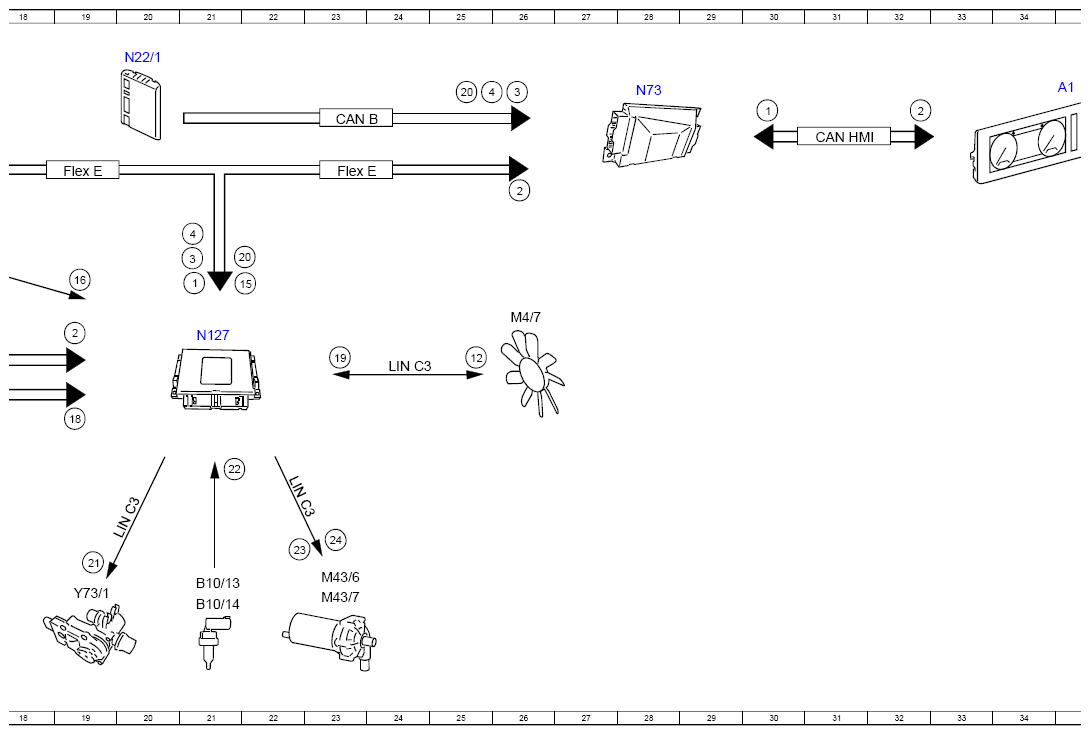

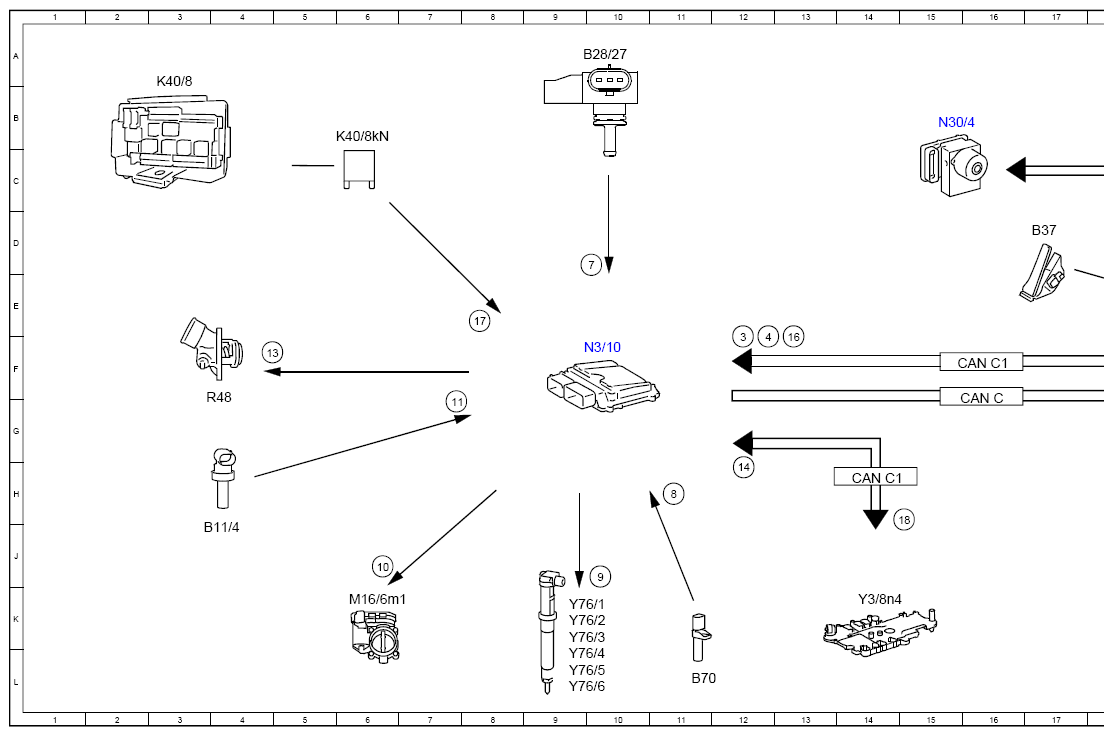

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97XBB

Engine 256.9 in model 257, 290 up to model year 2021

Code: Designation: Position:
1 Vehicle speed, signal 21E
1 Vehicle speed, signal 30B
10 Throttle valve actuator motor, actuation 6J
11 Coolant temperature sensor, signal 7G
12 Fan motor, specified rpm request 25F
13 Coolant thermostat heating element, actuation 4F
14 Transmission control, signal 12H
15 Wheel speed, signal 22E
16 Accelerator pedal sensor, signal 13F
16 Accelerator pedal sensor, signal 19E
17 Circuit 87, status 8E
18 Engine running, signal 15H
18 Engine running, signal 19G
19 Fan motor, status 23F
2 Instrument cluster, message 19F
2 Instrument cluster, message 26C
2 Instrument cluster, message 32B
20 Fan motor, request 21D
20 Fan motor, request 25B
21 Low-temperature circuit switchover valve, actuation 19K
22 Low-temperature circuit temperature sensor, signal 21G
23 Low temperature circuit circulation pump 1, request 22J
24 Low temperature circuit circulation pump 2, actuation 23J
3 Air conditioning, status 12F
3 Air conditioning, status 21D
3 Air conditioning, status 26B
4 Outside temperature, signal 12F
4 Outside temperature, signal 21D
4 Outside temperature, signal 25B
7 Engine load, signal 10D
8 Engine speed, signal 11H
9 Fuel injectors, actuation 10J
A1 Instrument cluster 35B
B10/13 Low-temperature circuit temperature sensor 21K
B10/14 Low-temperature circuit temperature sensor 2 21K
B11/4 Coolant temperature sensor 4J
B28/27 Pressure and temperature sensor downstream of throttle valve 10A
B37 Accelerator pedal sensor 17D
B70 Crankshaft Hall sensor 11L
CAN B Interior CAN 23B
CAN C Engine CAN 16G
CAN C1 Drive train CAN 14H
CAN C1 Drive train CAN 16F
CAN HMI User interface CAN 31B
Flex E Chassis FlexRay 23C
Flex E Chassis FlexRay 19C
K40/8 Engine fuse and relay module 3A
K40/8kN Circuit 87M relay 6B
LIN C3 Drivetrain LIN 24F
LIN C3 Drivetrain LIN 22H
LIN C3 Drivetrain LIN 20H
M16/6m1 Throttle valve actuator motor 6K
M4/7 Fan motor 26E
M43/6 Low temperature circuit circulation pump 1 23J
M43/7 Low temperature circuit circulation pump 2 23K
N127 Drivetrain control unit 21F
N22/1 Climate control control unit 20A
N3/10 ME-SFI [ME] control unit 10F
N30/4 Electronic Stability Program control unit 15B
N73 Electronic ignition switch control unit 28B
R48 Coolant thermostat heating element 3G
Y3/8n4 Fully integrated transmission control electric controller unit control unit 14K
Y73/1 Low-temperature circuit switchover valve 19K
Y76/1 Cylinder 1 fuel injector 9K
Y76/2 Cylinder 2 fuel injector 9K
Y76/3 Cylinder 3 fuel injector 9K
Y76/4 Cylinder 4 fuel injector 9L
Y76/5 Cylinder 5 fuel injector 9L
Y76/6 Cylinder 6 fuel injector 9L
