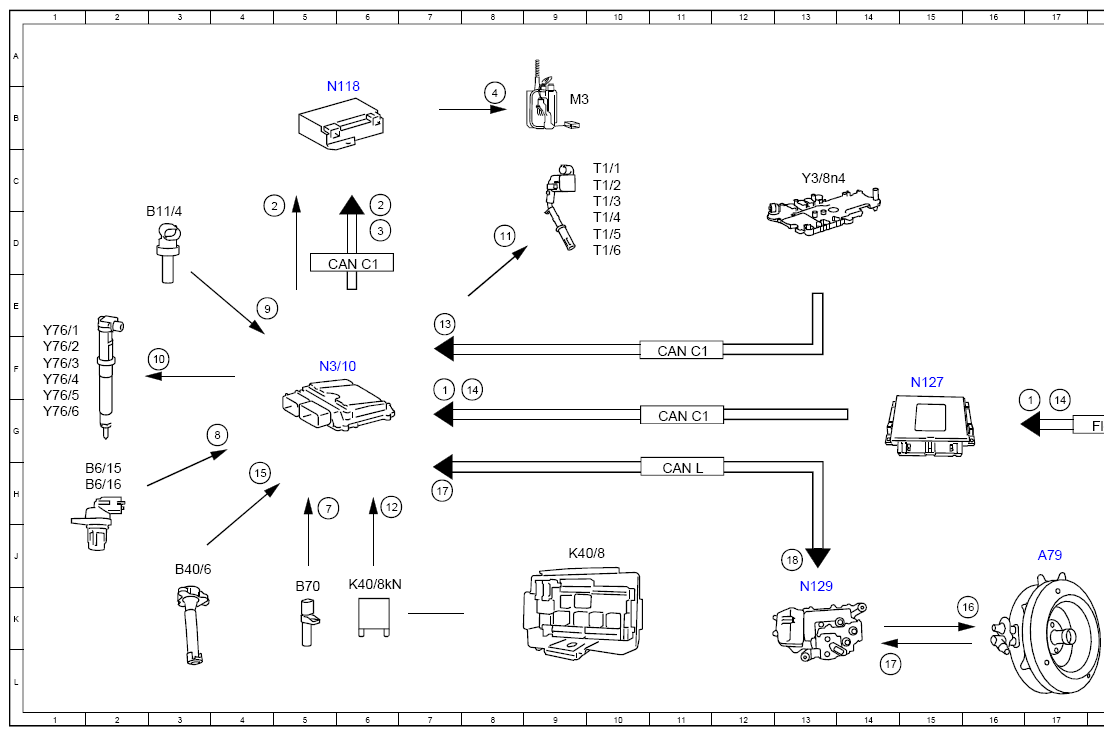

Electrical Function Schematic For Starting - PE07.10-P-2701-97XBB
Engine 256.9 in model 257, 290 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 17G |
| 1 | Circuit 50, status | 7F |
| 10 | Fuel injectors, actuation | 3F |
| 11 | Ignition coils, actuation | 8D |
| 12 | Circuit 87, status | 6H |
| 13 | Gear range, status | 7E |
| 14 | KEYLESS-GO start/stop button, status | 8F |
| 14 | KEYLESS-GO start/stop button, status | 17G |
| 14 | KEYLESS-GO start/stop button, status | 21E |
| 15 | Oil level, signal | 4H |
| 16 | Starter generator, actuation | 15K |
| 17 | Starter-alternator, status | 7H |
| 17 | Starter-alternator, status | 14L |
| 18 | Starter-alternator, request | 13J |
| 2 | Fuel pump, request ON | 4C |
| 2 | Fuel pump, request ON | 6C |
| 3 | Fuel pump, specified pressure request | 6D |
| 4 | Fuel pump, actuation | 8B |
| 7 | Engine speed, signal | 5H |
| 8 | Camshaft Hall sensor, signal | 4G |
| 9 | Coolant temperature sensor, signal | 4E |
| A79 | Integrated starter generator | 17J |
| B11/4 | Coolant temperature sensor | 3D |
| B40/6 | Engine oil fill level sensor | 3J |
| B6/15 | Intake camshaft Hall sensor | 1H |
| B6/16 | Exhaust camshaft Hall sensor | 1H |
| B70 | Crankshaft Hall sensor | 5K |
| CAN C1 | Drive train CAN | 11G |
| CAN C1 | Drive train CAN | 6D |
| CAN C1 | Drive train CAN | 11F |
| CAN L | Hybrid CAN | 11H |
| Flex E | Chassis FlexRay | 18G |
| K40/8 | Engine fuse and relay module | 9J |
| K40/8kN | Circuit 87M relay | 6K |
| M3 | Fuel pump (FP) | 9B |
| N118 | Fuel pump control unit | 6B |
| N127 | Drivetrain control unit | 15F |
| N129 | Starter generator control unit | 13K |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N73 | Electronic ignition switch control unit | 21F |
| S2/3 | KEYLESS GO start/stop button | 21B |
| T1/1 | Cylinder 1 ignition coil | 10C |
| T1/2 | Cylinder 2 ignition coil | 10C |
| T1/3 | Cylinder 3 ignition coil | 10C |
| T1/4 | Cylinder 4 ignition coil | 10D |
| T1/5 | Cylinder 5 ignition coil | 10D |
| T1/6 | Cylinder 6 ignition coil | 10D |
| Y3/8n4 | Fully integrated transmission control electric controller unit control unit | 13C |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1G |
| Y76/6 | Cylinder 6 fuel injector | 1G |
