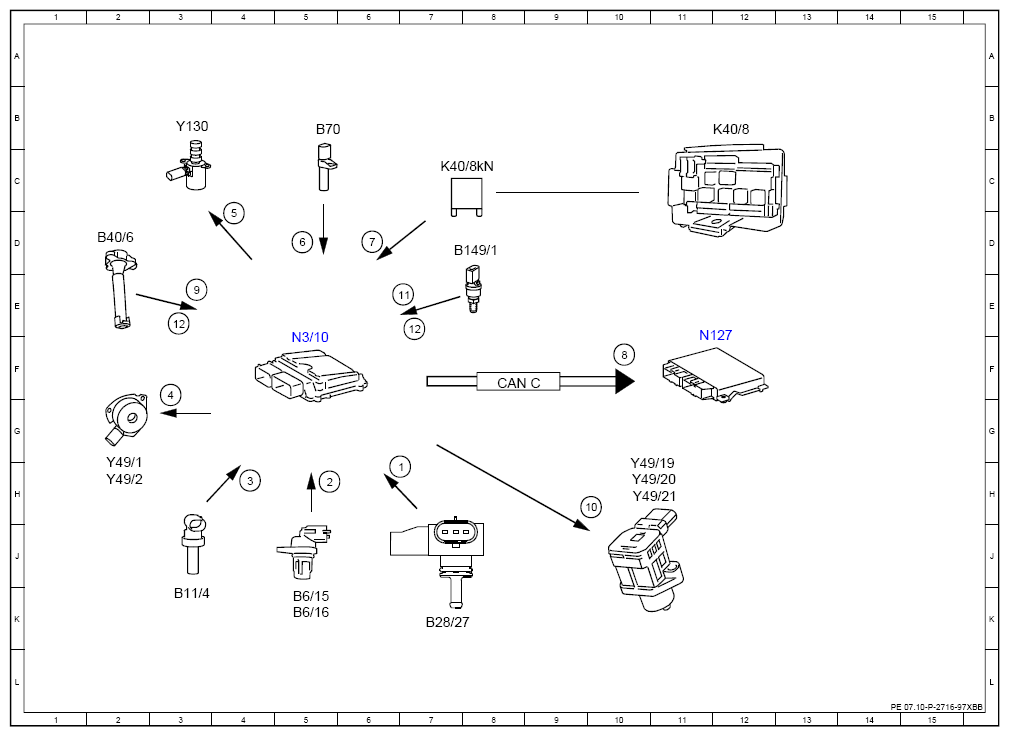

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97XBB
Engine 256.9 in model 257, 290 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6H |
| 10 | CAMTRONIC actuator, actuation | 10H |
| 11 | Engine oil pressure sensor, signal | 6E |
| 12 | Engine oil temperature, signal | 3E |
| 12 | Engine oil temperature, signal | 7E |
| 2 | Camshaft Hall sensor, signal | 5H |
| 3 | Coolant temperature sensor, signal | 4H |
| 4 | Camshaft solenoids, actuation | 3F |
| 5 | Engine oil pump valve, actuation | 4D |
| 6 | Engine speed, signal | 5D |
| 7 | Circuit 87, status | 6D |
| 8 | Engine running, signal | 10F |
| 9 | Oil level, signal | 3E |
| B11/4 | Coolant temperature sensor | 3K |
| B149/1 | Engine oil pressure and temperature sensor | 7D |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 7K |
| B40/6 | Engine oil fill level sensor | 2D |
| B6/15 | Intake camshaft Hall sensor | 5K |
| B6/16 | Exhaust camshaft Hall sensor | 5K |
| B70 | Crankshaft Hall sensor | 5B |
| CAN C | Engine CAN | 8F |
| K40/8 | Engine fuse and relay module | 12B |
| K40/8kN | Circuit 87M relay | 7C |
| N127 | Drivetrain control unit | 11F |
| N3/10 | ME-SFI [ME] control unit | 5F |
| Y130 | Engine oil pump valve | 3B |
| Y49/1 | Intake camshaft solenoid | 2H |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 10H |
| Y49/2 | Exhaust camshaft solenoid | 2H |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 10H |
| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 10H |
