Perform Resistance Measurement Of Coils Of Integrated Starter Alternator - AR15.40-P-0003-04MRT
Engine 256.9
MODIFICATION NOTES
| 11.11.2020 | Use a 4-way milliohm meter to prevent incorrect measurements. |
TEST SPECIFICATIONS OF INTEGRATED STARTER ALTERNATOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BE15.40-P-1002-06MRT | Measurement of phase resistances | Resistances of phases U-V, V-W, W-U | mΩ | 9, 1 ±0, 3 |
| Resistances of phases X-Y, Y-Z, Z-X | mΩ | 8, 7 ±0, 3 | ||
| For picture, see | AR15.40-P-0003-04MRT | |||

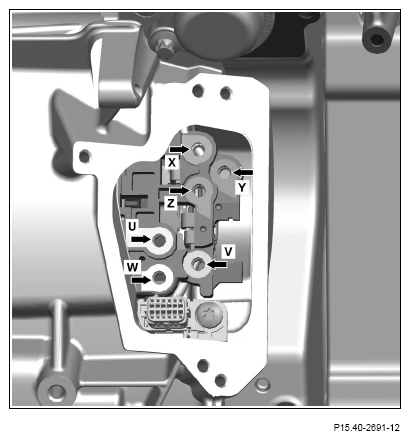

18 coils are connected, in each case, in star arrangement in phases (U), (V), (W) and (X), (Y), (Z).
The phase resistance must be measured with a 4-way milliohm meter to prevent incorrect measurements.
- Perform 3 resistance measurements in phases (U) - (V), (V) - (W) and (W) - (U) and compare with specified value.
- Perform 3 resistance measurements in phases (X) - (Y), (Y) - (Z) and (Z) - (X) and compare with specified value.
If a coil connection is damaged, the overall resistance will increase or decrease.
If the measurement values lie outside the tolerance: Replace the integrated starter alternator.
