Determine Integrated Starter Alternator Gap Between Stator And Rotor - AR15.40-P-0003-03MRT
Engine 256.9
TEST SPECIFICATIONS OF INTEGRATED STARTER ALTERNATOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BE15.40-P-1001-06MRT | Clearance measurement | Gap between stator and rotor | mm | 0, 9 |

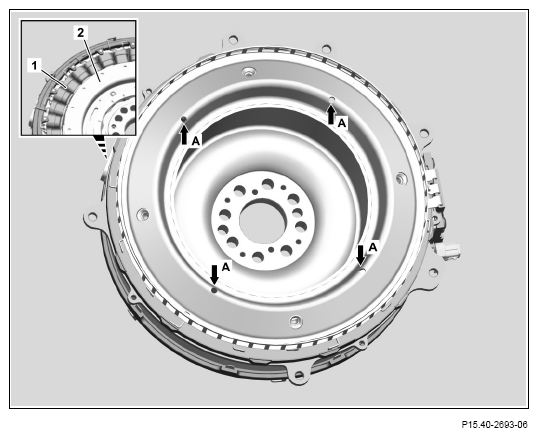

Perform air gap measurement to determine distance between stator (1) and rotor (2) with a non-magnetic, round feeler gauge
The gauge length must be at least 115 mm.
- The measurement is performed at four locations in the air gap between the stator (1) and rotor (2). The measurement must be performed through the 4 bores (arrows A) in the assembly aid.
The specified measurement value must be complied with at all four measuring points (arrows A).
