Detach/Attach Tool For Installation/Removal Of Integrated Starter Alternator - AR15.40-P-0003-05MRT
Engine 256.9
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | ||
|---|---|---|---|---|
| BA15.40-P-1001-02MRT | Bolt, stator housing to timing case | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 60 | ||
STARTER-ALTERNATOR
| Number | Designation | Engine 256 | ||
|---|---|---|---|---|
| BA15.40-P-1003-02MRT | Bolt, integrated starter alternator to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
When releasing screws (4), fix crankshaft in place with
counterholder.
The stator and rotor must be fixed in position.
Otherwise, integrated starter alternator (A79) is damaged.

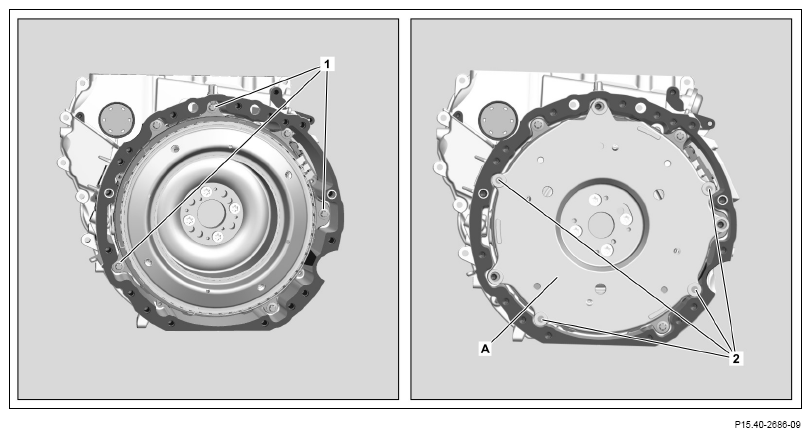

- Remove bolt (1)
- Attach assembly tool (A) with flattened surface facing upwards.
- Tighten assembly screws (2) of assembly tool (A) on stator.

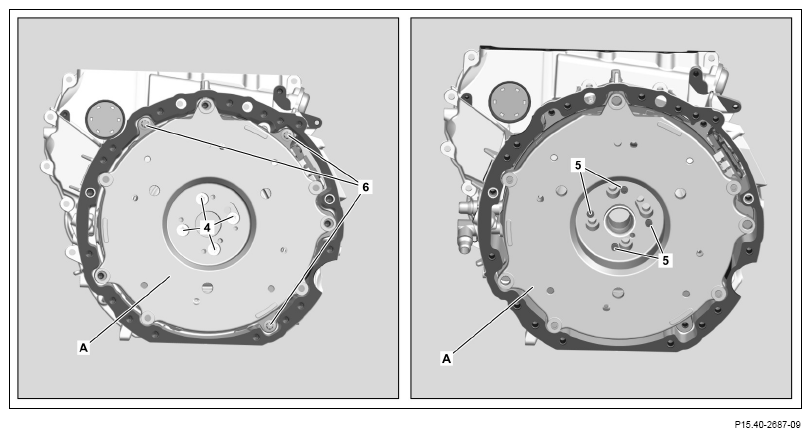

- Screw in assembly screws (5) of assembly tool (A).
Remove assembly tool (A) only after screwing the integrated starter alternator (A79) to the engine.
Integrated starter alternator (A79) will otherwise be damaged.
- Remove bolts (4)
- Remove assembly tool (A) in reverse order.
