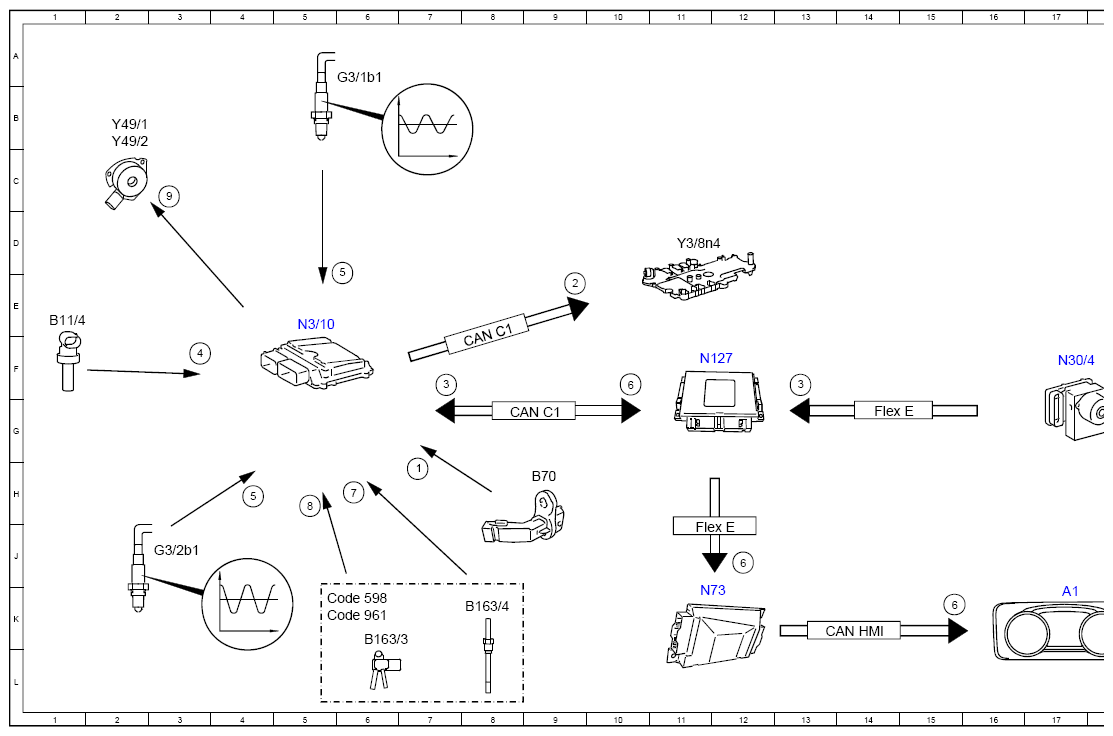

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97XBB
Electric vehicles and hybrid vehicles
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 7H |
| 2 | Shift point, increase request | 9E |
| 3 | Wheel speed, signal | 7F |
| 3 | Wheel speed, signal | 13F |
| 4 | Coolant temperature sensor, signal | 3F |
| 5 | Oxygen sensor sensor element, signal | 4H |
| 5 | Oxygen sensor sensor element, signal | 6E |
| 6 | Engine diagnosis fault message, request | 10F |
| 6 | Engine diagnosis fault message, request | 12J |
| 6 | Engine diagnosis fault message, request | 15K |
| 7 | Temperature sensor upstream of gasoline particulate filter, signal | 6H |
| 8 | Gasoline particulate filter differential pressure sensor, signal | 5H |
| 9 | Camshaft solenoids, actuation | 3C |
| A1 | Instrument cluster | 17K |
| B11/4 | Coolant temperature sensor | 1E |
| B163/3 | Gasoline particulate filter differential pressure sensor | 6K |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 8K |
| B70 | Crankshaft Hall sensor | 9H |
| CAN C1 | Drive train CAN | 8F |
| CAN C1 | Drive train CAN | 9G |
| CAN HMI | User interface CAN | 14K |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 5K |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 5K |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 11J |
| G3/1b1 | Sensor element of oxygen sensor downstream of catalytic converter | 6A |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 3J |
| N127 | Drivetrain control unit | 11F |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 17F |
| N73 | Electronic ignition switch control unit | 11K |
| Y3/8n4 | Fully integrated transmission control electric controller unit control unit | 11D |
| Y49/1 | Intake camshaft solenoid | 2B |
| Y49/2 | Exhaust camshaft solenoid | 2B |
