Remove/Install Intake Camshaft Adjustment Solenoid - AR05.20-P-7305MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove/install | |||
| 1 | Remove engine air intake duct downstream of air filter. | AR09.10-P-8130MSA | |

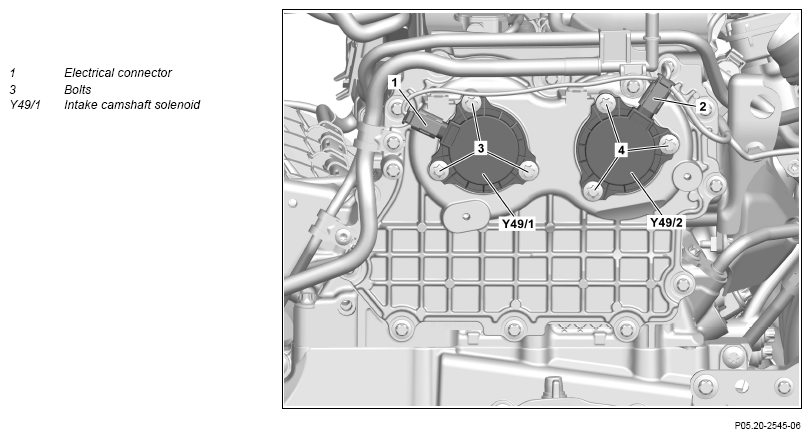

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unscrew the screws (3) and remove solenoid of intake camshaft (Y49/1). | ||
| *BA15.10-P-1003-03I | |||
| 4 | Install in the reverse order. | ||
| Check | |||
| 5 | Read out and delete fault memory. | ||
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 7 | Install upper engine cover. | AR01.10-P-2405MSA |
POSITION SENSOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA15.10-P-1003-03I | Bolt, camshaft solenoid to timing case cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 60 | ||
