Notes On The Application Of Sealing Compound Of The Camshaft Case - AH05.20-P-6995-02BK
Engine 254.9
Engine 256.9
Engine 266.980 in model 169.0/3, 245.2
General information:
- The sealing surface must be:
- Free of anticorrosion agents
- Free of machining residue
- Dry
- Oil and grease-free
- Dust-free
- The sealing surface must be flat (replace bent components)
- The sealant bead must not be interrupted during application.
- The sealant bead must not be spread.
- Assembly part temperature: min. +7°C to max. +25°C
- Sealant temperature: min. +7°C to max. +25°C
- Maximum assembly time: 7 minutes

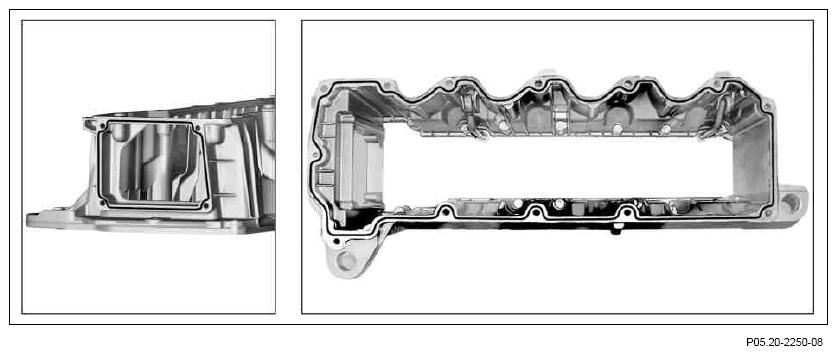

Engine 266
Apply sealant as shown in the form of a bead with a height and width of 1.5 mm + 0.5 mm.

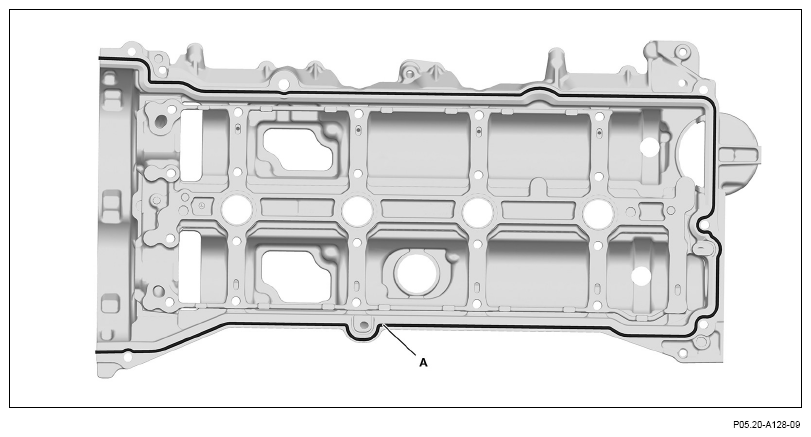

Engine 256.9
The line (A) identifies the sealant run.
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 2.5 mm (+0.5 mm).
Nozzle diameter: 2.5 mm

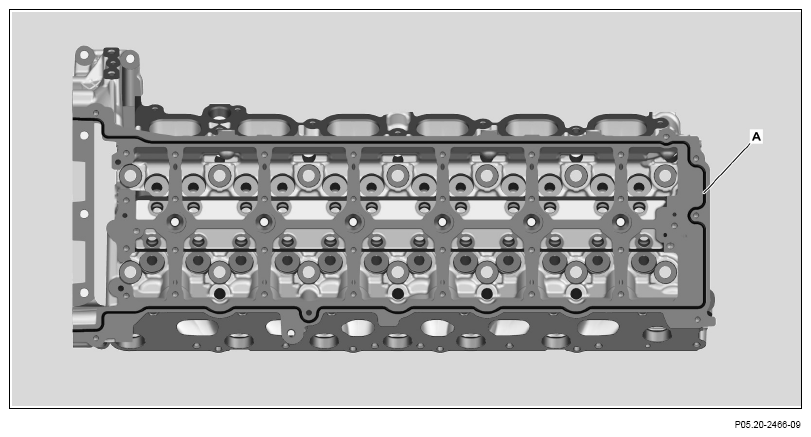

Engine 254.9
The line (A) identifies the sealant run.
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 3.0 mm (+1.0 mm).
Nozzle diameter: 3.0 mm
