Remove/Install Wide Open Throttle Vent Line - AR01.20-P-0020MSA
Engine 256.9 in model 213, 238, 257, 290

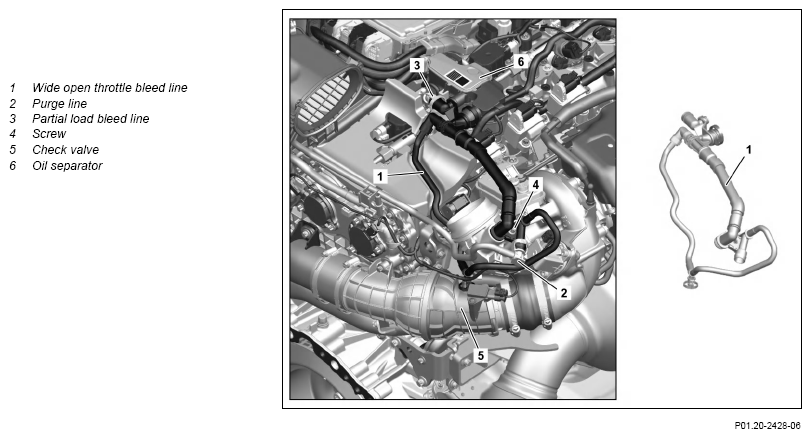

Shown on M256.9 with code M016 (performance-enhanced engine)
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove engine air intake duct downstream of air filter housing. | AR09.10-P-8130MSA | |
| 2 | Remove front noise insulation. | ||
| 3 | Remove screw (4). | *BA01.20-P-1014-01L | |
| 4 | Remove purge line (2) from full load bleed line (1). | ||
| 5.1 | Remove full load bleed line (1) from charge air line. | Engine 256.9 in model 257 except code M016 (Uprated engine) |
|
| 5.2 | Remove full load bleed line (1) from check valve (5). | Engine 256.9 in model 257 with code M016 (Uprated engine) |
|
| 6 | Remove partial load bleed line (3) from full load bleed line (1). | ||
| 7 | Remove full load bleed line (1) from oil separator (6). | ||
| 8 | Remove full load bleed line (1) from exhaust gas turbocharger and take out. | ||
| 9 | Install in the reverse order. |
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA01.20-P-1014-01L | Bolt, breather adapter to exhaust gas turbocharger | Nm | 8 |
