Remove/Install Engine Oil Separator - AR01.20-P-9750MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MSA | |
| 2 | Remove front noise insulation. | ||

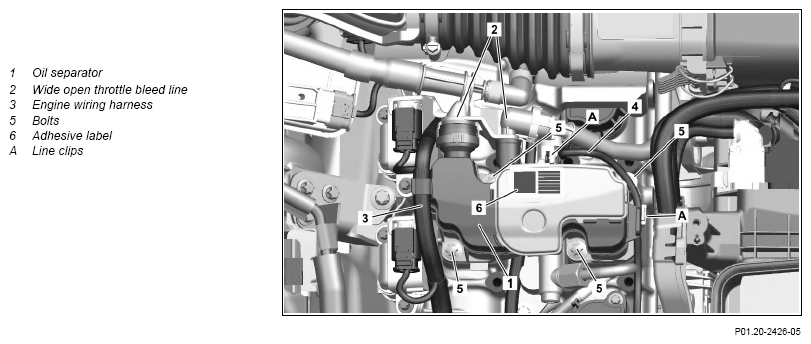

| 3 | Remove engine wiring harness (3) and line clips (A) from oil separator (1) and place to one side. | ||
| 4 | Remove full load bleed line (2) from oil separator (1) and seal openings with suitable stop plugs. | Fig 2 | |
| 5 | Remove screws (5). | *BA01.20-P-1003-01L | |
| 6 | Remove oil separator (1) and seal openings with a lint-free rag. | ||
| 7 | Remove adhesive label (6). | When installing a new oil separator (1). | |
| Clean | |||
| 8 | Clean sealing surfaces. | ||
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Check engine oil level and correct. | ||
| Engine 256.9 in model 213, 238, 290 | AP18.00-P-1812MKI | ||
| Engine 256.9 in model 257 | AP18.00-P-1812BKI | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 12 | Install upper engine cover. | AR01.10-P-2405MSA |
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA01.20-P-1003-01L | Screw/bolt, oil separator to cylinder head cover | Nm | 8 |
