Bolt Plan For Timing Case Cover - AR01.40-P-8000-01MTR
Engine 256.9
CRANKCASE, TIMING CASE, END COVER
| Number |
Designation |
Engine 256.9 |
| BA01.40-P-1002-03MRT |
Bolt, timing case to crankcase |
Stage 1 |
Nm |
8 |
| Stage 2 |
Nm |
20 |
 Courtesy of MERCEDES-BENZ USA
|

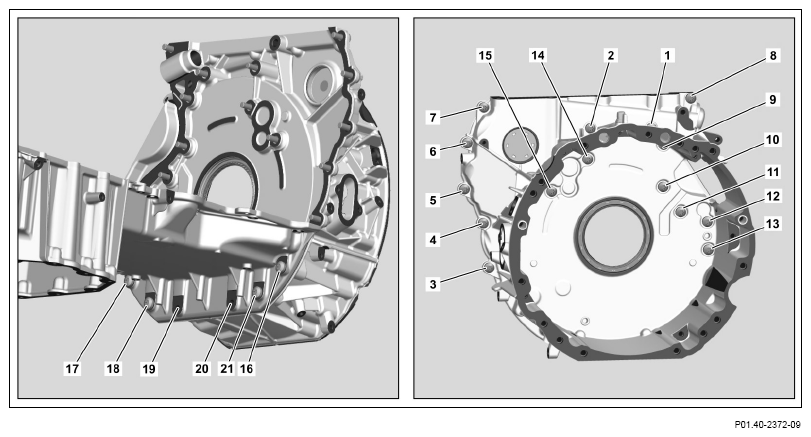

- Tighten to stage 1 in the sequence (13, 7, 3, 8)
.
- Tighten to stage 2 in numerical sequence (1-21)
.
