Electrical Function Schematic For Charging - PE09.00-P-2050-97XBB

Engine 256.9 in model 257, 290 up to model year 2021

Code: Designation: Position:
1 Pressure sensor downstream of air filter, signal 10G
10 Low temperature circuit circulation pump 1, actuation 12F
12 Bypass air switchover valve, actuation 10J
15 Throttle valve position, signal 6F
16 Electric additional compressor, actuation 4D
2 Boost pressure, signal 8H
2 Boost pressure, signal 6H
4 Accelerator pedal sensor, signal 14G
4 Accelerator pedal sensor, signal 9F
5 Engine speed, signal 6E
6 Boost pressure control flap actuator, actuation 8C
8 Circuit 87, status 9E
9 Engine running, signal 13F
B28/11 Pressure sensor downstream of air filter 11J
B28/26 Pressure and temperature sensor upstream of throttle valve 7L
B28/26 Pressure and temperature sensor upstream of throttle valve 4L
B37 Accelerator pedal sensor 14L
B4/32 Charge air pressure and temperature sensor 4L
B70 Crankshaft Hall sensor 4C
CAN C Engine CAN 11F
K40/8 Engine fuse and relay module 15B
K40/8kN Circuit 87M relay 12C
M16/6 Throttle valve actuator 2F
M16/6r1 Actual value potentiometer 1 2F
M16/6r2 Actual value potentiometer 2 2F
M16/7 Boost pressure control flap actuator 7A
M60/1 Electric additional compressor 3C
N127 Drivetrain control unit 15E
N3/10 ME-SFI [ME] control unit 7F
Y101 Divert air switchover valve 10L

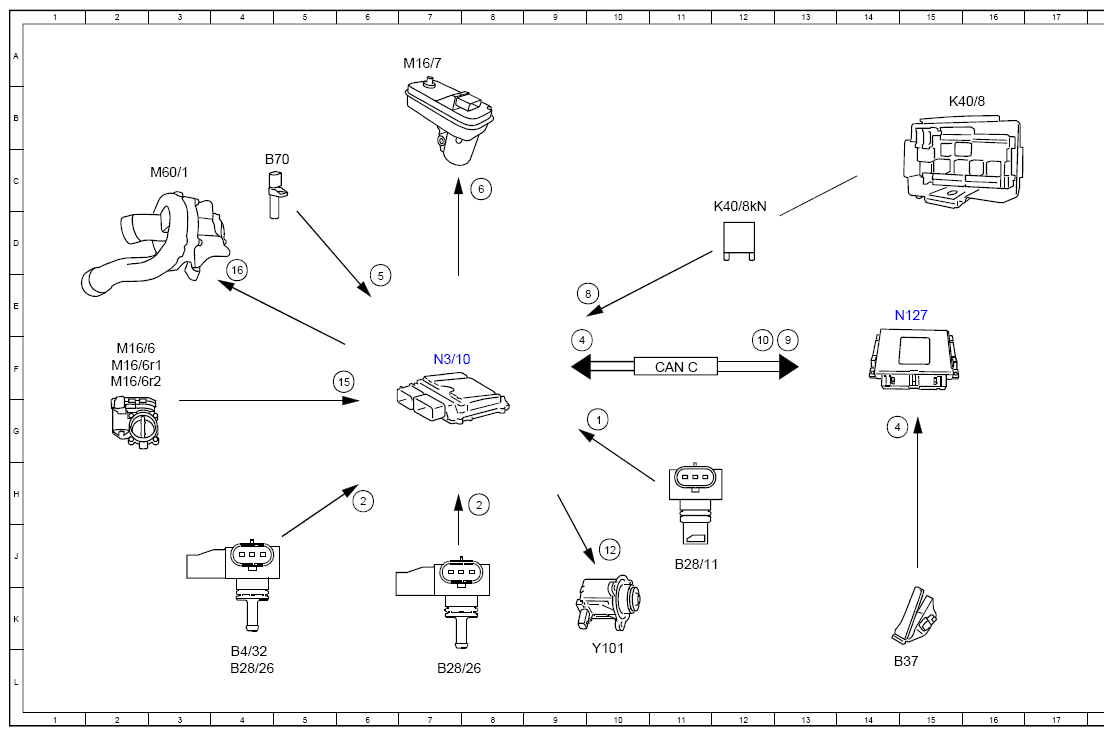

G14554866Courtesy of MERCEDES-BENZ USA
