Remove/Install Low Temperature Coolant Circuit Radiator - AR09.41-P-6935MSA
Engine 256.9 in model 213, 238, 257, 290
Shown on model 213

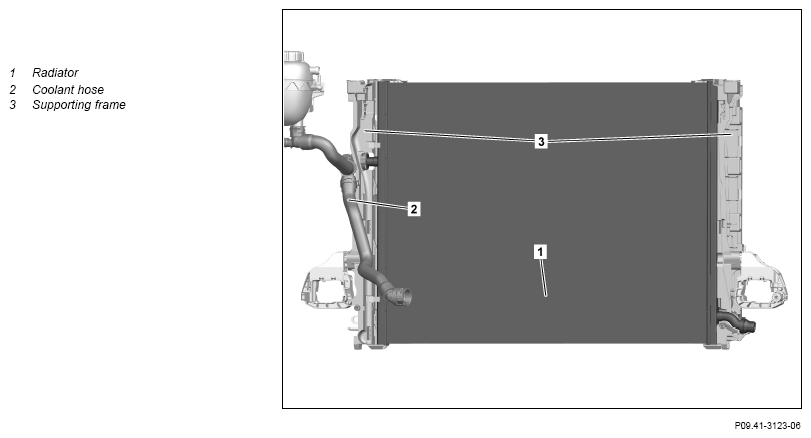

Fig 1: Low Temperature Coolant Circuit Radiator Component Location - Engine 256.9 In Model 257 (Shown On Model 213)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MSA | |
| 2.1 | Remove the engine cooling system cooler. | Engine 256.9 in model 213, 238, 257 | AR20.20-P-3865MSA |
| 2.2 | Remove low-temperature circuit additional cooler. | Engine 256.9 in model 290 | |
| AR09.41-P-3001MSA | |||
| 3 | Remove coolant hose (2) from cooler (1). | AR09.41-P-1311-01AL | |
| 4 | Remove right coolant hose from cooler (1). | Engine 256.9 in model 290 | AR09.41-P-1311-01AL |
| 5 | Unclip right and left cold air ducts from supporting frame (3). | Engine 256.9 in model 290 | |
| 6 | Unclip cooler (1) from supporting frame (3) and remove. | The supporting frames (3) will otherwise be damaged. |
|
| 7 | Install in the reverse order. |
