Remove/Install Exhaust Gas Turbocharger Pressure/Temperature Sensor (Downstream) - AR09.41-P-2014MSA
Engine 256.9 in model 213, 238, 257 with code M016 (Uprated engine)
Engine 256.9 in model 290

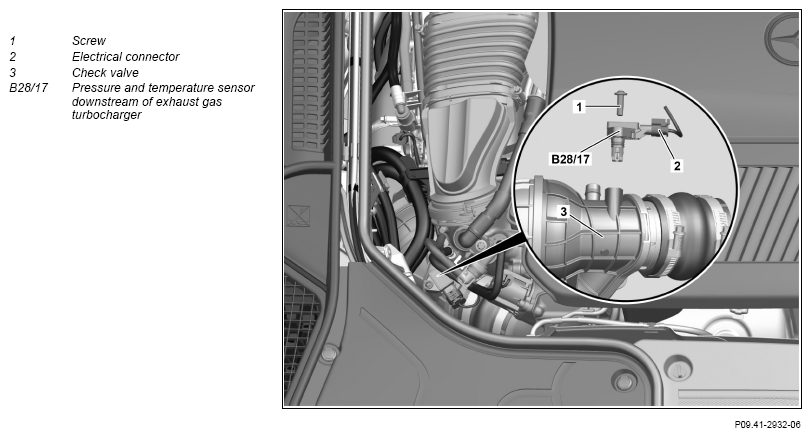

Fig 1: Exhaust Gas Turbocharger Pressure/Temperature Sensor Component Location (Downstream) - Engine 256.9 In Model 257 With Code M016
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Release and disconnect electrical connector (2). | ||
| 2 | Remove screw (1). | *BA09.41-P-1008-01MRT | |
| 3 | Remove the pressure and temperature sensor downstream of the exhaust gas turbocharger (B28/17). | ||
| 4 | Install in the reverse order. | ||
| 5 | Read out and delete fault memory. | ||
| Engine 256.9 in model 257 with code M016 (Uprated engine) Engine 256.9 in model 290 |
AD00.00-P-2000-06FR | ||
| Engine 256.9 in model 238 with code M016 (Uprated engine) | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 213 with code M016 (Uprated engine) | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check engine for proper leak tightness and leak tightness. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA09.41-P-1008-01MRT | Screw, charge air pressure transducer | Nm | 6 |
