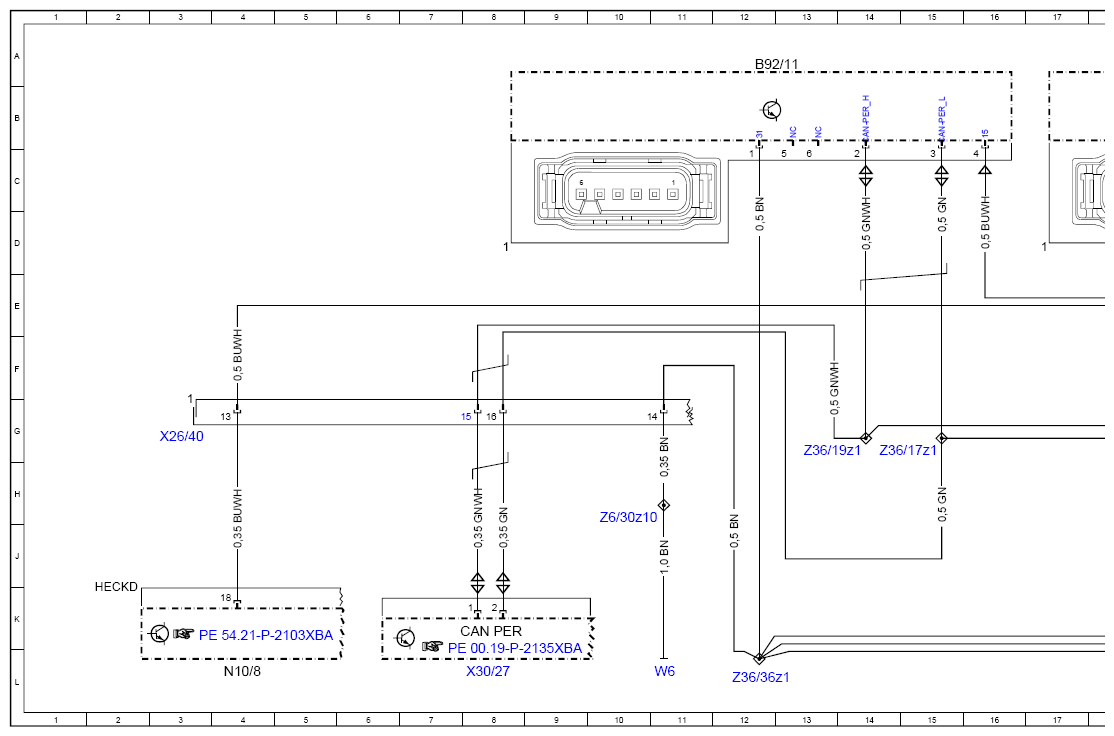

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97XBA
Model 257, 290 up to model year 2021 with code 234 (Blind Spot Assist) Sensors B92/6, B92/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

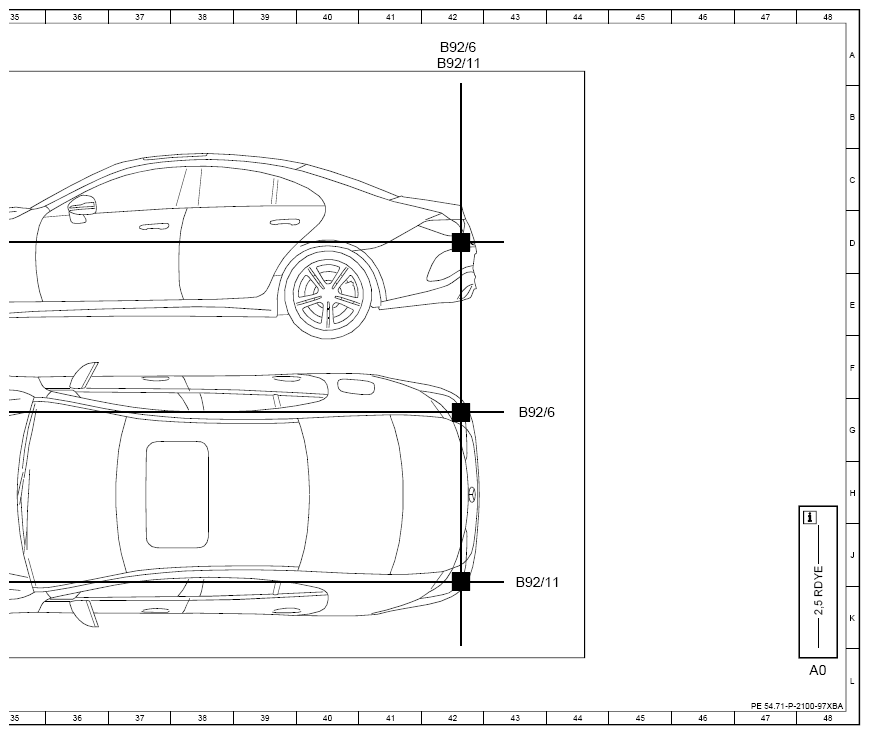

| B92/11 | Left outer rear bumper integrated radar sensor | 12A |
| B92/11 | Left outer rear bumper integrated radar sensor | 29A |
| B92/11 | Left outer rear bumper integrated radar sensor | 43K |
| B92/11 | Left outer rear bumper integrated radar sensor | 42A |

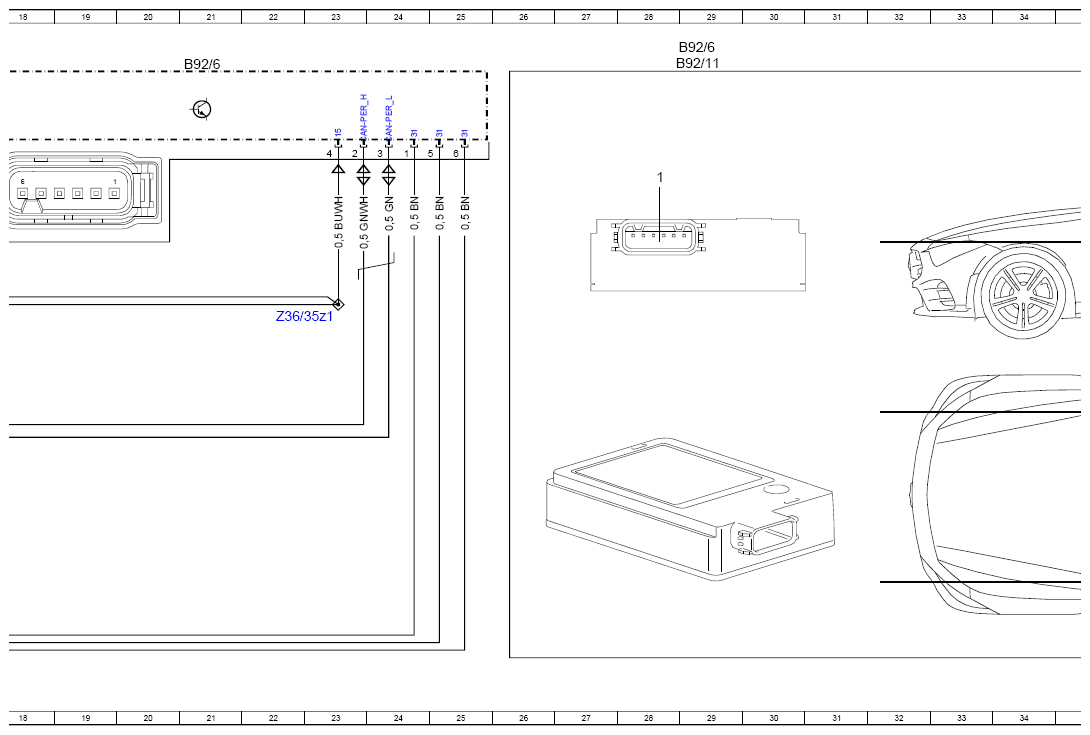

| B92/6 | Right outer rear bumper integrated radar sensor | 21A |
| B92/6 | Right outer rear bumper integrated radar sensor | 29A |
| B92/6 | Right outer rear bumper integrated radar sensor | 43G |
| B92/6 | Right outer rear bumper integrated radar sensor | 42A |
| CAN PER | Peripherals CAN | 8K |
| N10/8 | Rear SAM control unit | 4L |
| W6 | Left wheel arch trunk ground point | 11L |
| X26/40 | Rear bumper electrical connector | 3G |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 8L |
| Z36/17z1 | Rear radar CAN (CAN S2) low connector sleeve | 15G |
| Z36/19z1 | Rear radar CAN (CAN S2) high connector sleeve | 13G |
| Z36/35z1 | Voltage supply connector sleeve | 23E |
| Z36/36z1 | Ground connection connector sleeve | 12L |
| Z6/30z10 | Ground connection connector sleeve | 10H |
