Remove/Install 360 Degree Camera In Outside Mirror - AR54.65-P-3002FR
Model 257, 290
with code 501 (360° camera)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove trim at outside mirror (M21/1, M21/2). | AR88.70-P-9040FR | |
| 2 | Release telephone antenna and place to one side with line attached. | Model 257, 290 with code 274 (Telephone antenna) with code 501 (360° camera) |
AR82.62-P-0011FR |
| 3 | Disconnect electrical connector at camera of side camera (B84/7, B84/8). | ||

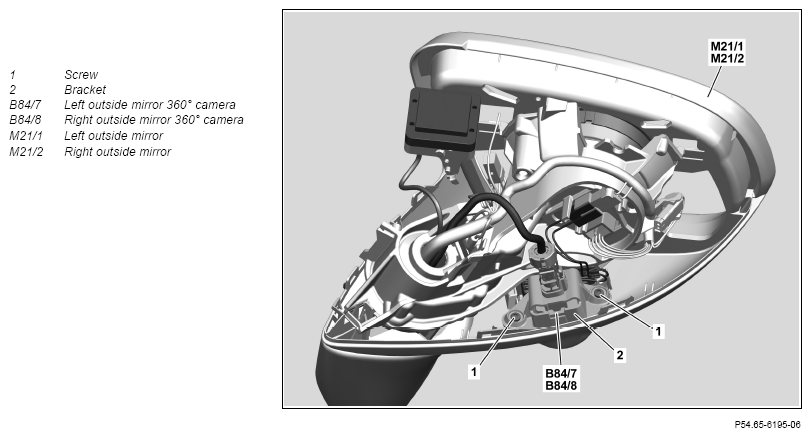

| 4 | Unscrew screw/bolts (1). | ||
| 5 | Remove holder (2) with camera of side camera (B84/7, B84/8). | ||
| 6 | Unclip camera of side camera (B84/7, B84/8) from holder (2) and remove. | When replacing outside mirror 360° camera (B84/7, B84/8). | |
| 7 | Install in the reverse order. | ||
| 8 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
