Wiring Diagram Of Hermes Control Unit - PE82.85-P-2107-97XBB
Model 257 as of 6/1/19, 290 as of 6/1/19 up to model year 2021 with code 362 (HERMES communications module LTE) Control unit N112/9
| Code: | Designation: | Position: |
|---|---|---|

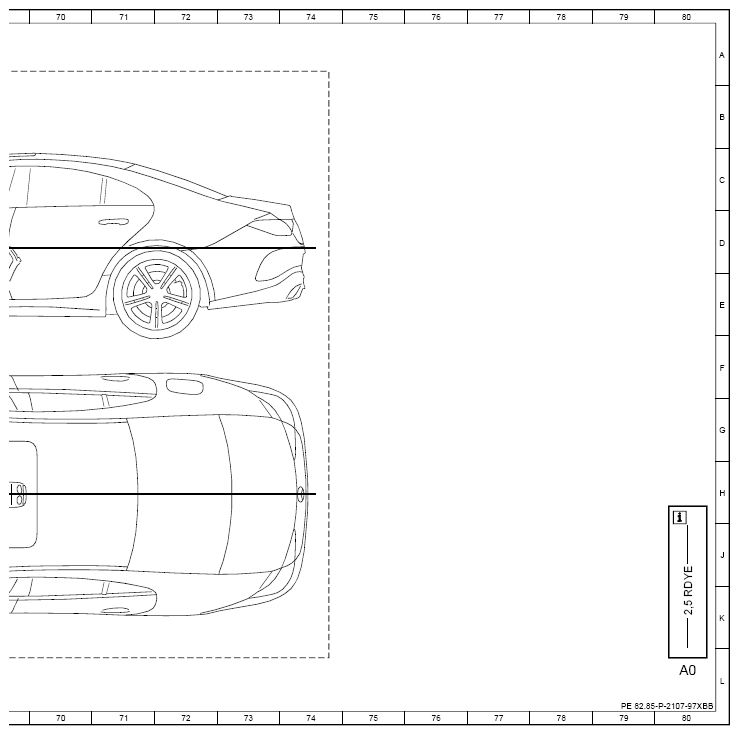

| A0 | Use of wiring diagrams | 80L |
| A2/102 | Left telephone antenna | 49L |
| A2/103 | Right telephone antenna | 50L |
| A2/140 | Emergency call system antenna 1 | 52L |
| A2/141 | Emergency call system antenna 2 | 46L |

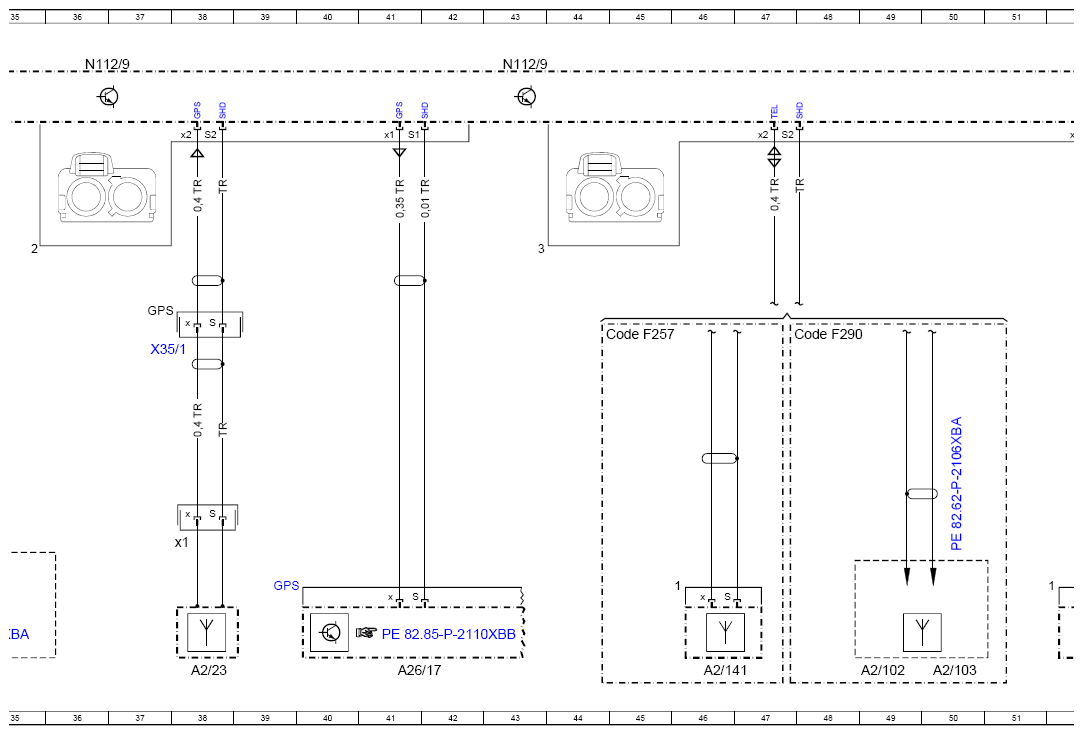

| A2/23 | GPS antenna | 38L |
| A2/23x1 | GPS antenna electrical connector | 38J |

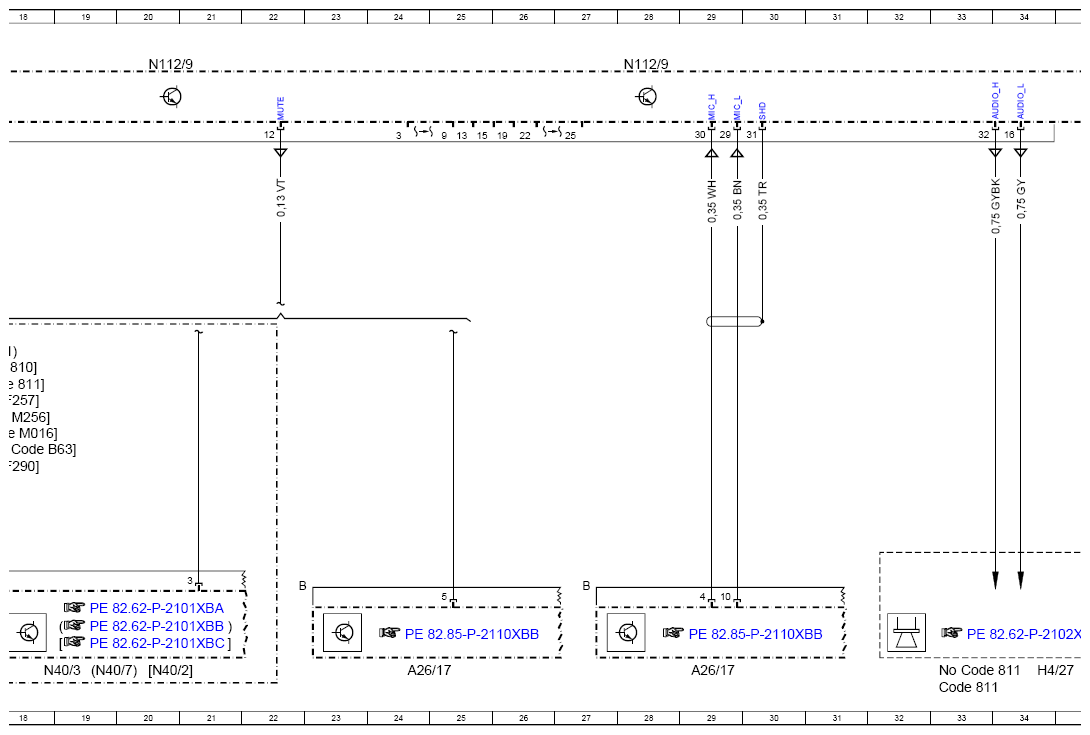

| A26/17 | Head unit | 41L |
| A26/17 | Head unit | 24L |
| A26/17 | Head unit | 29L |

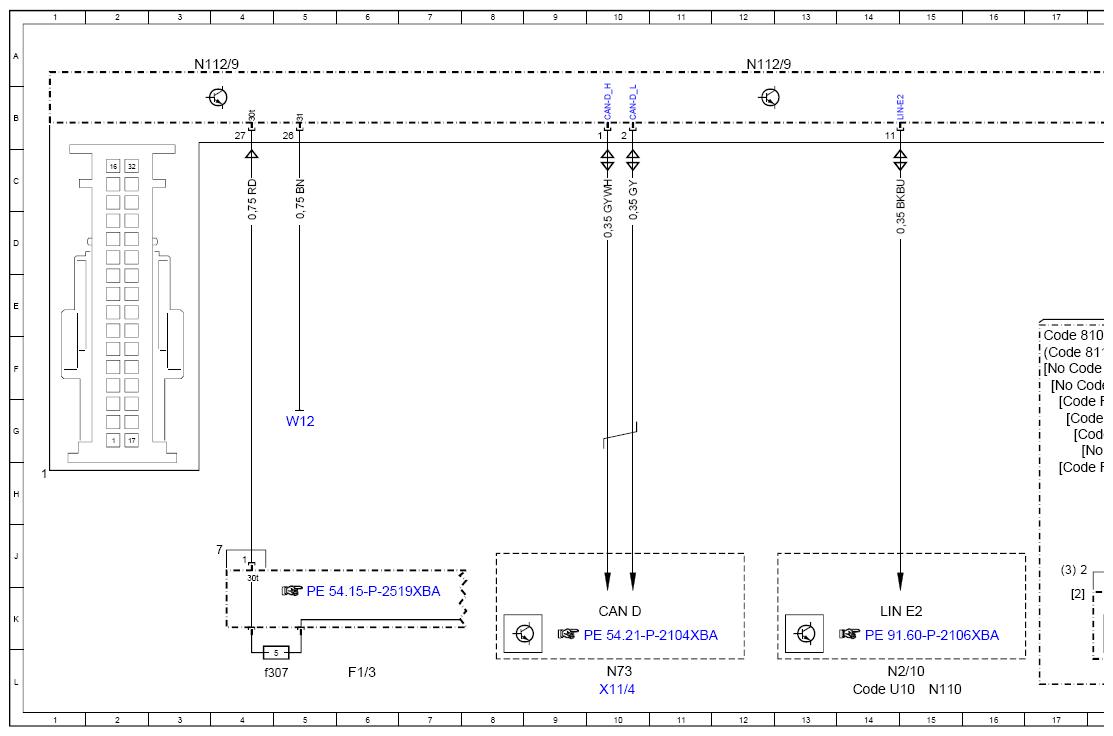

| CAN D | Diagnostic CAN | 10K |
| Code 810 | Sound system | 17F |
| Code 810 | Sound system | 17F |
| Code 811 | Advanced sound system | 33L |
| Code 811 | Advanced sound system | 33L |
| Code 811 | Advanced sound system | 17F |
| Code 811 | Advanced sound system | 17F |
| Code B63 | Sporty engine sound | 18G |
| Code F257 | MODEL SERIES 257 | 17G |
| Code F257 | MODEL SERIES 257 | 44F |
| Code F290 | Model series 290 | 17H |
| Code F290 | Model series 290 | 47F |
| Code M016 | Uprated high-performance engine | 17G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 17G |
| Code U10 | Automatic front passenger airbag shutoff | 14L |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f307 | Fuse 307 | 4L |
| H4/27 | Center instrument panel speaker | 34L |
| LIN E2 | Seat occupied recognition LIN | 14K |
| N110 | Weight Sensing System (WSS) control unit | 15L |

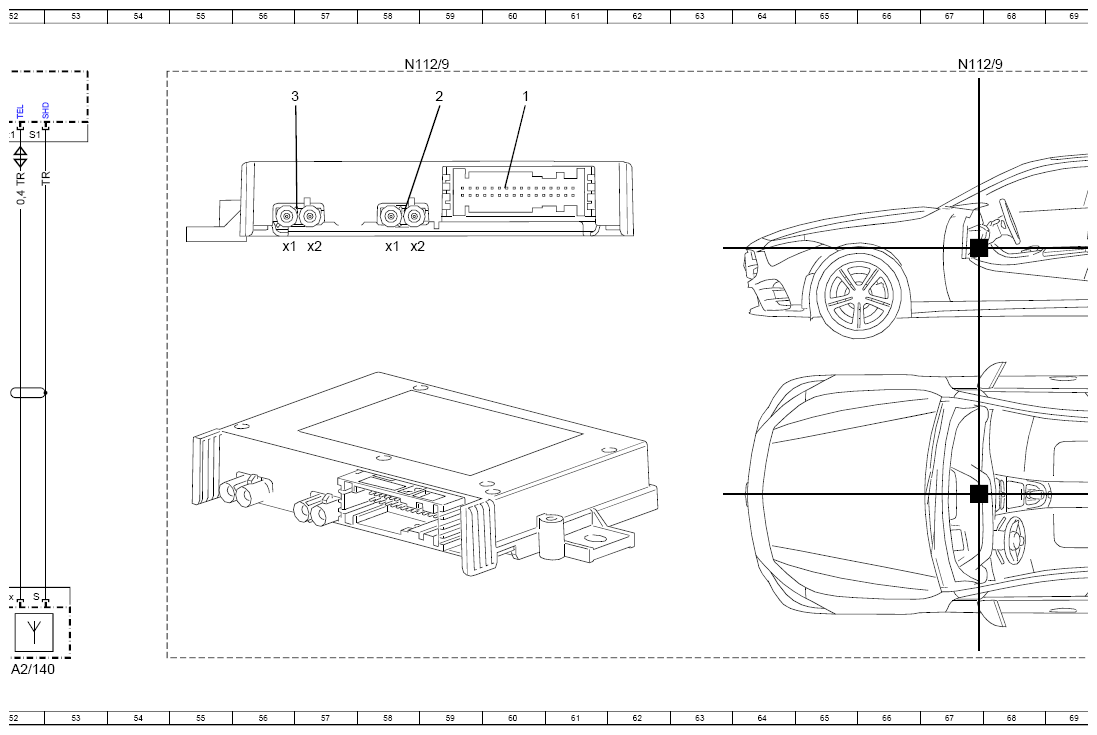

| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 3A |
| N112/9 | HERMES control unit | 43A |
| N112/9 | HERMES control unit | 58A |
| N112/9 | HERMES control unit | 67A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 36A |
| N2/10 | Supplemental restraint system control unit | 14L |
| N40/2 | Sound system midline amplifier control unit | 20L |
| N40/3 | Sound system amplifier control unit | 18L |
| N40/7 | Advanced sound system amplifier control unit | 19L |
| N73 | Electronic ignition switch control unit | 10L |
| W12 | Left center console ground point | 5G |
| X11/4 | Diagnostic connector | 10L |
| X35/1 | Driver door electrical connector | 37F |
