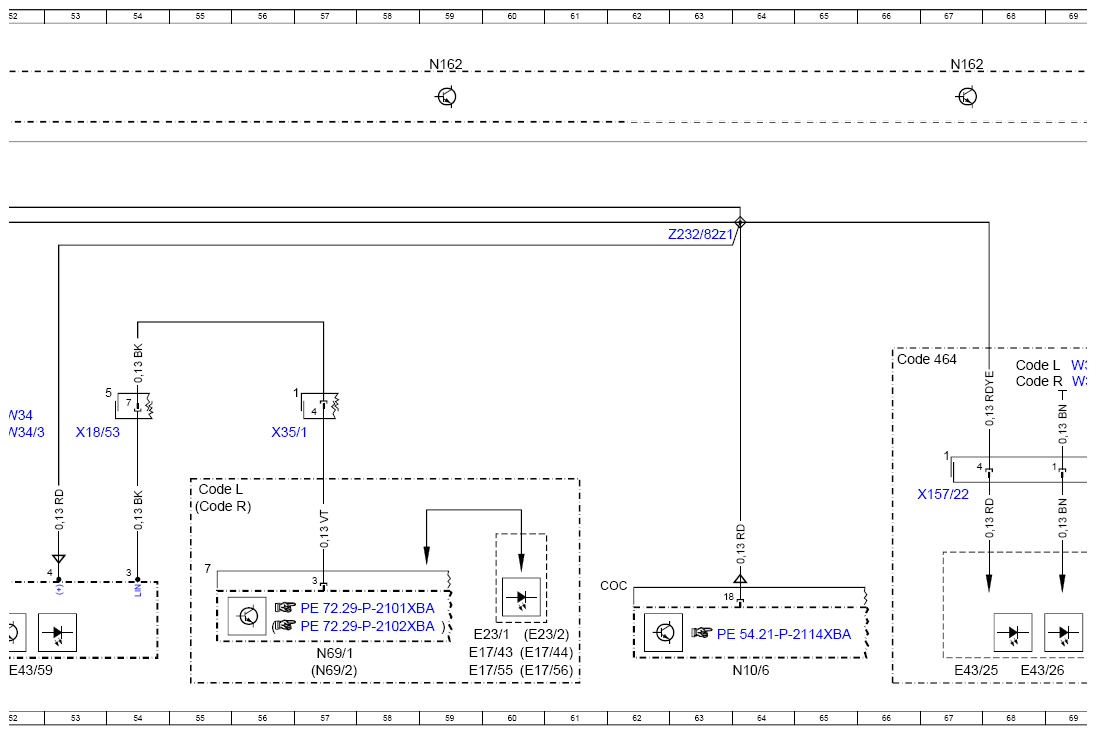

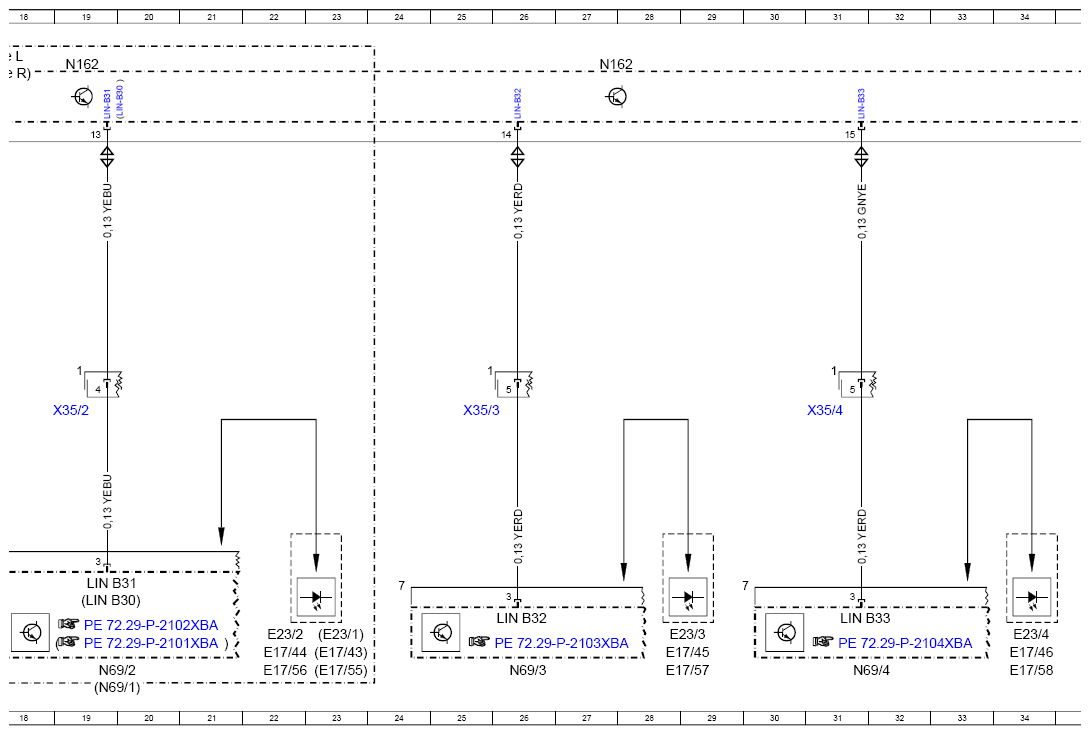

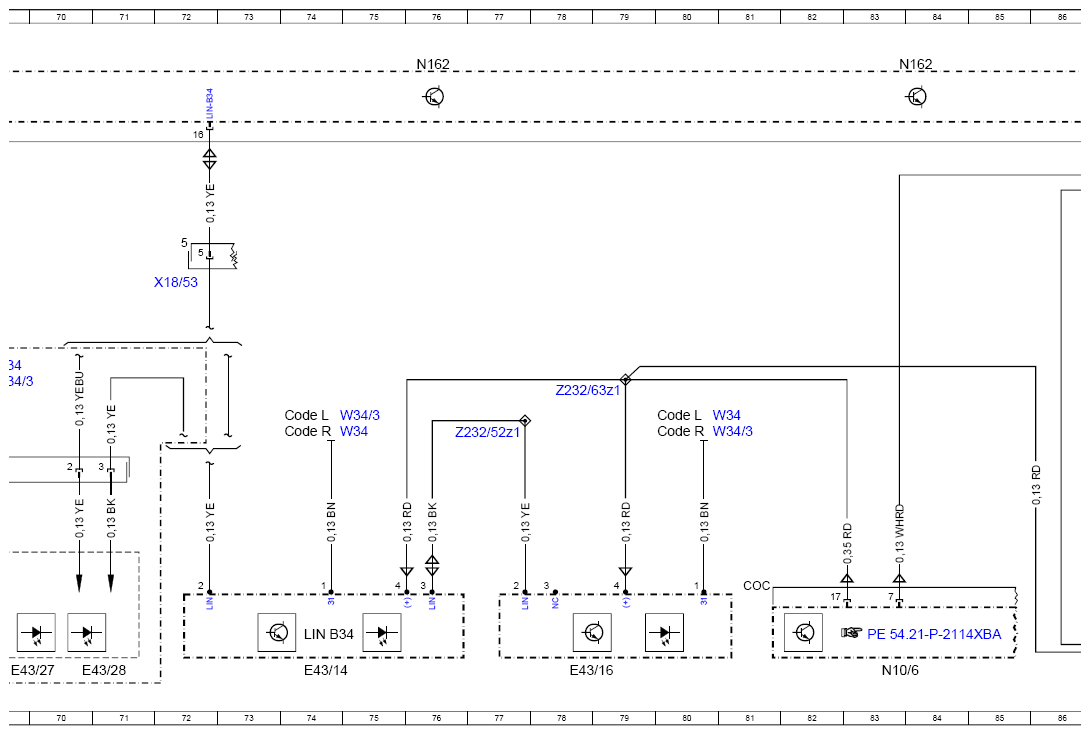

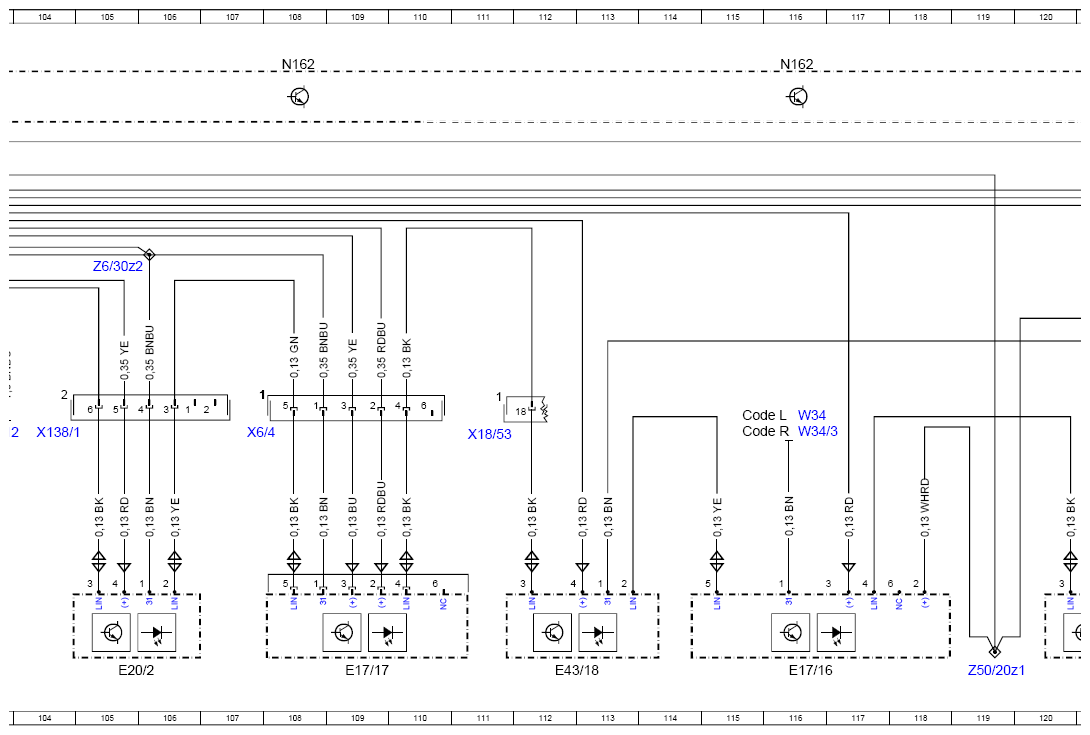

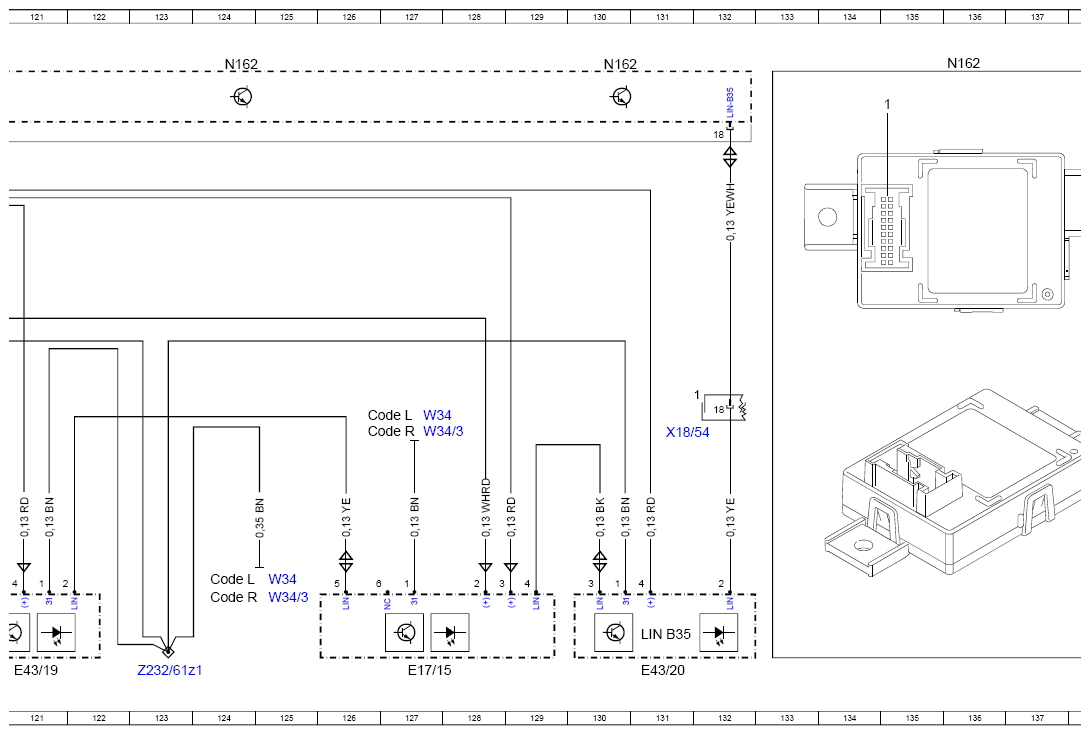

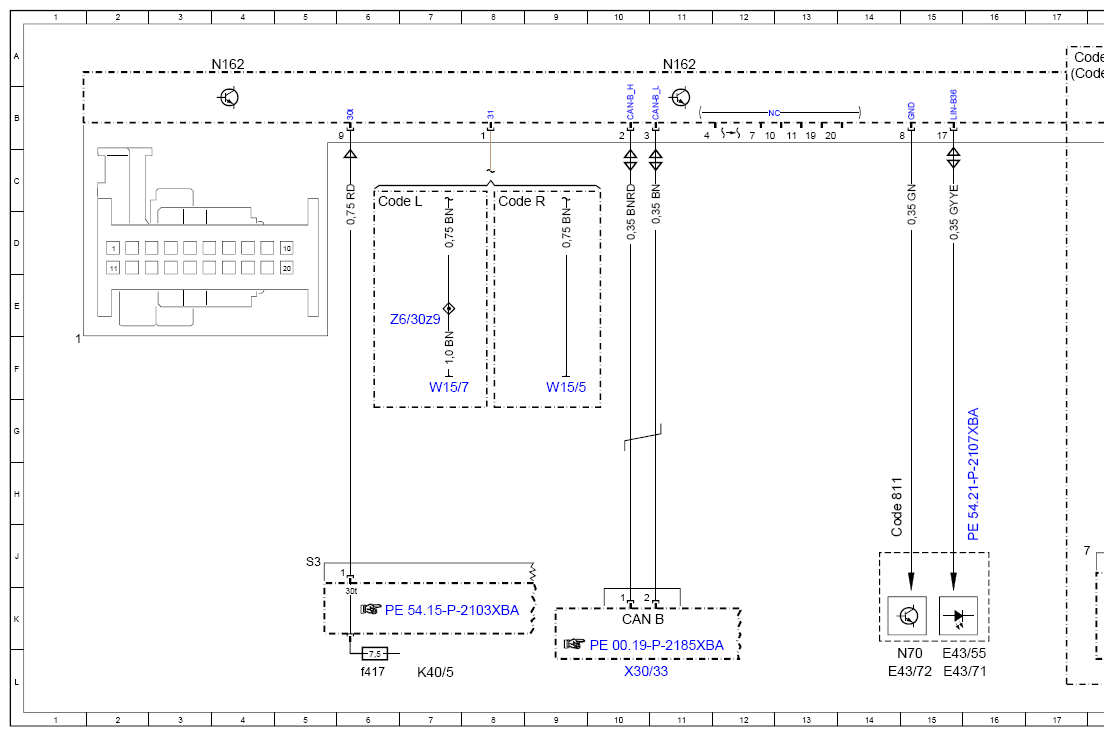

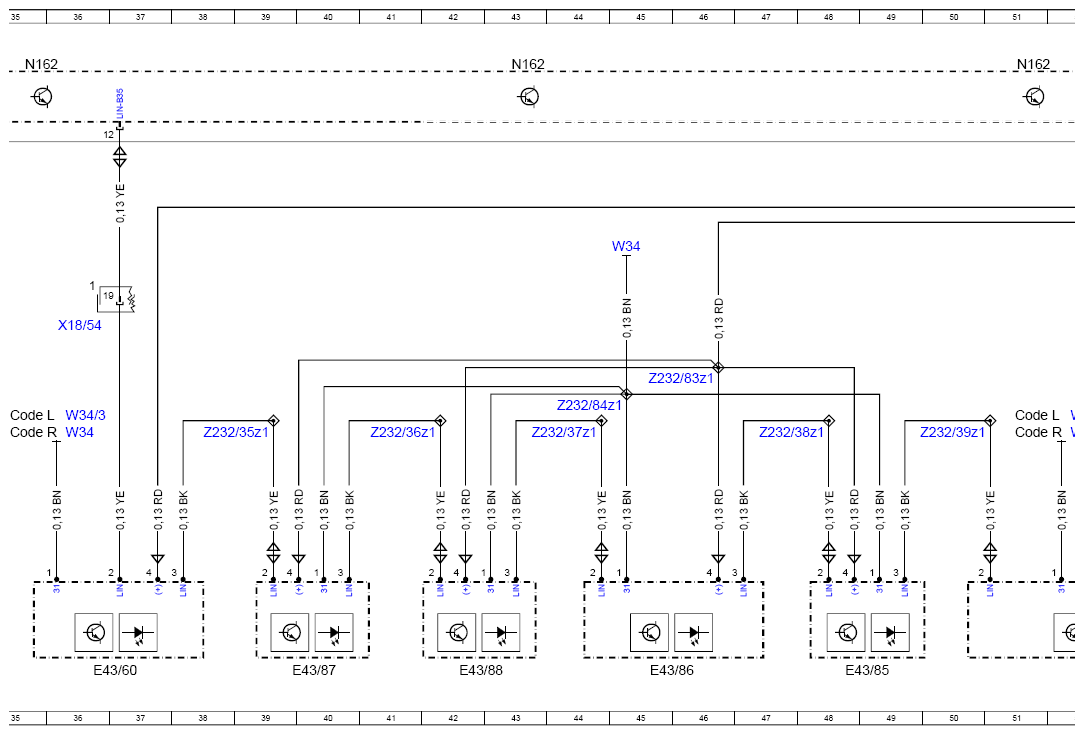

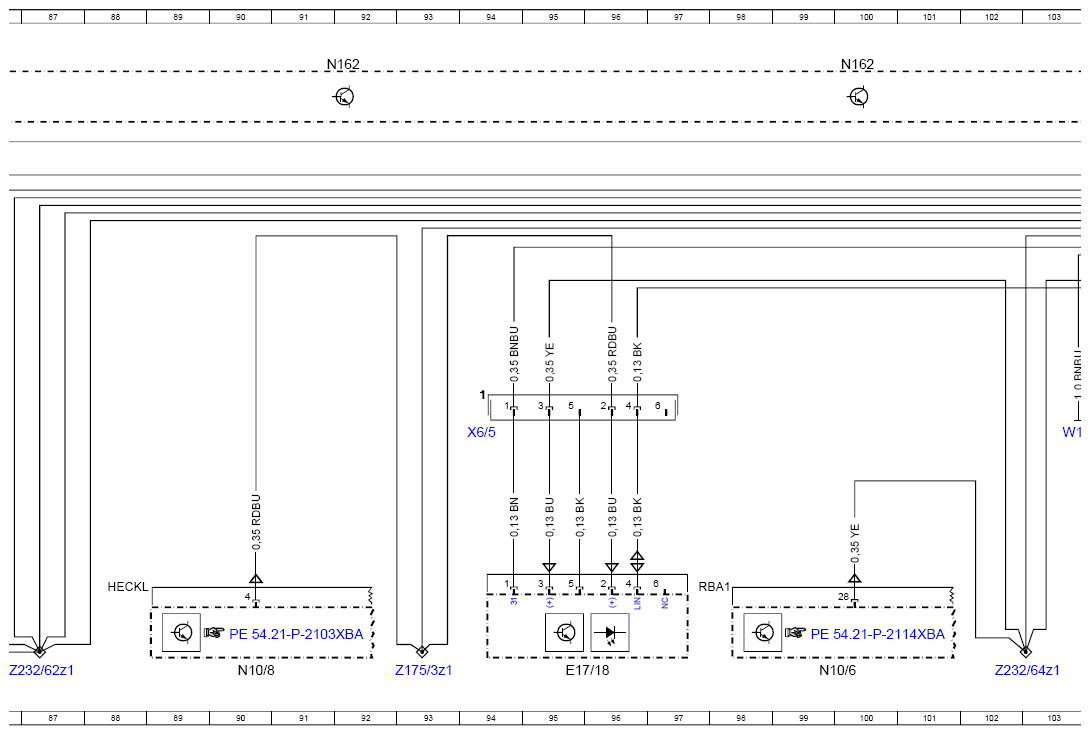

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97XBA
Model 257 up to model year 2021 with code 891 (Premium ambiance illumination) Control unit N162
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| CAN B | InteriorCAN | 10K |
| Code 464 | Digital instrument cluster full display | 66F |
| Code 811 | Advanced sound system | 15J |
| Code L | LEFT-HAND DRIVE | 124 J |
| Code L | LEFT-HAND DRIVE | 6C |
| Code L | LEFT-HAND DRIVE | 17A |
| Code L | LEFT-HAND DRIVE | 35G |
| Code L | LEFT-HAND DRIVE | 51G |
| Code L | LEFT-HAND DRIVE | 55H |
| Code L | LEFT-HAND DRIVE | 68F |
| Code L | LEFT-HAND DRIVE | 80G |
| Code L | LEFT-HAND DRIVE | 74G |
| Code L | LEFT-HAND DRIVE | 115G |
| Code L | LEFT-HAND DRIVE | 126G |
| Code L | LEFT-HAND DRIVE | 139G |
| Code R | RIGHT-HAND DRIVE | 124K |
| Code R | RIGHT-HAND DRIVE | 8C |
| Code R | RIGHT-HAND DRIVE | 17A |
| Code R | RIGHT-HAND DRIVE | 35G |
| Code R | RIGHT-HAND DRIVE | 51G |
| Code R | RIGHT-HAND DRIVE | 55H |
| Code R | RIGHT-HAND DRIVE | 68F |
| Code R | RIGHT-HAND DRIVE | 80G |
| Code R | RIGHT-HAND DRIVE | 74G |
| Code R | RIGHT-HAND DRIVE | 115G |
| Code R | RIGHT-HAND DRIVE | 126G |
| Code R | RIGHT-HAND DRIVE | 139 J |
| E17/15 | Right front footwell lamp | 127L |
| E17/16 | Left front footwell lamp | 116L |
| E17/17 | Left rear footwell lamp | 109L |
| E17/18 | Right rear footwell lamp | 95L |
| E17/43 | Left front door ambiance illumination | 23L |
| E17/43 | Left front door ambiance illumination | 59L |
| E17/44 | Right front door ambiance illumination | 22L |
| E17/44 | Right front door ambiance illumination | 60L |
| E17/45 | Left rear door ambiance illumination | 28L |
| E17/46 | Right rear door ambiance illumination | 34L |
| E17/55 | Left front door handle ambiance illumination | 23L |
| E17/55 | Left front door handle ambiance illumination | 59L |
| E17/56 | Right front door handle ambiance illumination | 22L |
| E17/56 | Right front door handle ambiance illumination | 60L |
| E17/57 | Left rear door handle ambiance illumination | 28L |
| E17/58 | Right rear door handle ambiance illumination | 34L |
| E20/2 | Front center console cup holder illumination | 105L |
| E23/1 | Left front door stowage compartment illumination | 23K |
| E23/1 | Left front door stowage compartment illumination | 59K |
| E23/2 | Right front door stowage compartment illumination | 22K |
| E23/2 | Right front door stowage compartment illumination | 60K |
| E23/3 | Left rear door stowage compartment illumination | 28K |
| E23/4 | Right rear door stowage compartment illumination | 34K |
| E43/14 | Left front center console ambiance illumination | 74L |
| E43/16 | Right front center console ambiance illumination | 78L |
| E43/18 | Driver-side ambiance illumination | 112L |
| E43/19 | Passenger-side interior ambiance illumination | 121L |
| E43/20 | Passenger-side exterior ambiance illumination | 131L |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 67L |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 68L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 69L |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 71L |
| E43/55 | Roof center midrange speaker ambiance illumination | 15L |
| E43/59 | Driver side air vent ambiance illumination | 52L |
| E43/60 | Front passenger side air vent ambiance illumination | 36L |
| E43/71 | Left center headliner midrange speaker ambiance illumination | 15L |
| E43/72 | Right center headliner midrange speaker ambiance illumination | 15L |
| E43/85 | Driver outside center air vent ambiance illumination | 48L |
| E43/86 | Driver inside center air vent ambiance illumination | 45L |
| E43/87 | Front passenger outside center air vent ambiance illumination | 40L |
| E43/88 | Front passenger inside center air vent ambiance illumination | 42L |
| K40/5 | Rear fuse and relay module | 7L |
| K40/5f417 | Fuse 417 | 6L |
| LIN B30 | Left front door ambiance illumination LIN | 19K |
| LIN B31 | Right front door ambiance illumination LIN | 19K |
| LIN B32 | Left rear door ambiance illumination LIN | 26K |
| LIN B33 | Right rear door ambiance illumination LIN | 31K |
| LIN B34 | Cockpit ambiance illumination LIN | 74K |
| LIN B35 | Vehicle interior ambiance illumination LIN | 131K |
| N10/6 | Front SAM control unit | 64L |
| N10/6 | Front SAM control unit | 83L |
| N10/6 | Front SAM control unit | 99L |
| N10/8 | Rear SAM control unit | 90L |

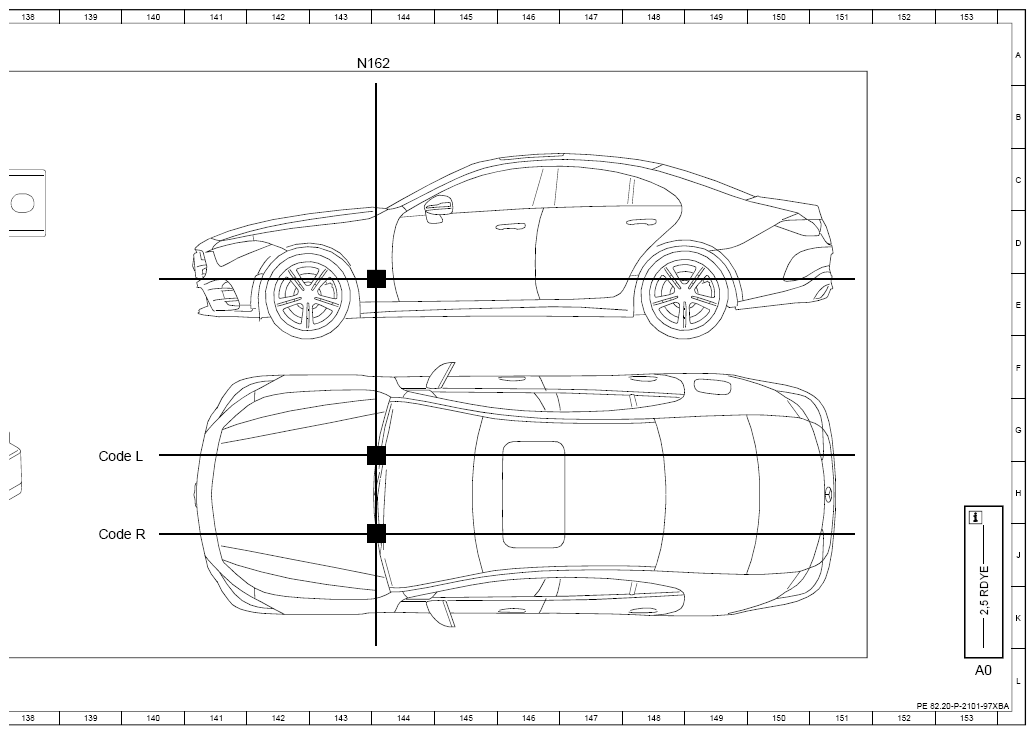

| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 11A |
| N162 | Ambiance illumination control unit | 19A |
| N162 | Ambiance illumination control unit | 27A |
| N162 | Ambiance illumination control unit | 35A |
| N162 | Ambiance illumination control unit | 43A |
| N162 | Ambiance illumination control unit | 51A |
| N162 | Ambiance illumination control unit | 59A |
| N162 | Ambiance illumination control unit | 67A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 92A |
| N162 | Ambiance illumination control unit | 100A |
| N162 | Ambiance illumination control unit | 108A |
| N162 | Ambiance illumination control unit | 116A |
| N162 | Ambiance illumination control unit | 124A |
| N162 | Ambiance illumination control unit | 130A |
| N162 | Ambiance illumination control unit | 136A |
| N162 | Ambiance illumination control unit | 143A |
| N69/1 | Left front door control unit | 19L |
| N69/1 | Left front door control unit | 57L |
| N69/2 | Right front door control unit | 19L |
| N69/2 | Right front door control unit | 57L |
| N69/3 | Left rear door control unit | 26L |
| N69/4 | Right rear door control unit | 31L |
| N70 | Overhead control panel control unit | 15L |
| W12 | Left center console ground point | 103G |
| W15/5 | Left front footwell ground point | 9F |
| W15/7 | Right front footwell ground point | 7F |
| W34 | Left footwell ground point | 45D |
| W34 | Left footwell ground point | 125J |
| W34 | Left footwell ground point | 36G |
| W34 | Left footwell ground point | 52G |
| W34 | Left footwell ground point | 69F |
| W34 | Left footwell ground point | 80G |
| W34 | Left footwell ground point | 74G |
| W34 | Left footwell ground point | 116G |
| W34 | Left footwell ground point | 127G |
| W34/3 | Right footwell ground point | 125K |
| W34/3 | Right footwell ground point | 36G |
| W34/3 | Right footwell ground point | 52G |
| W34/3 | Right footwell ground point | 69F |
| W34/3 | Right footwell ground point | 80G |
| W34/3 | Right footwell ground point | 74G |
| W34/3 | Right footwell ground point | 116G |
| W34/3 | Right footwell ground point | 127G |
| X138/1 | Front center console electrical connector | 104G |
| X157/22 | Digital instrument cluster full display ambiance illumination electrical connector | 67H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 53G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 72E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 111G |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 36E |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 131G |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 10L |
| X35/1 | Driver door electrical connector | 56G |
| X35/2 | Front passenger door electrical connector | 19G |
| X35/3 | Left rear door electrical connector | 25G |
| X35/4 | Right rear door electrical connector | 31G |
| X6/4 | Left rear footwell lamp display electrical connector | 107G |
| X6/5 | Right rear footwell lamp display electrical connector | 94G |
| Z175/3z1 | Voltage supply connector sleeve | 93L |
| Z232/35z1 | LIN B34 connector sleeve | 39G |
| Z232/36z1 | LIN B34 connector sleeve | 41G |
| Z232/37z1 | LIN B34 connector sleeve | 44G |
| Z232/38z1 | LIN B34 connector sleeve | 47G |
| Z232/39z1 | LIN B34 connector sleeve | 50G |
| Z232/52z1 | LIN B34 connector sleeve | 77G |
| Z232/61z1 | Circuit 31 connector sleeve | 123L |
| Z232/62z1 | Voltage supply connector sleeve | 87L |
| Z232/63z1 | Voltage supply connector sleeve | 78F |
| Z232/64z1 | Voltage supply connector sleeve | 102L |
| Z232/82z1 | Voltage supply connector sleeve | 63D |
| Z232/83z1 | Voltage supply connector sleeve | 46F |
| Z232/84z1 | Circuit 31 connector sleeve | 44G |
| Z50/20z1 | Voltage supply connector sleeve | 119L |
| Z6/30z2 | Circuit 31 connector sleeve | 105D |
| Z6/30z9 | Circuit 31 connector sleeve | 7E |
