Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97XBD
Model 257, 290 up to model year 2021 with code 640 (High-performance LED) Headlamps E2
Model 257, 290 up to model year 2021 with code 641 (Dynamic LED headlamps, left-hand traffic) Headlamps E2
Model 257, 290 up to model year 2021 with code 642 (Dynamic LED headlamps, right-hand traffic) Headlamps E2
| Code: | Designation: | Position: |
|---|---|---|

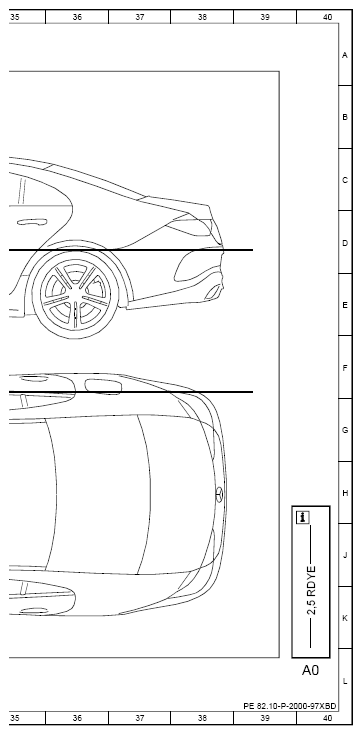

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 19K |

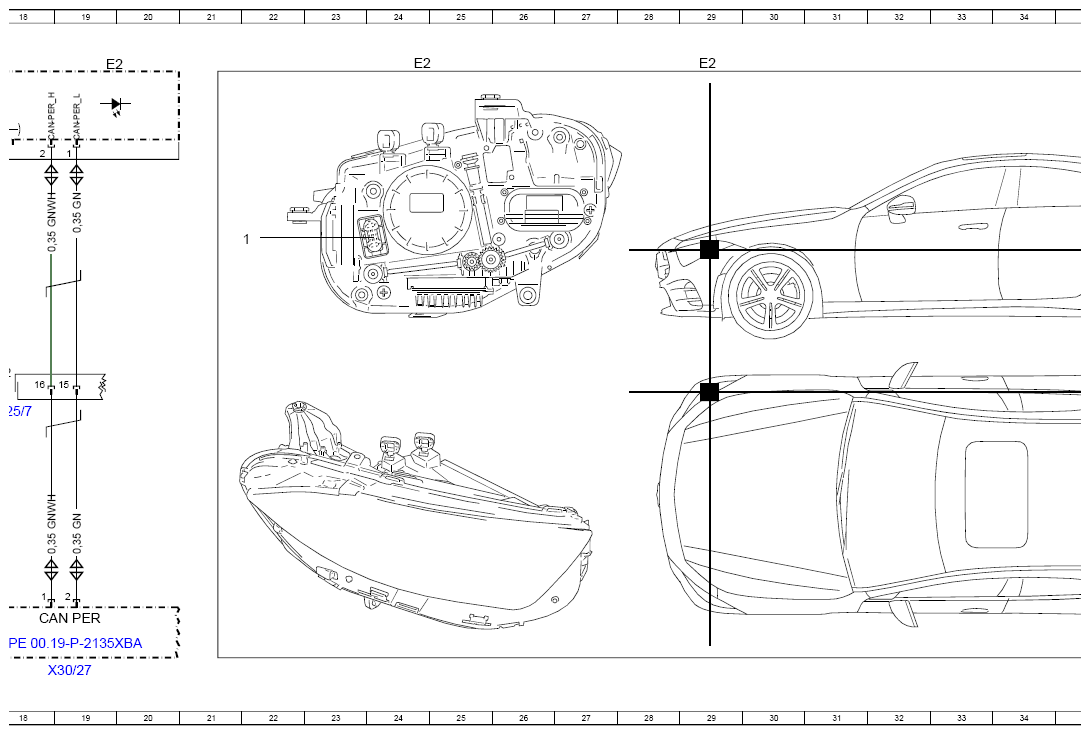

| E2 | Right front lamp unit | 3A |
| E2 | Right front lamp unit | 24A |
| E2 | Right front lamp unit | 29A |
| E2 | Right front lamp unit | 11A |
| E2 | Right front lamp unit | 19A |

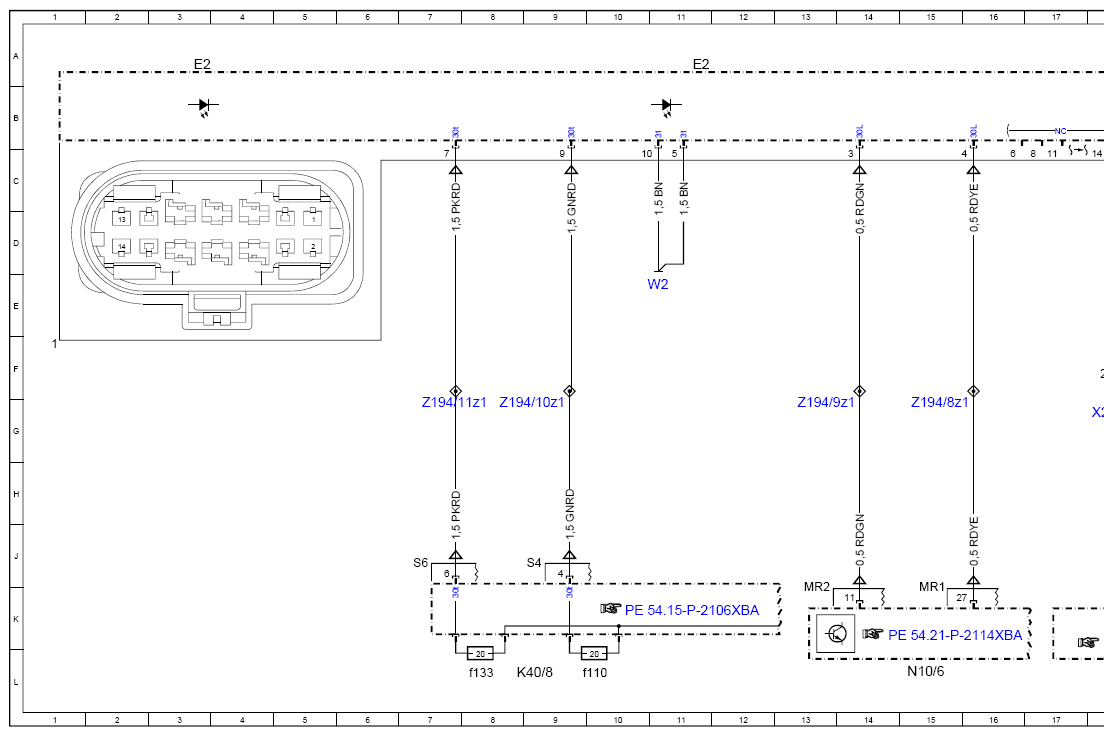

| K40/8 | Engine fuse and relay module | 9L |
| K40/8f110 | Fuse 110 | 10L |
| K40/8f133 | Fuse 133 | 8L |
| N10/6 | Front SAM control unit | 15L |
| W2 | Right front ground point at lamp unit | 11E |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 18G |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 19L |
| Z194/10z1 | Terminal 30t connector sleeve | 9G |
| Z194/11z1 | Terminal 30t connector sleeve | 7G |
| Z194/8z1 | Circuit 30L connector sleeve | 15G |
| Z194/9z1 | Circuit 30L connector sleeve | 13G |
