Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97XBA
Model 257 up to model year 2021 with code 631 (Static LED headlamps, left-hand traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamps E1
Model 257 up to model year 2021 with code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (High-performance LED)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamps E1
| Code: | Designation: | Position: |
|---|---|---|

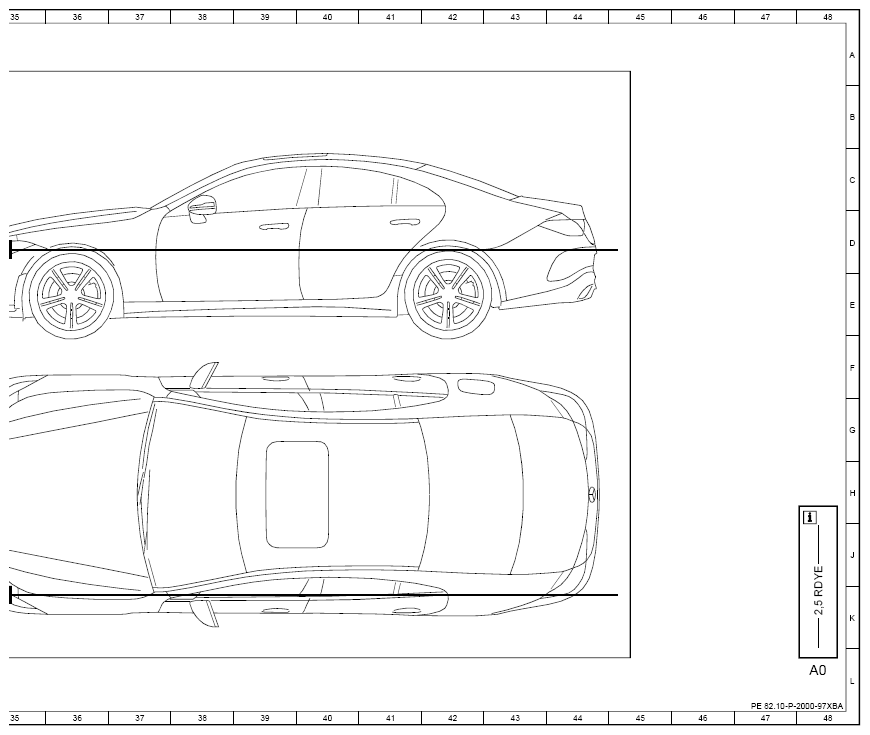

| A0 | Use of wiring diagrams | 48L |

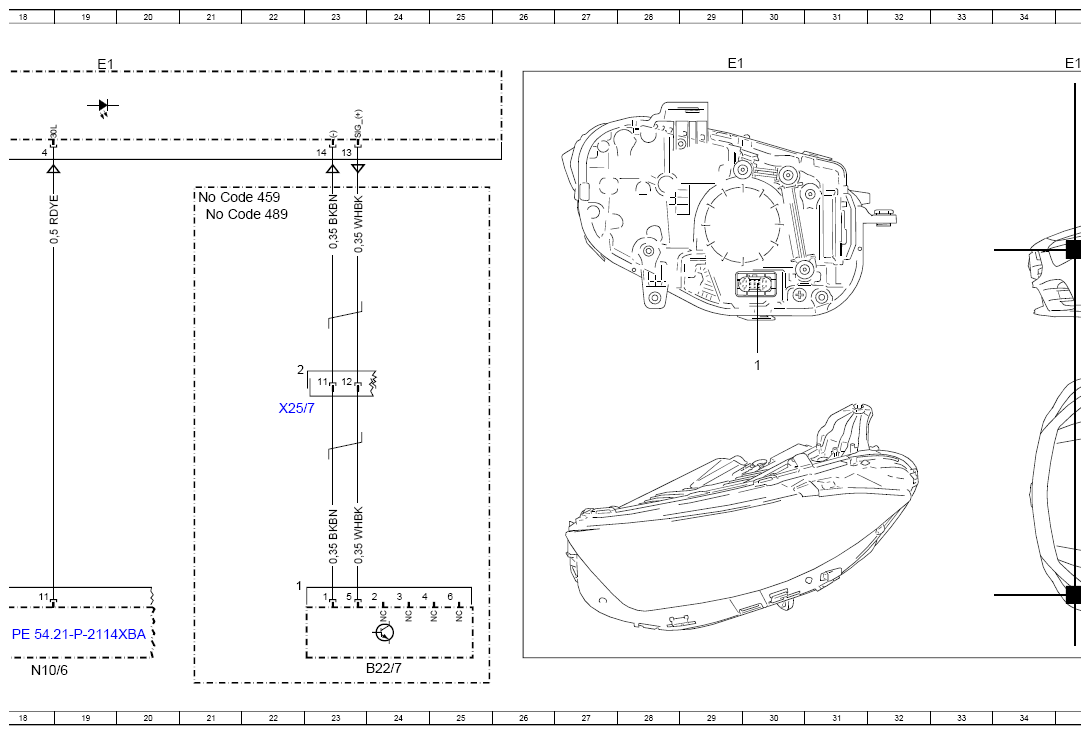

| B22/7 | Left rear level sensor | 24L |
| CAN PER | Peripherals CAN | 14K |
| Code 459 | Steel suspension with adjustable damping | 21C |
| Code 489 | AIR BODY CONTROL | 21D |

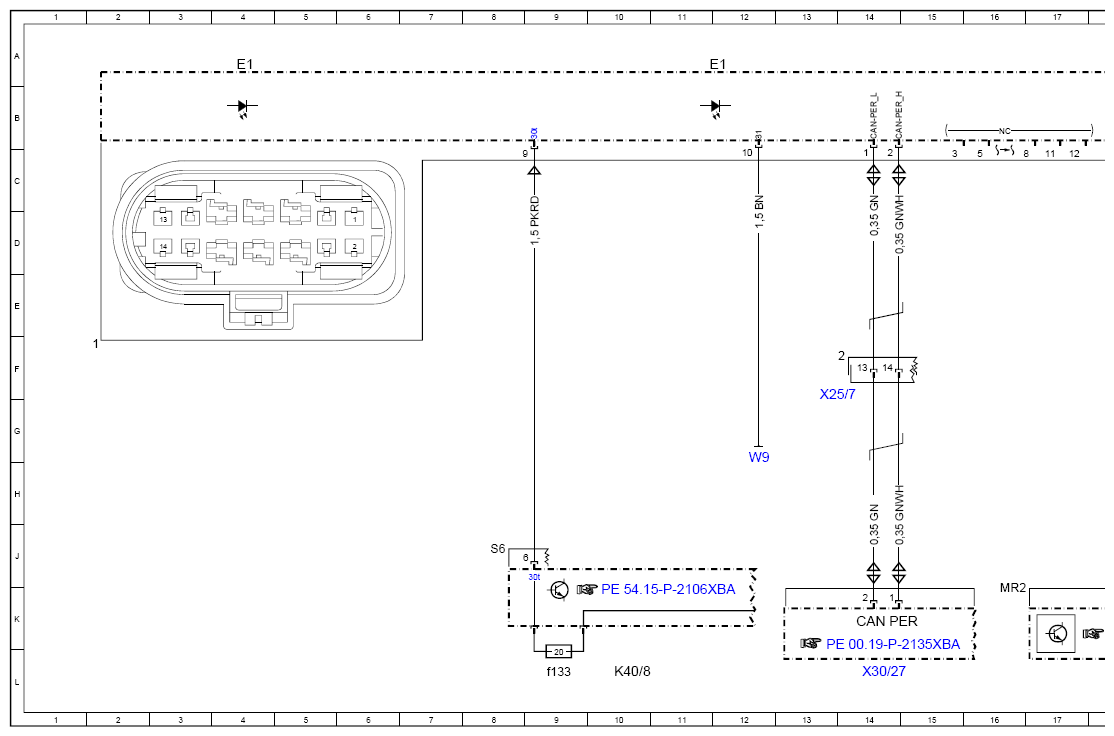

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 29A |
| E1 | Left front lamp unit | 35A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 19A |
| K40/8 | Engine fuse and relay module | 10L |
| K40/8f133 | Fuse 133 | 9L |
| N10/6 | Front SAM control unit | 18L |
| W9 | Left front ground point (at lamp unit) | 12H |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 14F |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 22G |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 14L |
