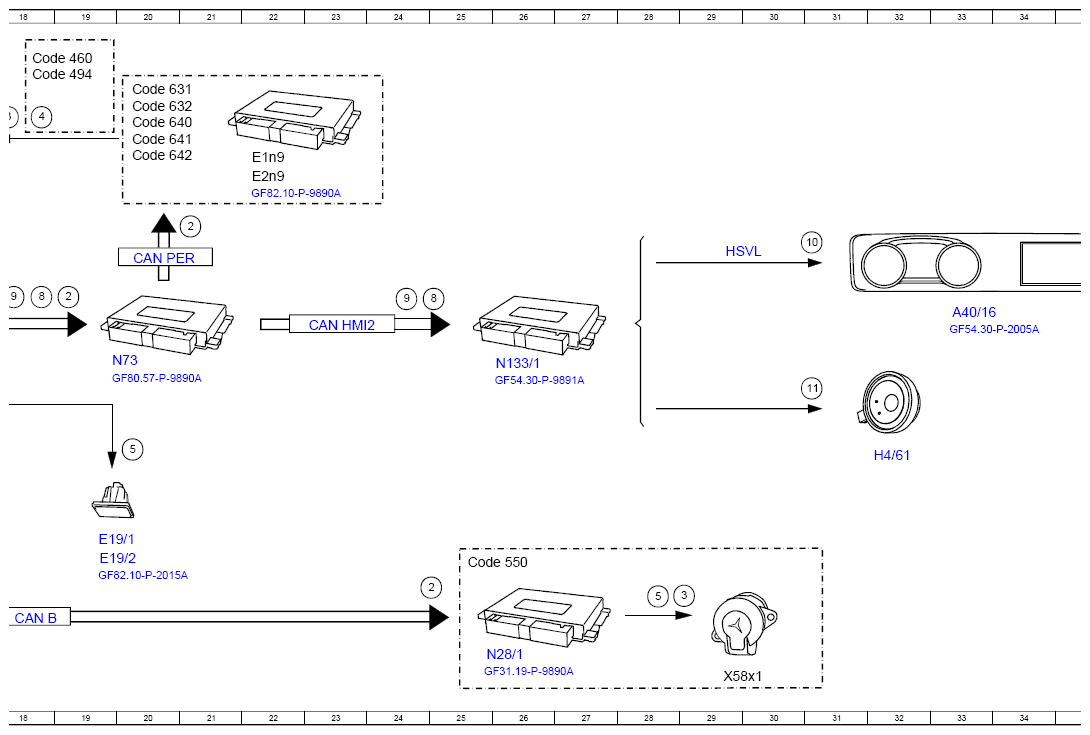

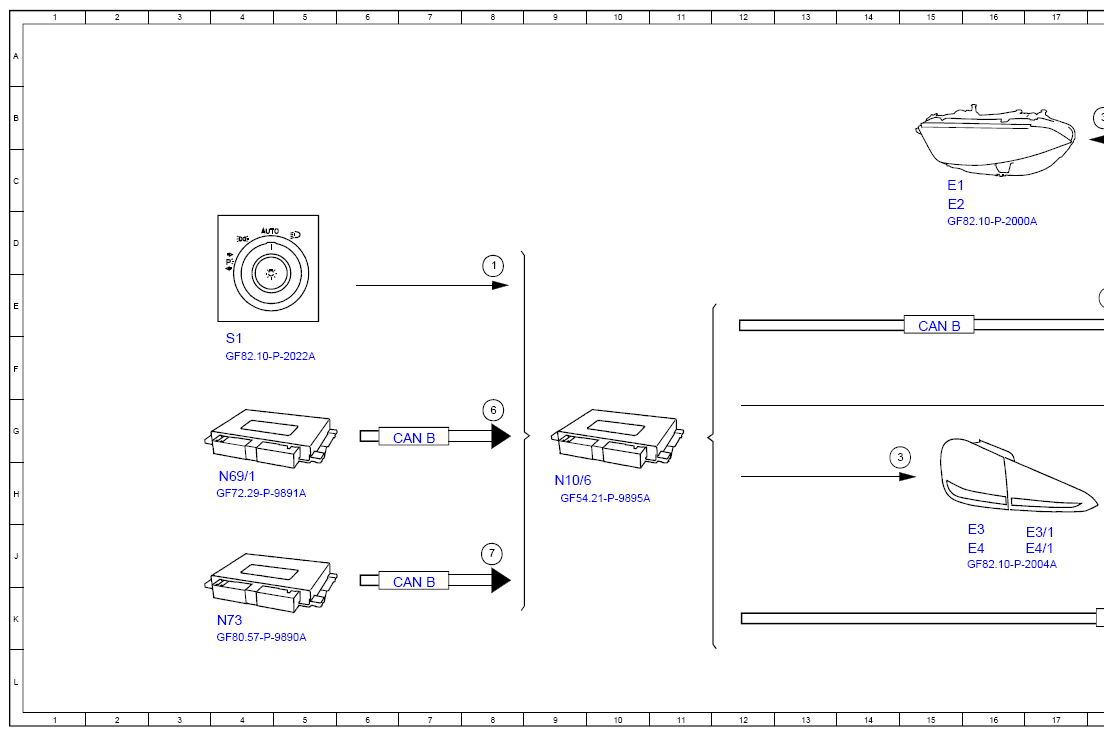

Function Schematic, Actuate Standing/Parking Lights - PE82.10-P-2503-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lighting switch, status | 8D |
| 10 | image data, signal | 31D |
| 11 | Loudspeaker, Control | 31F |
| 2 | Parking light and parking light, requirement | 19E |
| 2 | Parking light and parking light, requirement | 24K |
| 2 | Parking light and parking light, requirement | 21D |
| 3 | Parking light and parking light, control | 14G |
| 3 | Parking light and parking light, control | 18F |
| 3 | Parking light and parking light, control | 28J |
| 4 | Parking light and parking light, control | 18B |
| 5 | License plate light, activation | 28K |
| 5 | License plate light, activation | 20G |
| 6 | Door rotary latch switch, status | 8G |
| 7 | Terminal 15, Status | 8J |
| 8 | Instrument cluster message, request | 18E |
| 8 | Instrument cluster message, request | 25E |
| 9 | Warning sound, requirement | 18E |
| 9 | Warning sound, requirement | 24E |
| A40/16 | Display size head unit/instrument cluster | 33E |
| CAN B | Interior-CAN | 7J |
| CAN B | Interior-CAN | 18K |
| CAN B | Interior-CAN | 7G |
| CAN B | Interior-CAN | 15E |
| CAN HMI2 | User interface CAN 2 | 23E |
| CAN PER | peripheral CAN | 20D |
| Code 460 | Canada version | 18A |
| Code 494 | USA version | 18A |
| Code 550 | Hitch | 25J |
| Code 631 | LED headlights, static, left-hand traffic | 20B |
| Code 632 | LED headlights, static, right-hand traffic | 20B |
| Code 640 | Headlights LED dynamic SAE right-hand traffic | 20B |
| Code 641 | Headlights LED dynamic left-hand traffic | 20B |
| Code 642 | Headlights LED dynamic right-hand traffic | 20C |
| E1 | Light unit in front left | 15C |
| E19/1 | License plate light on the left | 19J |
| E19/2 | License plate light on the right | 19J |
| E1n9 | Left headlight control unit | 22C |
| E2 | Light unit in front on the right | 15C |
| E2n9 | Right headlight control unit | 22C |
| E3 | Rear left light unit | 16J |
| E3/1 | Light unit at the rear left inside | 17J |
| E4 | Rear right light unit | 16J |
| E4/1 | Light unit in the rear right inside | 17J |
| H4/61 | Instrument cluster speakers | 32G |
| HSVL | High-Speed-Video-Link | 29D |
| N10/6 | Front SAM control unit | 9H |
| N133/1 | Instrument Cluster Control Unit | 26F |
| N28/1 | Trailer detection control unit | 26L |
| N69/1 | Left front door control unit | 4H |
| N73 | Electronic Ignition Lock Control Unit | 4K |
| N73 | Electronic Ignition Lock Control Unit | 20F |
| S1 | External lighting switch | 4F |
| X58x1 | trailer socket | 29L |
