Wiring Diagram For Touchpad - PE82.00-P-2061-97XBB

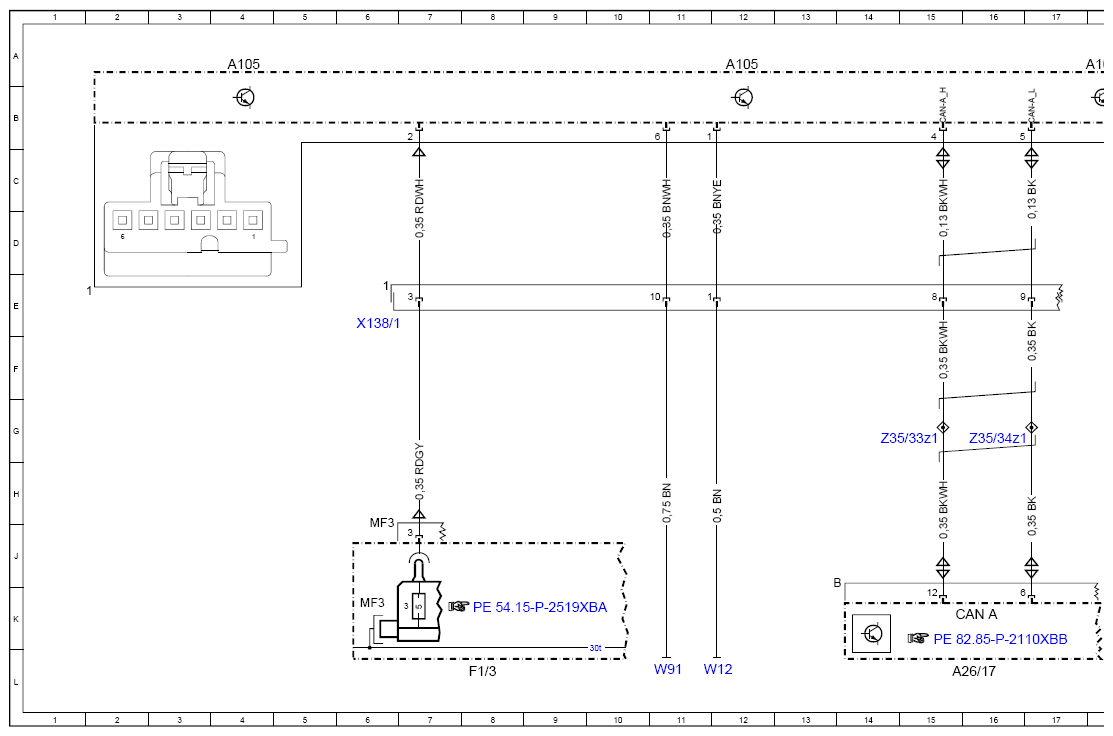

Model 257 up to model year 2021 with code 448 (Touchpad) Touchpad A105
| Code: | Designation: | Position: |
|---|---|---|

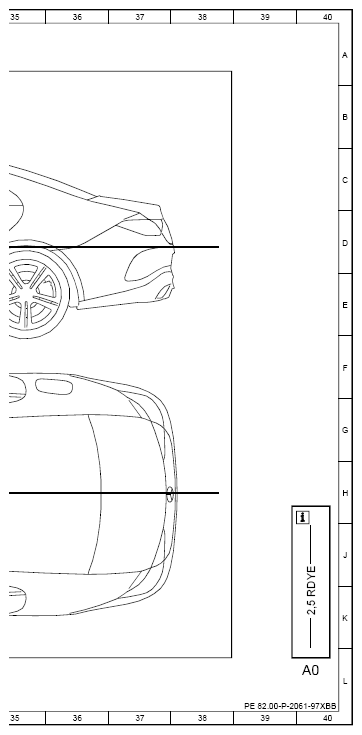

| A0 | Use of wiring diagrams | 40L |

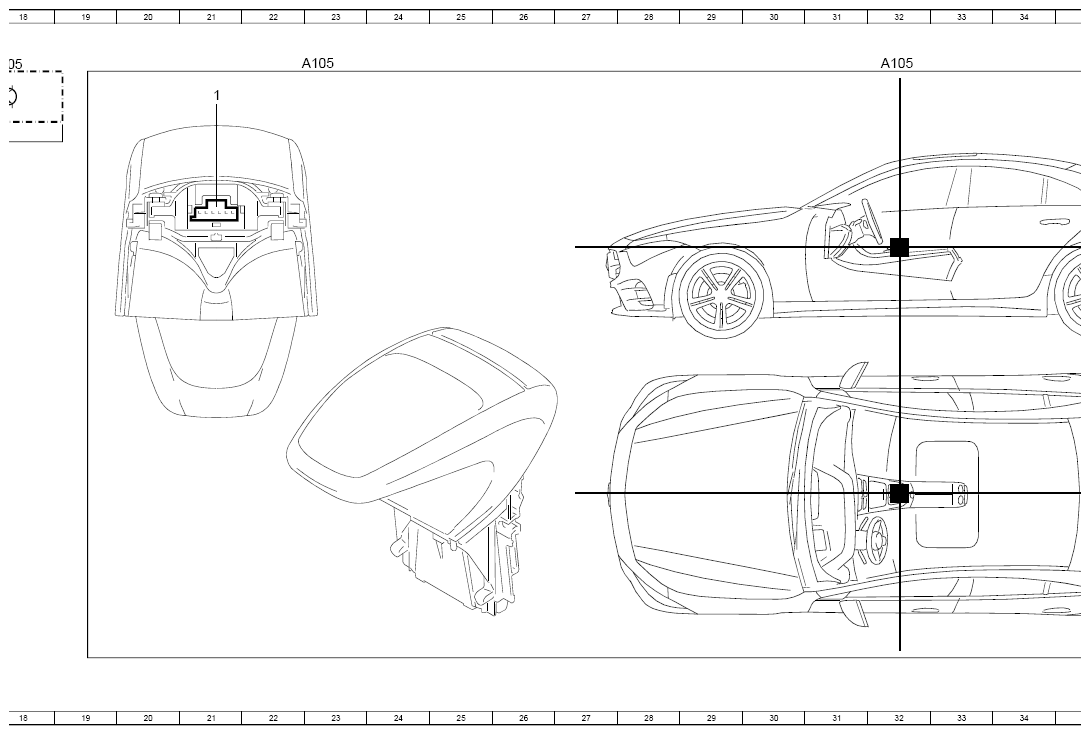

| A105 | Touchpad | 4A |
| A105 | Touchpad | 12A |
| A105 | Touchpad | 18A |
| A105 | Touchpad | 23A |
| A105 | Touchpad | 32A |
| A26/17 | Head unit | 16L |
| CAN A | Telematics CAN | 16K |
| F1/3 | Passenger-side A-pillar fuse box | 8L |
| F1/3MF3 | Multiple fuse 3 | 6K |
| W12 | Left center console ground point | 12L |
| W91 | Electromagnetic compatibility ground point (touchpad) | 11L |
| X138/1 | Front center console electrical connector | 6E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 15G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 16G |
