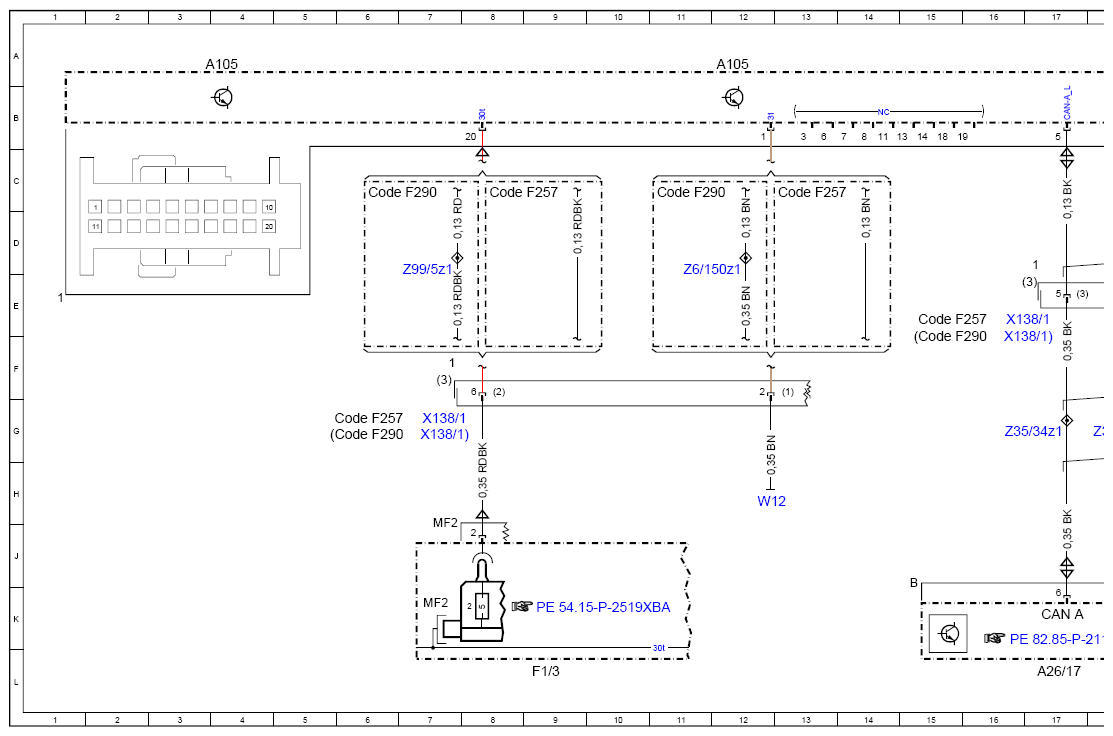

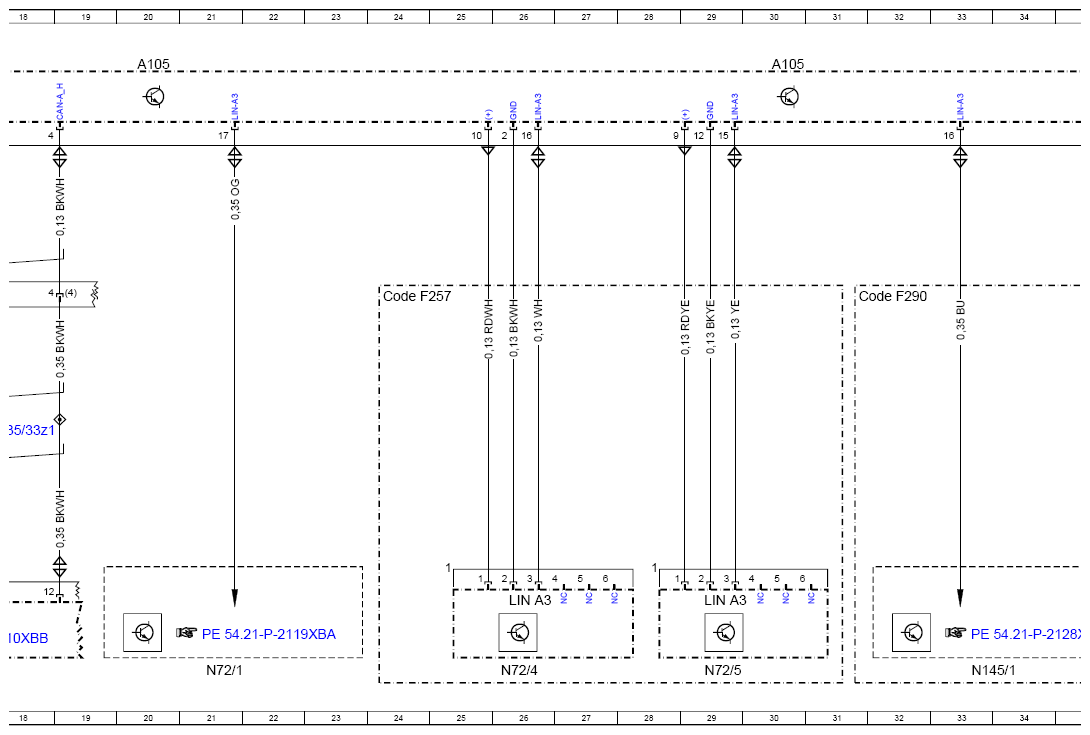

Wiring Diagram For Touchpad - PE82.00-P-2061-97XBA
Model 257, 290 up to model year 2021 with code 446 (Touchpad only) except code 448 (Touchpad) Touchpad A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |

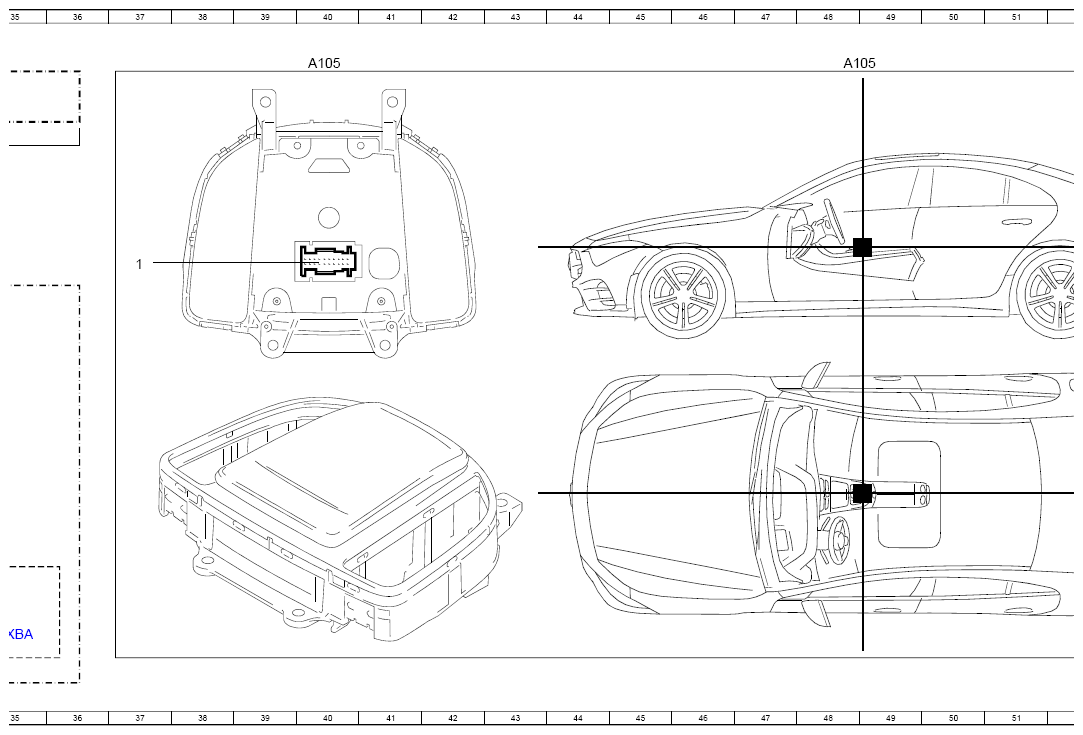

| A105 | Touchpad | 40A |
| A105 | Touchpad | 48A |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 12A |
| A105 | Touchpad | 20A |
| A105 | Touchpad | 30A |
| A26/17 | Head unit | 17L |
| CAN A | Telematics CAN | 17K |
| Code F257 | MODEL SERIES 257 | 13C |
| Code F257 | MODEL SERIES 257 | 24E |
| Code F257 | MODEL SERIES 257 | 6G |
| Code F257 | MODEL SERIES 257 | 8C |
| Code F257 | MODEL SERIES 257 | 15E |
| Code F290 | Model series 290 | 11C |
| Code F290 | Model series 290 | 31E |
| Code F290 | Model series 290 | 6G |
| Code F290 | Model series 290 | 6C |
| Code F290 | Model series 290 | 15F |
| F1/3 | Passenger-side A-pillar fuse box | 9L |
| F1/3MF2 | Multiple fuse 2 | 7K |
| LIN A3 | LCP LIN | 26K |
| LIN A3 | LCP LIN | 29K |
| N145/1 | Drive unit control unit | 33L |
| N72/1 | Upper control panel control unit | 21L |
| N72/4 | Left lower control panel | 26L |
| N72/5 | Right lower control panel | 29L |
| W12 | Left center console ground point | 12H |
| X138/1 | Front center console electrical connector | 7G |
| X138/1 | Front center console electrical connector | 7G |
| X138/1 | Front center console electrical connector | 17F |
| X138/1 | Front center console electrical connector | 17E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 18G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 17G |
| Z6/150z1 | Ground connection connector sleeve | 12D |
| Z99/5z1 | Terminal 30t connector sleeve | 7D |
