Check Electrical Wiring Harness In Steering Wheel - AR82.90-P-0101-01FRA
Model 213, 223, 238, 257, 297
with code L2B (Leather luxury steering wheel)
except code L5C (Supersport steering wheel - leather deep-embossed)
Model 223
with code L2D (Wood/leather multifunction steering wheel)
except code L5C (Supersport steering wheel - leather deep-embossed)

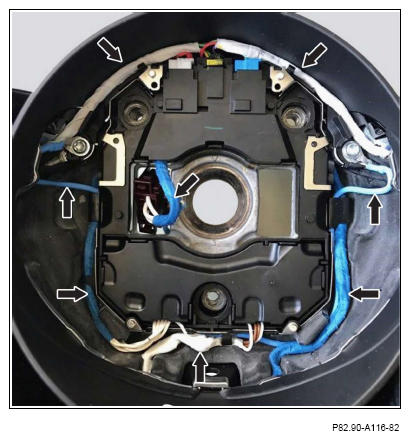

- Check for correct seating of electrical wiring harness (arrows) in steering wheel.
Line routing shown with code 266 (Distronic Plus cross-traffic support (DTR+Q))

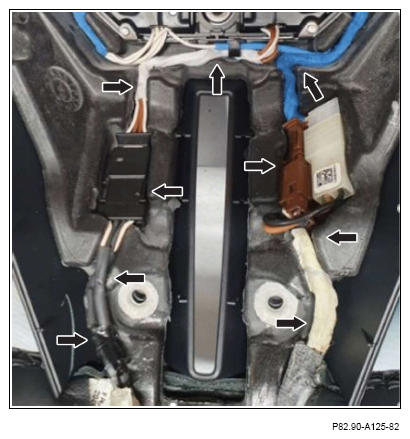

- Check for correct seating of electrical wiring harness (arrows) in lower area of steering wheel.
Line routing shown with code 266 (Distronic Plus cross-traffic support (DTR+Q))
