Note On Damage To Lamp Unit - AH82.10-P-0002-00LW
Model 118, 167, 177, 243, 247
Model 205, 206, 213, 223, 232, 238, 253, 257, 290, 293, 297

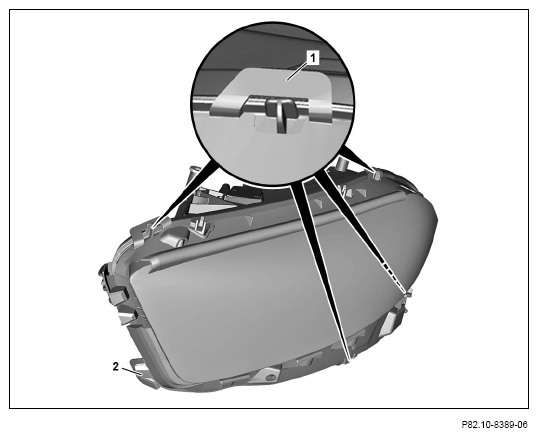

Shown on model 118, 167, 177, 247
Assessment of damage on left front lamp unit (E1) or right front lamp unit (E2)
Make sure that the retaining tabs (1) and guides (2) shown here do not exert any influence on proper operation. They are only relevant for assembly during vehicle production.
If the retaining tabs (1) are damaged, then the left front lamp unit (E1) or the right front lamp unit (E2) no longer need to be replaced.

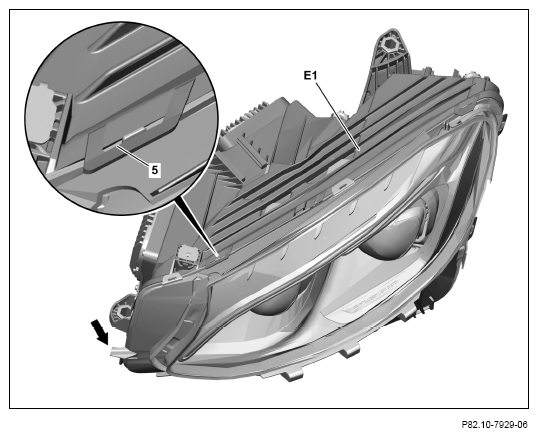

Shown on front left lamp unit (E1), model 205

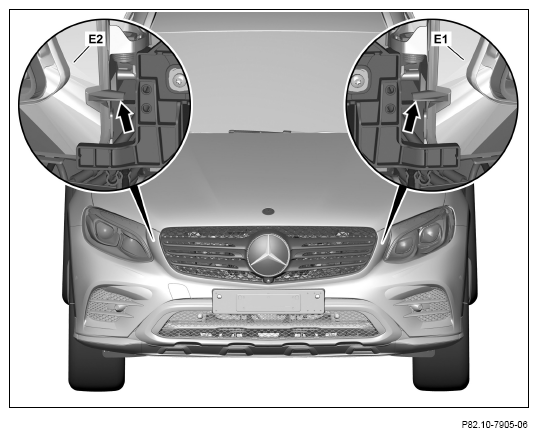

Shown on model 253
Assessment of damage on left front lamp unit (E1) or right front lamp unit (E2)
It should be noted that the guides shown here (arrows) do not exert any influence on proper operation. They are only relevant for assembly during vehicle production.
In the event of damage to the guides (arrows), it is not necessary to replace the left front lamp unit (E1) or the right front lamp unit (E2).
Model 206, 213, 223, 232, 238, 253, 257, 290, 293, 297 If there is damage to the retaining tabs (5), no replacement of the left front lamp unit (E1) or right front lamp unit (E2) is necessary.
