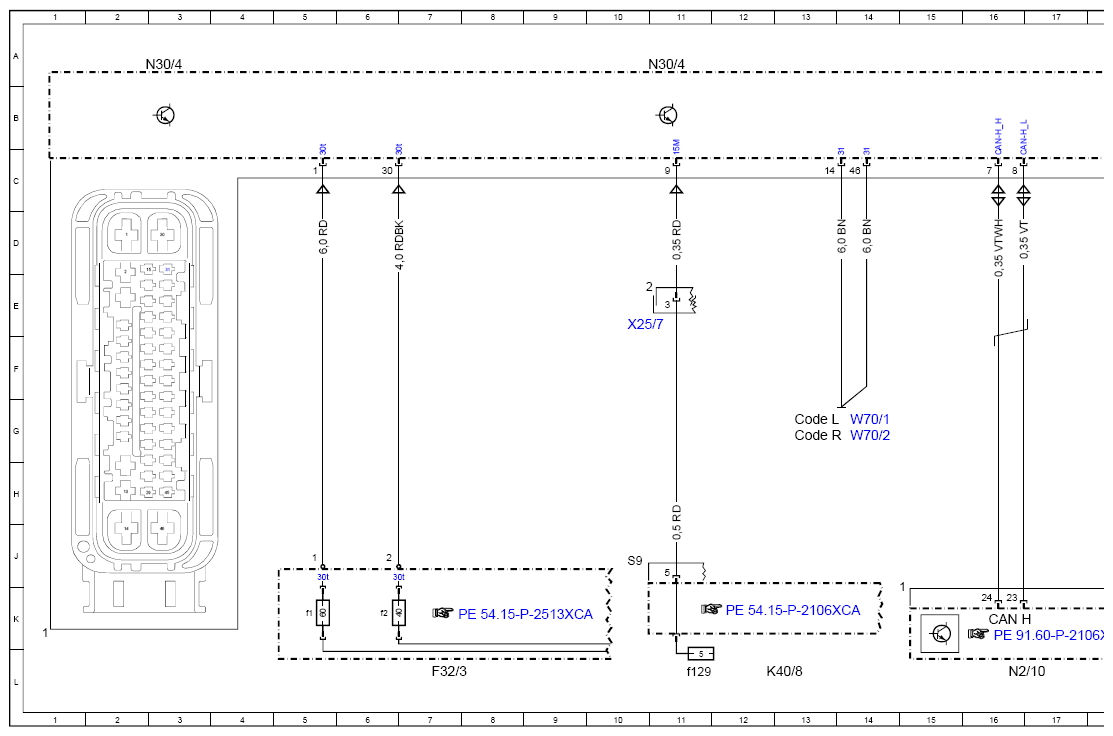

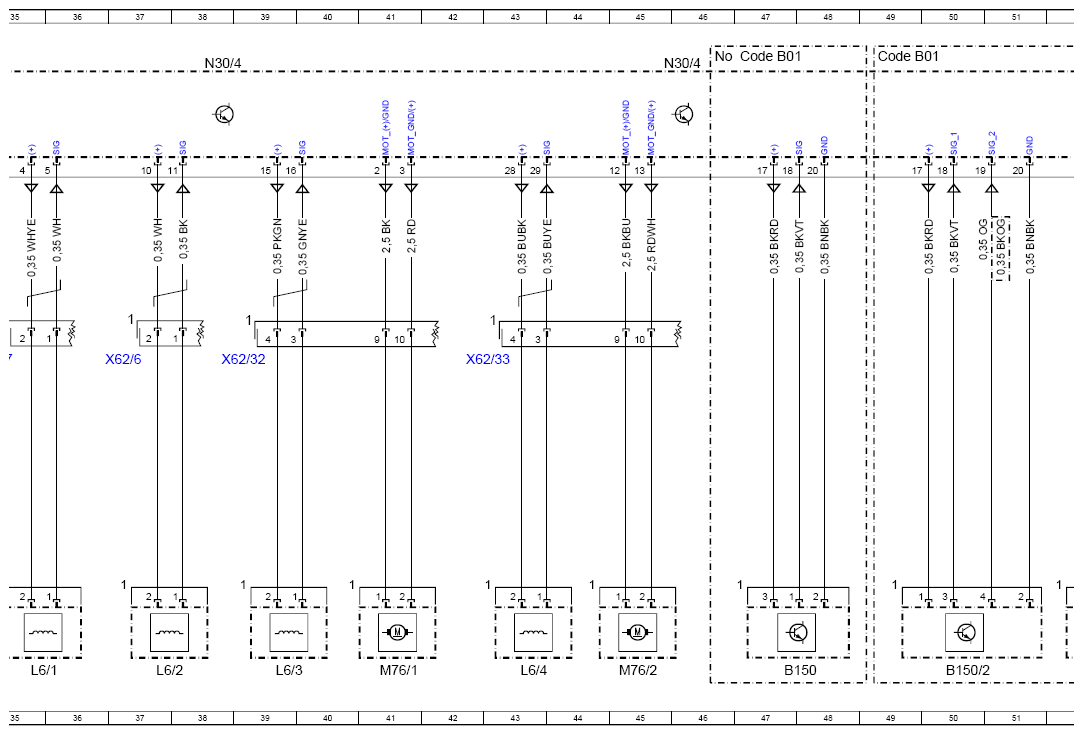

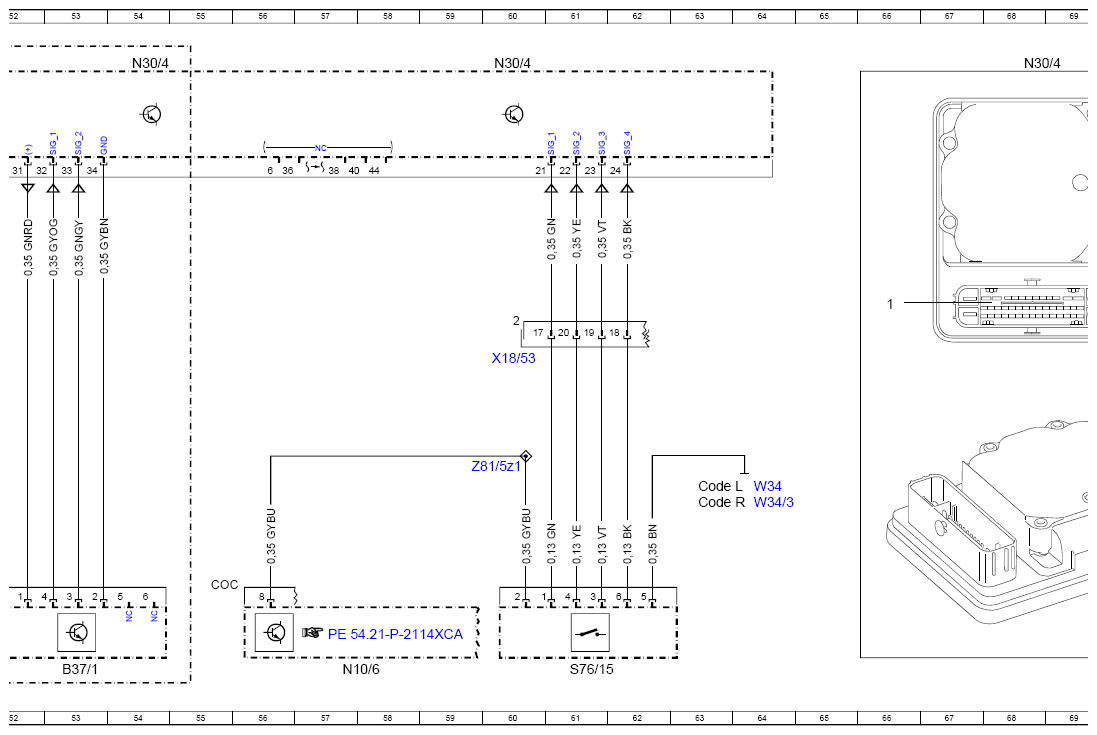

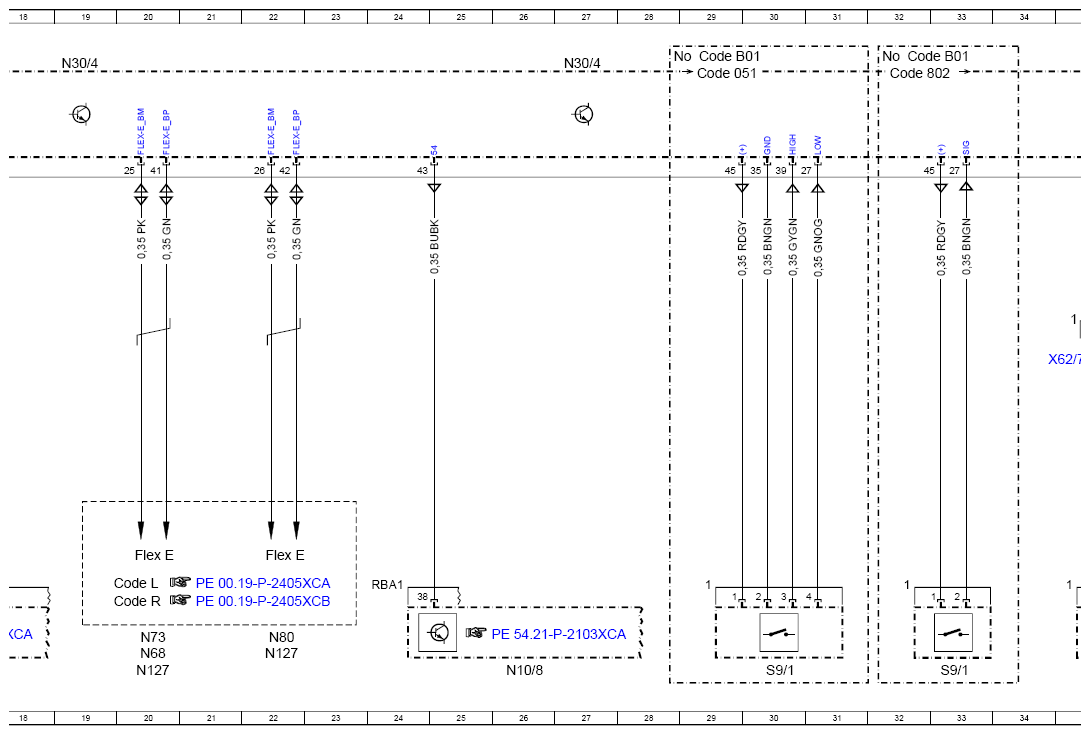

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97XCA
Model 257 as of model year 2021 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|

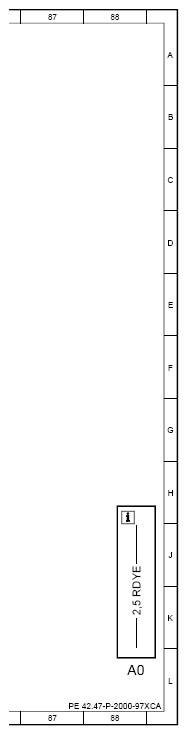

| A0 | Use of wiring diagrams | 88L |
| B150 | Brake vacuum sensor | 47L |
| B150/2 | Dual brake vacuum sensor | 50L |
| B37/1 | Pedal angle sensor | 53L |
| CAN H | Vehicle dynamics CAN | 16K |
| Code 051 | YoM 20/2 | 29A |
| Code 802 | YoM 21/1 | 32A |
| Code B01 | 48V technology | 49A |
| Code B01 | 48V technology | 47A |
| Code B01 | 48V technology | 29A |
| Code B01 | 48V technology | 32A |
| Code L | LEFT-HAND DRIVE | 13G |
| Code L | LEFT-HAND DRIVE | 19K |
| Code L | LEFT-HAND DRIVE | 63H |
| Code L | LEFT-HAND DRIVE | 71K |
| Code R | RIGHT-HAND DRIVE | 13G |
| Code R | RIGHT-HAND DRIVE | 19K |
| Code R | RIGHT-HAND DRIVE | 63H |
| Code R | RIGHT-HAND DRIVE | 71G |
| F32/3 | Engine compartment prefuse box | 7L |
| F32/3f1 | Fuse 1 | 5K |
| F32/3f2 | Fuse 2 | 6K |
| Flex E | Chassis FlexRay | 22J |
| Flex E | Chassis FlexRay | 20J |
| K40/8 | Engine fuse and relay module | 13L |
| K40/8f129 | Fuse 129 | 11L |
| L6/1 | Left front axle rpm sensor | 35L |
| L6/2 | Right front axle rpm sensor | 37L |
| L6/3 | Left rear axle rpm sensor | 39L |
| L6/4 | Right rear axle rpm sensor | 43L |
| M76/1 | Left electric parking brake actuator motor | 41L |
| M76/2 | Right electric parking brake actuator motor | 45L |
| N10/6 | Front SAM control unit | 57L |
| N10/8 | Rear SAM control unit | 26L |
| N127 | Drivetrain control unit | 22L |
| N127 | Drivetrain control unit | 20L |
| N2/10 | Supplemental restraint system control unit | 16L |

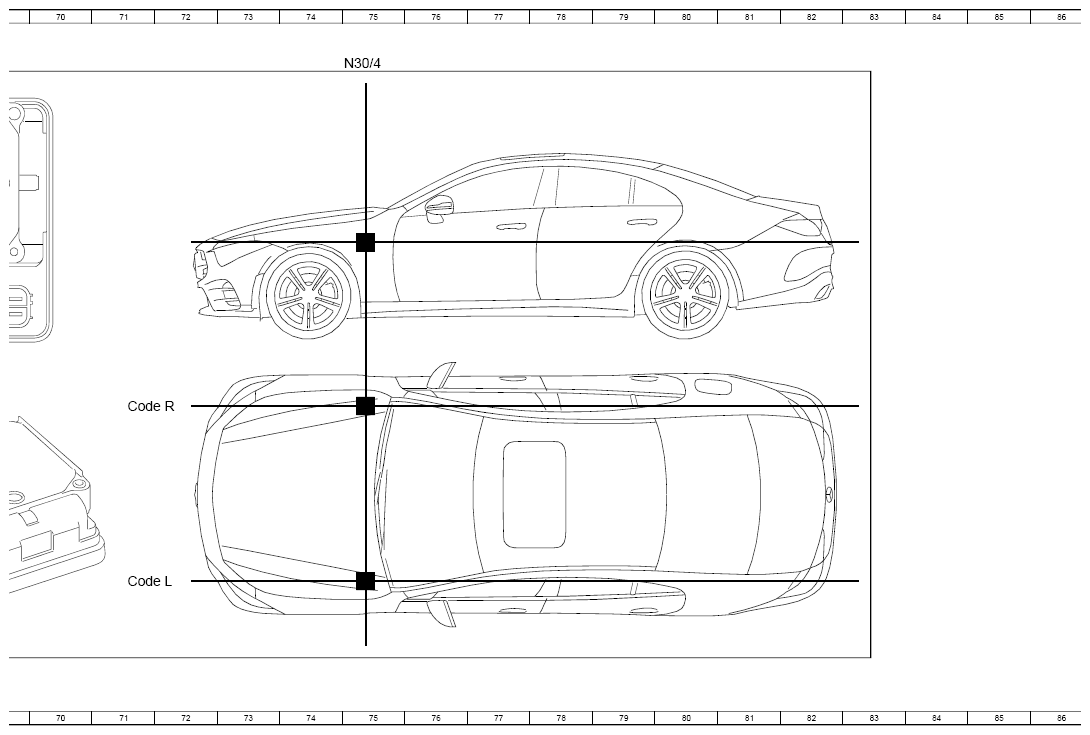

| N30/4 | Electronic Stability Program control unit | 60A |
| N30/4 | Electronic Stability Program control unit | 3A |
| N30/4 | Electronic Stability Program control unit | 11A |
| N30/4 | Electronic Stability Program control unit | 19A |
| N30/4 | Electronic Stability Program control unit | 27A |
| N30/4 | Electronic Stability Program control unit | 38A |
| N30/4 | Electronic Stability Program control unit | 54A |
| N30/4 | Electronic Stability Program control unit | 46A |
| N30/4 | Electronic Stability Program control unit | 68A |
| N30/4 | Electronic Stability Program control unit | 75A |
| N68 | Electrical power steering control unit | 20L |
| N73 | Electronic ignition switch control unit | 20K |
| N80 | Steering column module control unit | 22K |
| S76/15 | Electric parking brake switch | 61L |
| S9/1 | Stop lamp switch | 30L |
| S9/1 | Stop lamp switch | 33L |
| W34 | Left footwell ground point | 64H |
| W34/3 | Right footwell ground point | 64H |
| W70/1 | Left ESP® ground point | 14G |
| W70/2 | Right ESP® ground point | 14G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 60F |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 10E |
| X62/32 | Rear axle electrical connector, left distributor | 39F |
| X62/33 | Rear axle electrical connector, right distributor | 43F |
| X62/6 | Front axle electrical connector, right distributor | 37F |
| X62/7 | Front axle electrical connector, left distributor | 35F |
| Z81/5z1 | Circuit 58d connector sleeve | 60H |
