Remove/Install Brake Hose To Front Axle - AR42.10-P-0026FR
Model 257
Model 290
Shown on model 257 except code 489 (AIR BODY CONTROL)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service Brake is operated for the first time after repair work. | Before starting the engine, actuate Brake pedal several times until pressure is built up and maintained in the Brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing Brake fluid. Risk of injury from skin and eye contact with Brake fluid | Only pour Brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling Brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on handling, transport and storage of composite Brake disks | AH42.10-P-9406-12LF | |
| Topical note | Notes on handling, transport and storage of ceramic Brake disks | AH42.10-P-9406-13A | |
| Topical note | Notes on repairs to Brake system | AH42.00-P-0003-01A | |
| Topical note | Notes on installing Brake hoses | AH42.10-P-9406-01LWO | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front wheel. | AR40.10-P-1102A | |

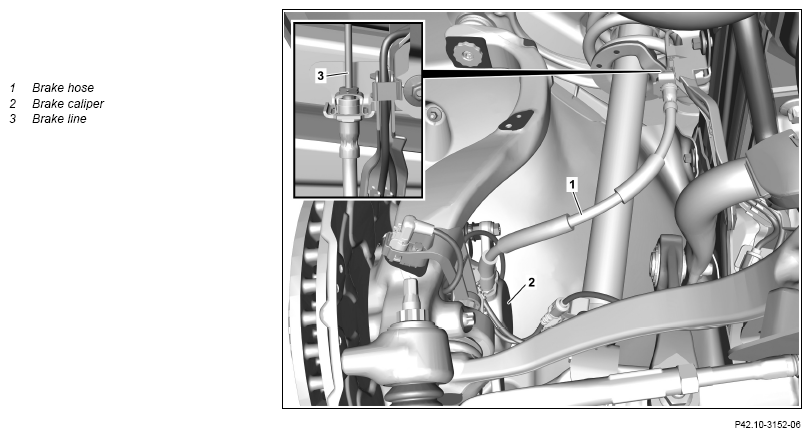

| 2 | Detach Brake line (3) from Brake hose (1) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping Brake fluid. |
|
| *BA42.10-P-1001-04P | |||
| Fig 3 | |||
| Fig 4 | |||
| 3 | Remove Brake hose (1) from steering knuckle | Model 290 | |
| 4 | Remove Brake hose (1) from suspension strut | ||
| 5 | Remove Brake hose (1) from Brake caliper (2) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping Brake fluid. |
|
| *BA42.10-P-1002-04P | |||
| Fig 2 | |||
| Fig 4 | |||
| 6 | Install in the reverse order. | ||
| 7 | Bleed Brake system. | AR42.10-P-0010FR |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 257 | Model 290.658/659/661 except code B07/U69 | |
|---|---|---|---|---|
| BA42.10-P-1001-04P | Retaining screw, Brake line to Brake hose | Nm | 14 | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 290.658/659/661 with code B07/U69, model 290.679/688/689 | |
|---|---|---|---|
| BA42.10-P-1001-04P | Retaining screw, Brake line to Brake hose | Nm | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 257 | Model 290.658/659/661 except code B07/U69 | ||
|---|---|---|---|---|---|
| BA42.10-P-1002-04P | Brake hose to Brake caliper | Front axle | Nm | 24 | 24 |
| Rear axle | Nm | 42 | 42 | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 290.658/659/661 with code B07/U69, model 290.679/688/689 | ||
|---|---|---|---|---|
| BA42.10-P-1002-04P | Brake hose to Brake caliper | Front axle | Nm | 24 |
| Rear axle | Nm | 16 | ||
