Remove/Install Brake Hose At Rear Axle - AR42.10-P-0023FR
Model 257
Shown except code 489 (AIR BODY CONTROL)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service Brake is operated for the first time after repair work. | Before starting the engine, actuate Brake pedal several times until pressure is built up and maintained in the Brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing Brake fluid. Risk of injury from skin and eye contact with Brake fluid | Only pour Brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling Brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on repairs to Brake system | AH42.00-P-0003-01A | |
| Topical note | Notes on installing Brake hoses | AH42.10-P-9406-01LWO | |
| Topical note | Notes on handling, transport and storage of composite Brake disks | AH42.10-P-9406-12LF | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove/install | |||
| 1 | Remove corresponding rear wheel | AR40.10-P-1102A | |
| 2 | Detach Brake line (3) from Brake hose (1) | Seal connections immediately. Otherwise damage can be caused by escaping Brake fluid. |
|
| *BA42.10-P-1001-04P | |||

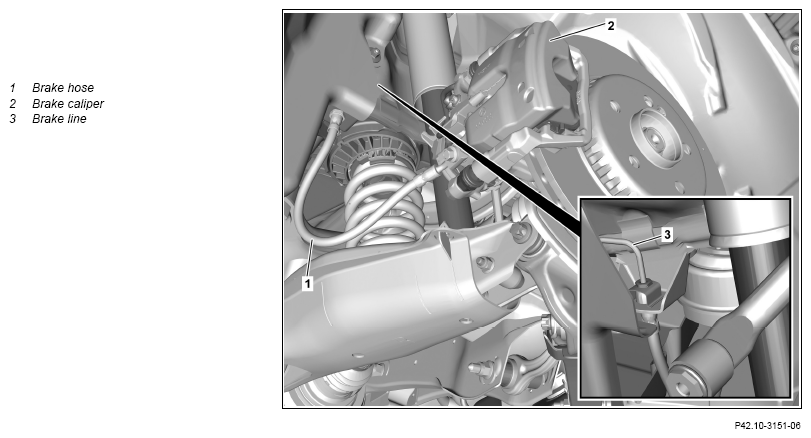

| Fig 3 | |||
| Fig 2 | |||
| 3 | Unscrew banjo bolt from Brake caliper (2) and take off Brake hose (1) | Immediately seal off connection on Brake caliper (2). Otherwise damage can be caused by escaping Brake fluid. |
|
| *BA42.10-P-1002-04P | |||
| Fig 2 | |||
| 4 | Install in the reverse order | ||
| 5 | Bleed Brake system | AR42.10-P-0010FR |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 257 | |
|---|---|---|---|
| BA42.10-P-1001-04P | Retaining screw, Brake line to Brake hose | Nm | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 257 | ||
|---|---|---|---|---|
| BA42.10-P-1002-04P | Brake hose to Brake caliper | Front axle | Nm | 24 |
| Rear axle | Nm | 42 | ||
