Carrying Out Bleeding Operation - AR42.10-P-0010-02FR

Model 206

Model 223

Model 232

Model 257

Model 290

Model 295

Model 297

	Risk of poisoning  from swallowing Brake fluid. Risk of injury  from skin and eye contact with Brake fluid	Only pour Brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling Brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on handling, transport and storage of ceramic Brake disks		AH42.10-P-9406-13A
Notice	Notes on handling, transport and storage of composite Brake disks		AH42.10-P-9406-12LF
Notice	Notes on repairs to Brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	000 588 01 82 00 Filling unit		WS25.00-P-0016B

Courtesy of MERCEDES-BENZ USA

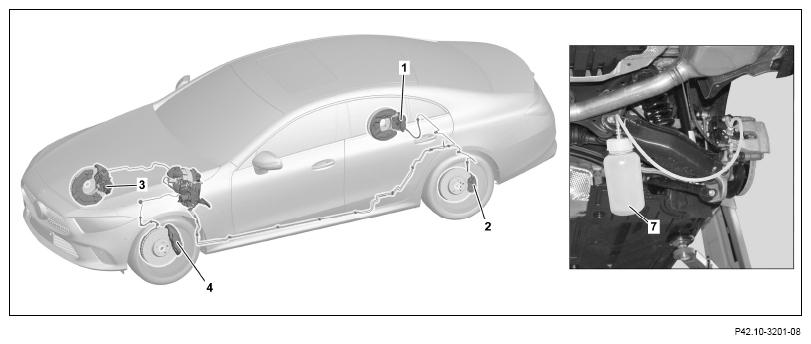

Shown on model 257

1. Adjust Bleed pressure at filling unit to 2.0 bar.
2. Remove caps for Bleed screws on Brake calipers (1, 2, 3, 4).

   Model 206

   with code B06 (Silver Brake calipers)

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   Model 206

   with code B07 (AMG - ceramic Brake system)

   Model 206

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   with code U70 (red-painted Brake callipers)

   Model 232

   Model 290

   with code B07 (AMG - ceramic Brake system)

   Two Bleed screws are located on the front Brake calipers (3, 4).

3. Connect Bleed hose of Bleed bottle (7) to Bleed screw of Brake caliper (1).
4. Open Bleed screw.
5. 1. When Bleeding the hydraulic system of the brake

      system after the hydraulic system has been opened for repair purposes.

      Fully depress Brake pedal several times in succession until new Brake fluid exits free of bubbles at the Bleed screw.

      To Bleed the Brake system correctly it is absolutely essential to pump the Brake pedal throughout the entire Bleeding process.

      Otherwise, Brake system malfunctions and a failure of the Brake system may occur due to remaining residual air.

      Do not pump the Brake pedal in a jerking manner but instead release it slowly.

      Otherwise, air will be drawn in.

      The Bleed screw can remain open throughout the entire pumping procedure. Total quantity of Brake fluid required: approx. 1.5 l.

   2. When replacing the Brake fluid, if the hydraulic system for the Brake system was not opened beforehand for repair purposes.

      Keep Bleed screw open until the Brake fluid flows out.

      Pumping of the Brake pedal is not necessary. Required total quantity of Brake fluid: Approx. 0.75 l.

6. Close Bleed screw. Model 232

   Model 232

   Model 295.

   Model 297

   Model 223 (except 223.182)

   except code Z07 (B7 armoring on special protection version)

   Model 223 (except 223.182)

   with code Z07 (B7 armoring on special protection version)

   Model 223.182

   Model 223

   except code Z07 (B7 armoring on special protection version)

   Model 223

   with code Z07 (B7 armoring on special protection version)

   Model 295

   Model 297

   Model 257

   Model 290

   Model 257

   Model 290

   Model 206 with engine 139

   except code M005 (Vehicles with 4MATIC/all-wheel drive)

   Model 206 with engine 139

   with code M005 (Vehicles with 4MATIC/all-wheel drive)

   Model 206 with engine 254, 654

   Model 206

7. Disconnect Bleed hose of Bleed bottle (7) from Bleed screw (1) of Brake caliper.
8. Repeat operation steps 3 to 7 successively on the Brake calipers (2, 3, 4).

   Model 206

   with code B06 (Silver Brake calipers)

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   Model 206

   with code B07 (AMG - ceramic Brake system)

   Model 206

   with code ME10 (Hybrid vehicle (plug-in, PHEV))

   with code U70 (red-painted Brake callipers)

   Model 232

   Model 290

   with code B07 (AMG - ceramic Brake system)

   On the Brake calipers (3, 4), firstly open the vent screw that is located directly next to the Brake hose. Then open the outer vent screw.

9. Fit caps for Bleed screws on Brake calipers (1, 2, 3, 4).
