Remove/Install Pyrofuse - AR54.10-P-1180FR
Model 257, 290
with code B01 (48V technology)
Model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

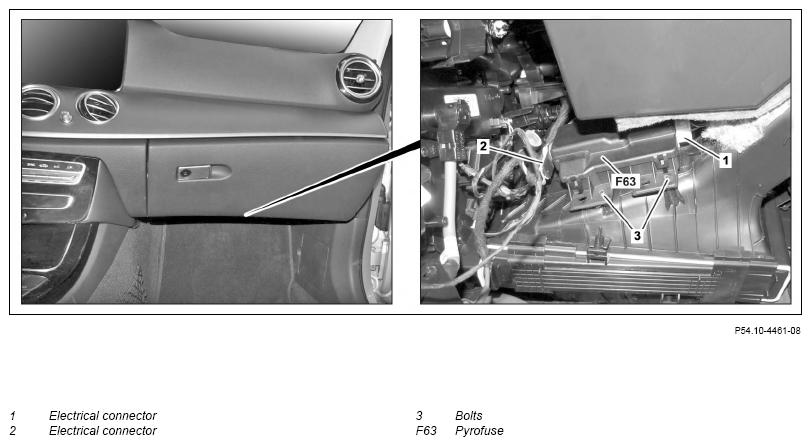

Shown on model 257 with code B01 (48V technology)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on safety-relevant components | AH00.00-Z-0019-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove trim below instrument panel on passenger side. | AR68.10-P-1502FR | |
| 2 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003FR | |
| 3 | Remove screw/bolts (3). | ||
| 4 | Pull pyrofuse (F63) downwards until electrical connectors (1, 2) are accessible. | ||
| 5 | Release and disconnect electrical connectors (1, 2). | ||
| 6 | Remove pyrofuse (F63). | ||
| 7 | Install in the reverse order. |
