Remove/Install Fuse Box In Vehicle Interior On Front Passenger Side - AR54.15-P-1312FR

Model 257

Model 290

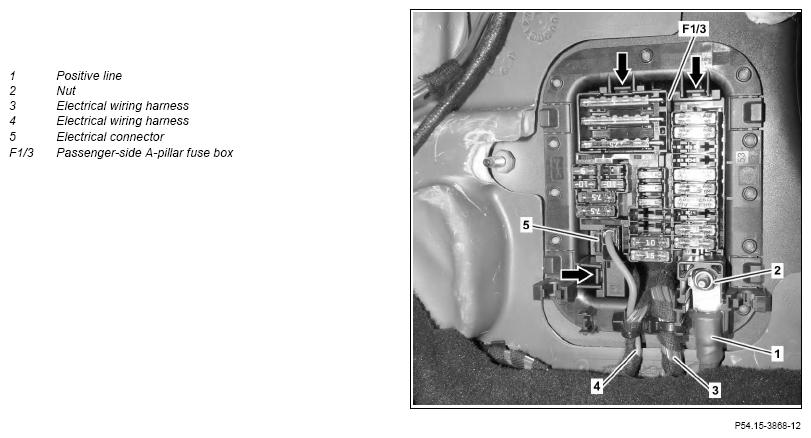

Fig 1: Front Passenger Side Interior Fuse Box Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003FR
2	Remove door sill on front passenger side
3	Remove positive line (1).	Nut (2) remains on electric line (1).
		Nut, positive line to vehicle interior prefuse box	BA54.15-P-1004-01K
4	Expose electrical wiring harnesses (3, 4).	Replace cable ties.
5	Disconnect electrical connector (5).
6	Unclip fuse box on front passenger side A-pillar (F1/3) (arrows).	Extraction hook	Fig 4
7	Pull electrical fuses out of fuse box on front passenger side A-pillar (F1/3).
	Assignment of passenger-side A-pillar fuse box		GF54.15-P-1256-48FR
		Pay attention to the fuse assignment.
		The number of fuses can vary depending on the equipment installed.

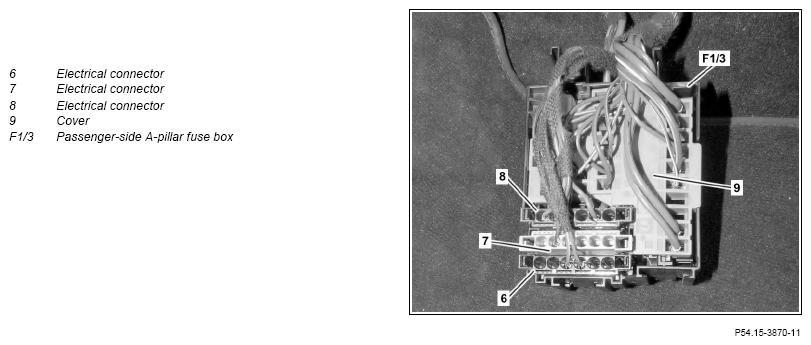

8	Disconnect electrical connectors (6, 7, 8).
9	Unplug electric lines in area of cover (9) from fuse box on front passenger side A-pillar (F1/3).	The number of electrical connectors may vary depending on the equipment.
		Wiring harness repair kit basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
10	Remove fuse box on front passenger side A-pillar (F1/3).
11	Install in the reverse order.

FUSE AND RELAY BOX

Number	Designation			Model 257	Model 290
BA54.15-P-1004-01K	Nut, positive line to vehicle interior prefuse box	M6	Nm	8	8
		M8	Nm	16	16

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
