Remove/Install Driver's Side Fuse And Relay Module - AR54.15-P-0003FR

Model 257, 290

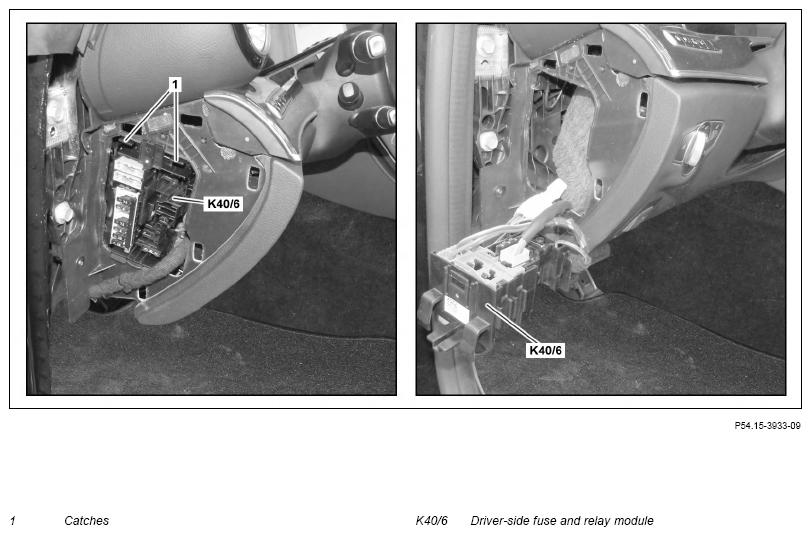

Fig 1: Driver's Side Fuse And Relay Module Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003FR
2	Remove instrument panel cover on driver's side.	Clip remover	Fig 2
3	Release fuse and relay module on driver's side (K40/6) at catches (1) and remove.
4	Disconnect all electrical connectors from fuse and relay module on driver's side (K40/6).	The number of electrical connectors may vary depending on the equipment.
5	Unclip all fuse holders from fuse and relay module on driver's side (K40/6) and place to one side.
6	Remove fuse and relay module on driver's side (K40/6).
7	Change fuses and relays.	When replacing fuse and relay module on driver's side (K40/6).
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
8	Install in the reverse order
