Remove/Install Audio/Comand Control Panel - AR54.21-P-0504FR
Model 257
except code 446 (Touchpad only)
Shown with code 448 (Touchpad)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of Audio/COMAND control panel (A40/9) | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove center console cover (1) | AR68.20-P-2350FR | |
| 3 | Separate electrical connectors (2) | ||
| 4 | Disconnect electrical connection (3) | ||
| 5 | Remove screws (4) | ||

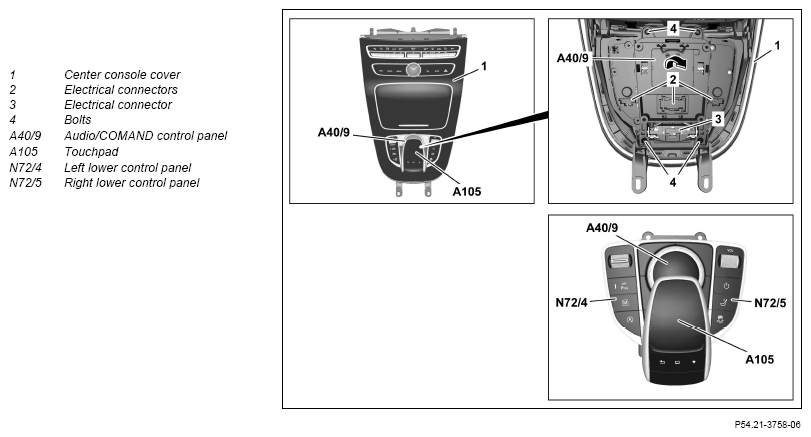

| 6 | Remove Audio/COMAND control panel (A40/9) from center console cover (1) in the direction of the arrow | ||
| 7 | Remove touch pad (A105) | When replacing the Audio/COMAND control panel (A40/9). Model 257 with code 448 (Touchpad) except code 446 (Touchpad only) |
AR54.21-P-0503FR |
| 8 | Remove left lower control panel (N72/4) and right lower control panel (N72/5) | When replacing the Audio/COMAND control panel (A40/9). | AR54.25-P-0005FR |
| 9 | Install in the reverse order |
