Remove/Install 12V Socket At Front Of Vehicle Interior - AR54.10-P-1003FR

Model 257

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

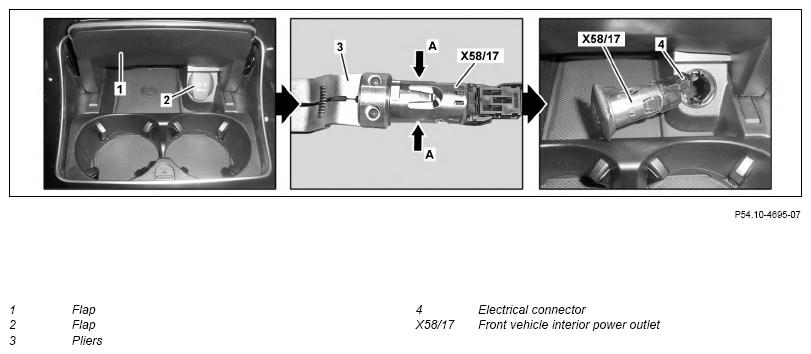

2	Open flap (1)
3	Open flap (2) on vehicle interior socket at front (X58/17)
4	Unlatch vehicle interior socket at front (X58/17) using pliers (3) and pull out until the electrical connector (4) is accessible	The studs of the pliers (3) must engage in the cutouts of the housing of the vehicle interior socket at the front (X58/17) (arrows A). Align the flap (2).
		Pliers	Fig 1
5	Detach electrical connector (4) and remove vehicle interior socket at front (X58/17)
6	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
