Remove/Install Handle On Roof - AR68.30-P-4330FR
Model 257

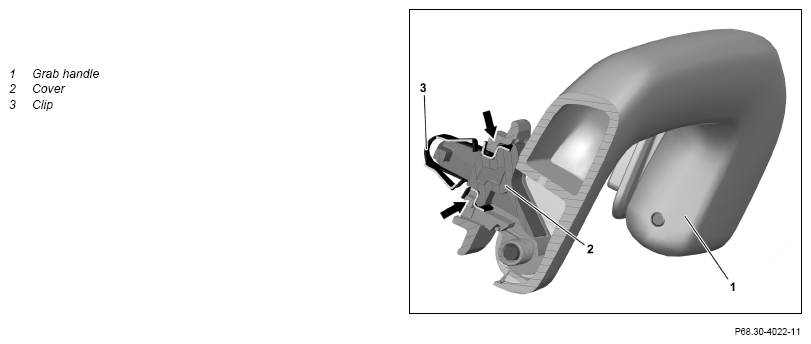

Shown on front grab handle (1)
Shown on front grab handle (1)
| Remove | |||
| 1 | Remove covers (2) | ||
| 2 | Press clips (3) together and remove grab handle (1) | ||
| 3 | Release and disconnect electrical connector of rear illumination at grab handle (1) | Only at rear grab handle (1). | |
| 4 | Remove clips (3) from body | ||
| Install | |||
| 5 | Clip clips (3) and covers (2) into grab handle (1) | ||
| 6 | Connect electrical connector of rear illumination at grab handle (1) | Only at rear grab handle (1). | |
| 7 | Clip grab handle (1) into roof | ||
| Check | |||
| 8 | Check that grab handle (1) is correctly seated on roof | AR68.30-P-4330-01FR |
