Remove/Install Guide Rail For Panoramic Sliding Sunroof - AR77.21-P-0432MFA
Model 118, 177
with code 413 (Panoramic sliding sunroof/glass roof)

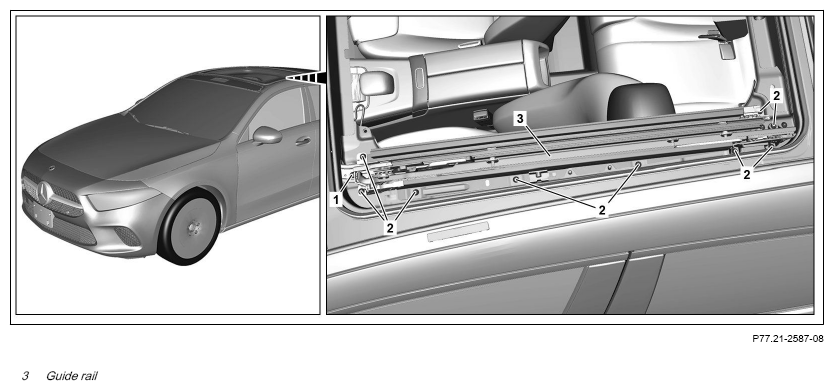

Shown on model 177.0 with code 413 (panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove panoramic roof roller sunblind drive cable. | AR77.21-P-0230MFA | |
| 2 | Remove panoramic sliding sunroof drive unit (M12). | AR77.21-P-6995MFA | |
| 3 | Remove guide rail (3) with panoramic sliding sunroof drive cable from vehicle. | ||
| 4 | Install in the reverse order. | ||
| Normalizing | |||
| 5 | Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06MFA |
