Install Front Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0803-05MFA
Model 118, 177
with code 413 (Panoramic sliding sunroof/glass roof)
| Topical note | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
- Close panoramic sliding sunroof.

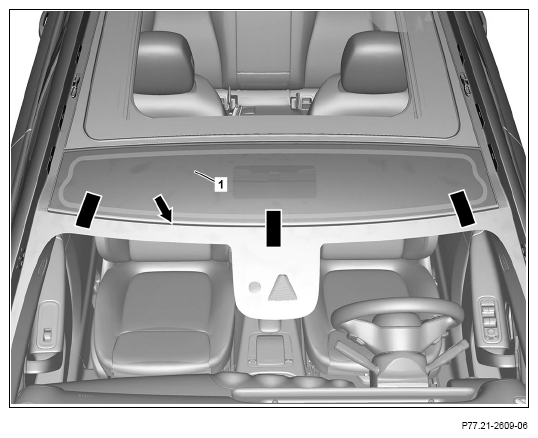

- Mount front stationary element (1) on body.
Helper required.
Observe installation position of windshield seal (arrow).
- Align front stationary element (1) according to tape strips.
Do not move vehicle for at least 3 h after gluing in front stationary element (1).
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
- Put loads on front stationary element (1) during curing time of adhesive.
Otherwise the front stationary element (1) can be damaged.
