Apply Adhesive Material For Panoramic Sliding Roof Frame - AR77.21-P-0801-04MFA

Model 118, 177

with code 413 (Panoramic sliding sunroof/glass roof)

	Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
	000 588 02 72 00 Sealing and corrosion protection gun		WS97.00-P-0003B

Fig 1: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

Bonding surfaces must be free from dust, oil, grease, wax, dirt residues and other adhesive components.

Otherwise, there may be adhesion problems.

Use only the repair kit specified in the EPC.

1. Open adhesive cartridges and insert in sealing and corrosion protection gun.



   To press out the remaining residual quantities in the adhesive cartridges, insert adapters in adhesive cartridges and plates at push rods of sealing and corrosion protection gun.

2. Actuate sealing and corrosion protection gun until the level in the adhesive cartridges is compensated.



   Both adhesive components should exit from openings in adhesive cartridges.

3. Install mixing tube on adhesive cartridges.

   Courtesy of MERCEDES-BENZ USA

4. Ensure a uniform premixing of the adhesive components; for this purpose, press out and discard two mixing tube lengths.
5. Mix one additional measuring tube length for reference.

   During processing breaks ≥ 15 min, purge mixing tube by pressing out adhesive material or replace mixing tube taking into account operation step 4. The strength of the adhesively bonded connection is otherwise reduced and the required adhesion of the adhesive material is not ensured.



   The reference adhesive bead serves for checking and/or confirming the adhesive curing of the adhesively bonded connection before the vehicle is moved for the first time after the gluing in of the panoramic sliding sunroof frame (1).

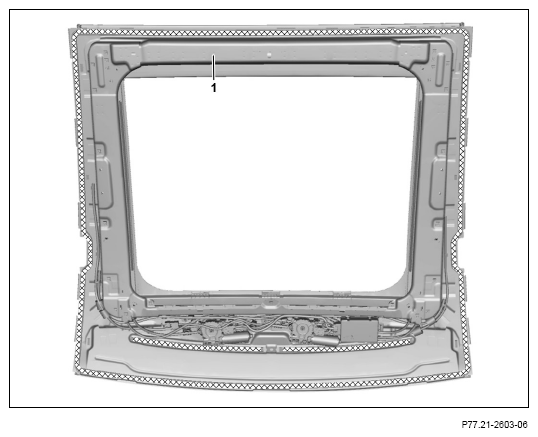

6. Apply adhesive material uniformly on bonding surfaces at panoramic sliding sunroof frame (1).

   Apply adhesive material within 25 min and position and fix in place panoramic sliding sunroof frame (1) within max. 15 min on the body flange. The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.



   Apply adhesive material in the form of an adhesive bead with a height of approx. 14 mm and a width of approx. 8 to 10 mm. Immediately remove soiling caused by adhesive.
