Apply Adhesive Material For Front Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0803-04MFA

Model 118, 177

with code 413 (Panoramic sliding sunroof/glass roof)

	Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
	000 588 02 72 00 Sealing and corrosion protection gun		WS97.00-P-0003B

Fig 1: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

Bonding surfaces must be free from dust, oil, grease, wax, dirt residues and other adhesive components.

Otherwise, there may be adhesion problems.

Only use repair kit specified in XENTRY Portal parts information.

1. Open adhesive cartridges and insert in sealing and corrosion protection gun.



   To press out the remaining residual quantities in the adhesive cartridges, insert adapters in adhesive cartridges and plates at push rods of sealing and corrosion protection gun.

   Courtesy of MERCEDES-BENZ USA

2. Cut application nozzle so that the adhesive bead can be applied with a height of 14 mm and a width of 8 to 10 mm.



   The height of adhesive bead must be 3 mm when installed.

3. Install application nozzle on adhesive cartridge.
4. Fabricate reference adhesive bead.



   The reference adhesive bead is used to check and confirm the adhesive curing of the adhesively bonded connection before moving the vehicle for the first time after gluing in the front stationary element (1).

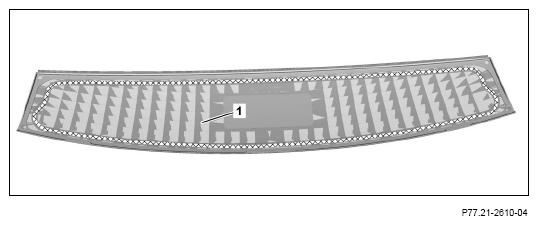

5. Apply adhesive material evenly on the bonding surfaces on the panoramic sliding sunroof frame.

   Apply adhesive material as quickly as possible and position front stationary element (1) on the panoramic sliding sunroof frame and fix it in place as quickly as possible.

   Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.



   Apply adhesive material in the form of an adhesive bead with a height of approx. 14 mm and a width of approx. 8 to 10 mm.



   Immediately remove soiling caused by adhesive.
